Kramer Electronics Ltd.
DSP-62-AEC, DSP-62-UC – Processing Audio Signals
23
The minimum USB input audio frequency is 44.1Khz (44100 HZ).
Audio parameters are adjusted.
Adjusting HDMI Digital Input Parameters
The HDMI input signal settings include an HDMI selection drop-down box and a mute button
(but no pre and post volume settings since the signal is not processed).
See Input / Output Channels Operation on page 19 to understand the function of the slider.
To adjust the digital HDMI input parameters:
1. In the Navigation pane, click DSP. The DSP (Main) page appears.
2. Click HDMI L/R. The HDMI Left & Right input processing page appears.

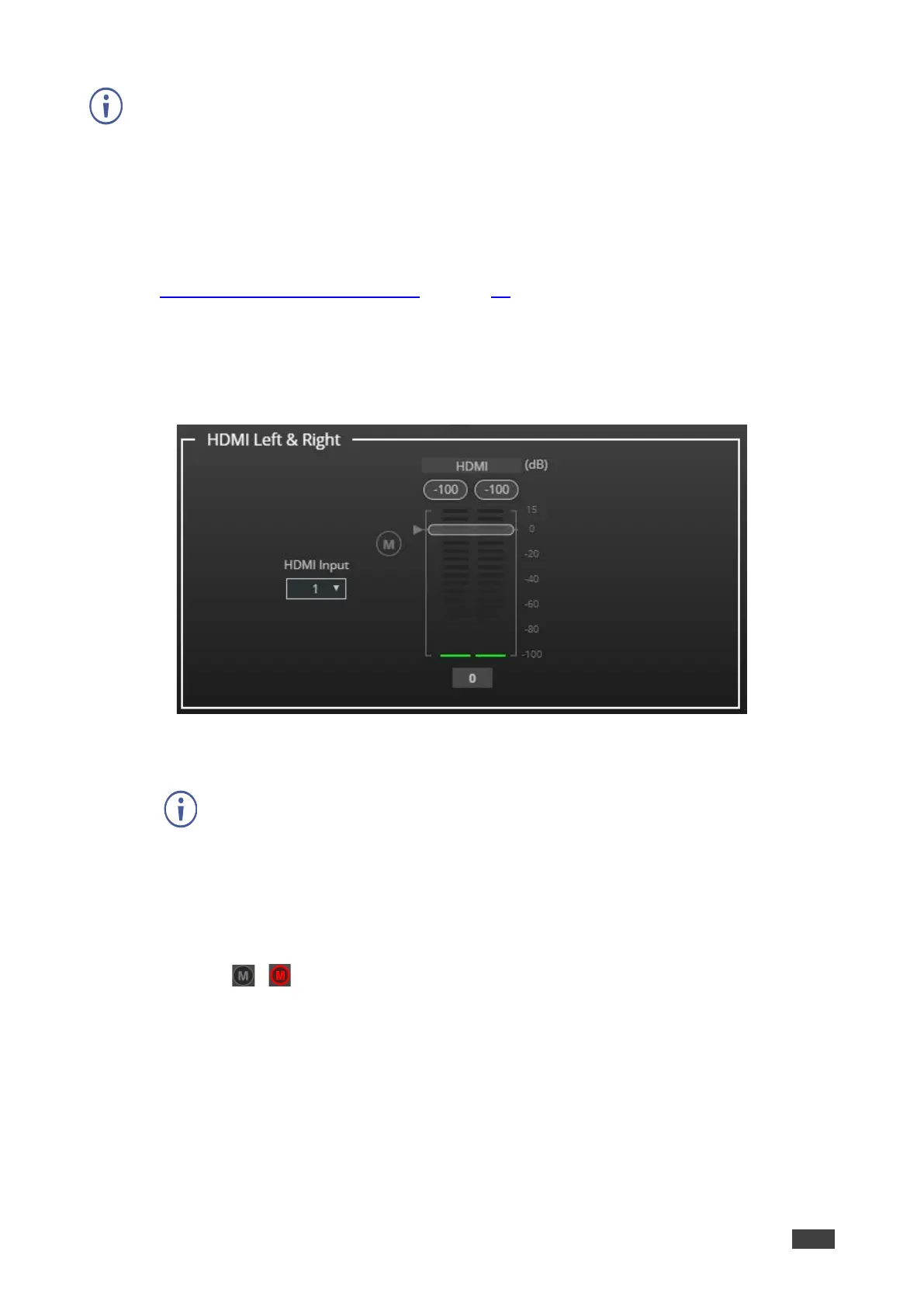

Figure 26: Processing View – Processing HDMI Digital Input
3. Select the HDMI input (1 or 2).
Only one HDMI port can be active at a time.
4. Perform the following actions:
▪ Change port name.
▪ Move the volume fader to set the left and right audio levels (both sliders are
identical).
▪ Click / to mute / unmute the input audio, respectively.
HDMI audio parameters are adjusted.
