DSP-62-AEC, DSP-62-UC – Processing Audio Signals
Using Gain Module
1. In the Navigation pane, click DSP. The DSP (Main) page appears.
2. Click Gain. The button turns violet and the Gain processing page appears.

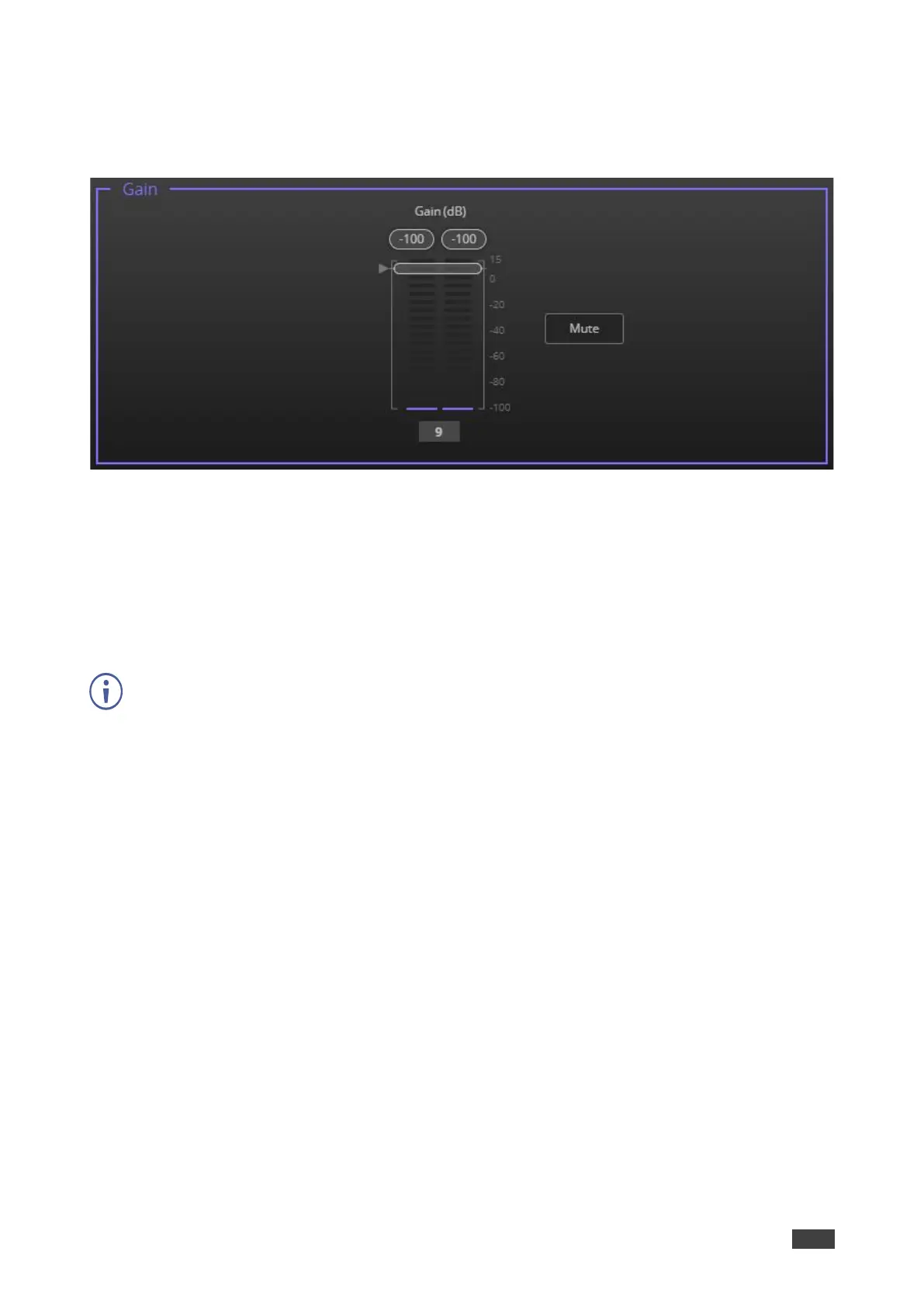

Figure 32: Processing View – Gain Module
3. Perform the following actions:
▪ Set gain.
▪ Click Mute if required.
Gain is adjusted.
Using AEC
Before enabling AEC, make sure to disable AEC in the software you are using (if it includes
this feature).
The AEC (Acoustic Echo Cancellation) module is a learning filter algorithm that, when
enabled, filters the unwanted echoes in the room, such as room speakers.
To enable/disable AEC delay:
1. In the Navigation pane, click DSP. The DSP (Main) page appears.
To Next Page
