Setting Cross-Point Volume
Set the cross-point volume separately for each in-out connection.
To set the cross-point volume:
1. In the Navigation pane, click Matrix. The Matrix page appears.
2. Click the volume area (0dB, by default). The volume window appears.

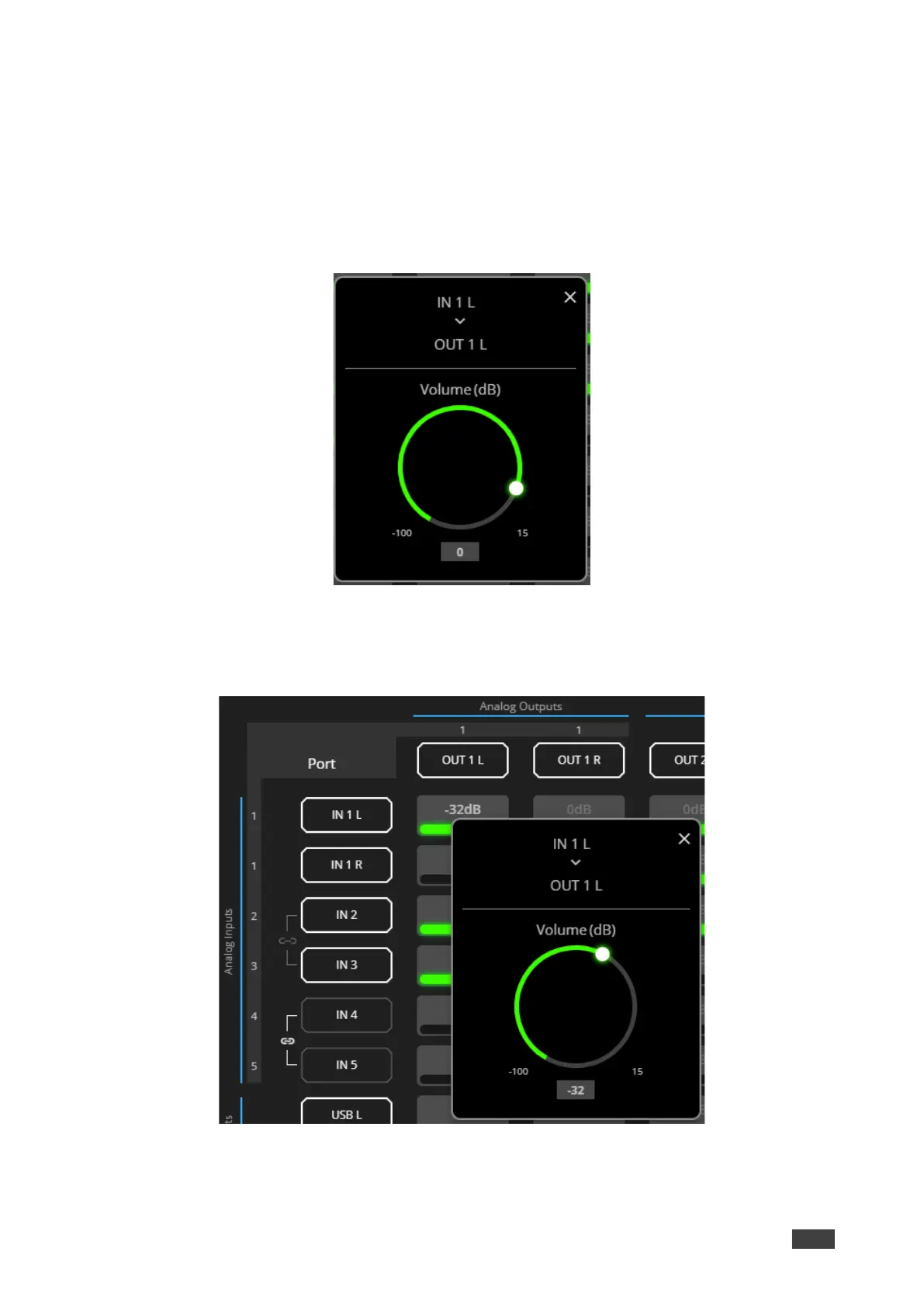

Figure 40: Matrix Page – Setting Cross-Point Volume
3. Set the cross-point volume using the knob or enter the value and pressing Enter (on
your keyboard). The cross-point volume is set and appears at the cross-point.
Figure 41: Cross-Point Volume Value
Audio volume is set at the cross-point.
