6
4 Defining the SID-X2N Step-in Commander

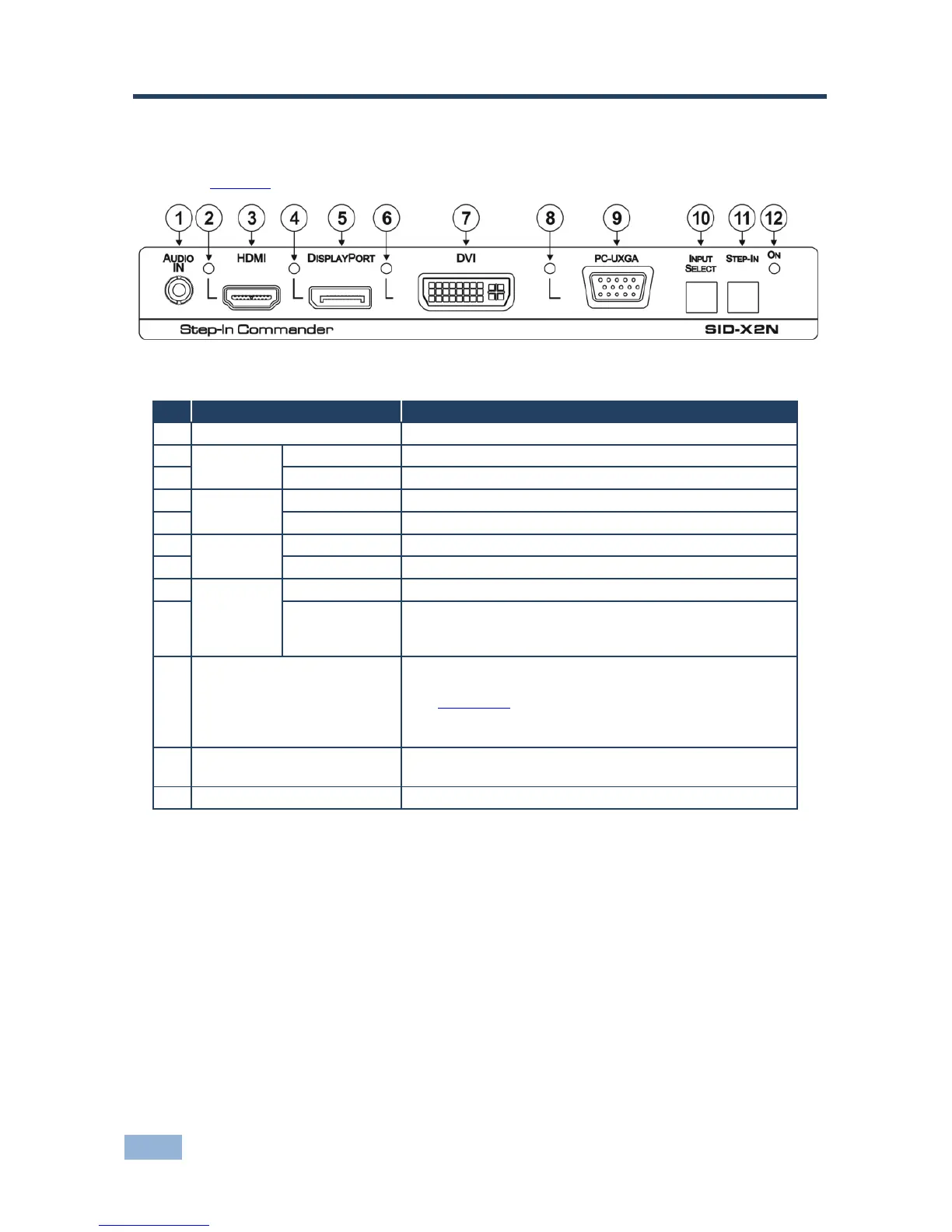

Figure 1 defines the front panel of the SID-X2N.
Figure 1: SID-X2N Step-in Commander Front Panel
#
Feature
Function
1
AUDIO IN 3.5mm Mini Jack
Connect to an unbalanced stereo audio source
2
HDMI
LED
Lights green when the HDMI input is selected
3
HDMI Connector
Connect to an HDMI source
4
DisplayPort
LED
Lights green when the DisplayPort input is selected
5
DP Connector
Connect to a DisplayPort source
6
DVI
LED
Lights green when the DVI input is selected
7
DVI Connector
Connect to a DVI source
8
PC-UXGA
LED
Lights green when the PC-UXGA input is selected
9
PC-UXGA
15-pin HD
Connector (F)
Connect to a PC graphics source
10
INPUT SELECT Button
Press repeatedly to cycle through the inputs manually to
select an input signal and override the automatic selection
(see Section 7.1)
Note: When the button is lit it is inactive and pressing the
button will not activate the input
11
STEP-IN Button
Press to activate the input on the switcher that the
SID-X2N is connected to
12
ON LED
Lights green when the device is powered on
