Kramer SID-X2N User Manual

SID-X2N - Defining the SID-X2N Step-in Commander
7
7

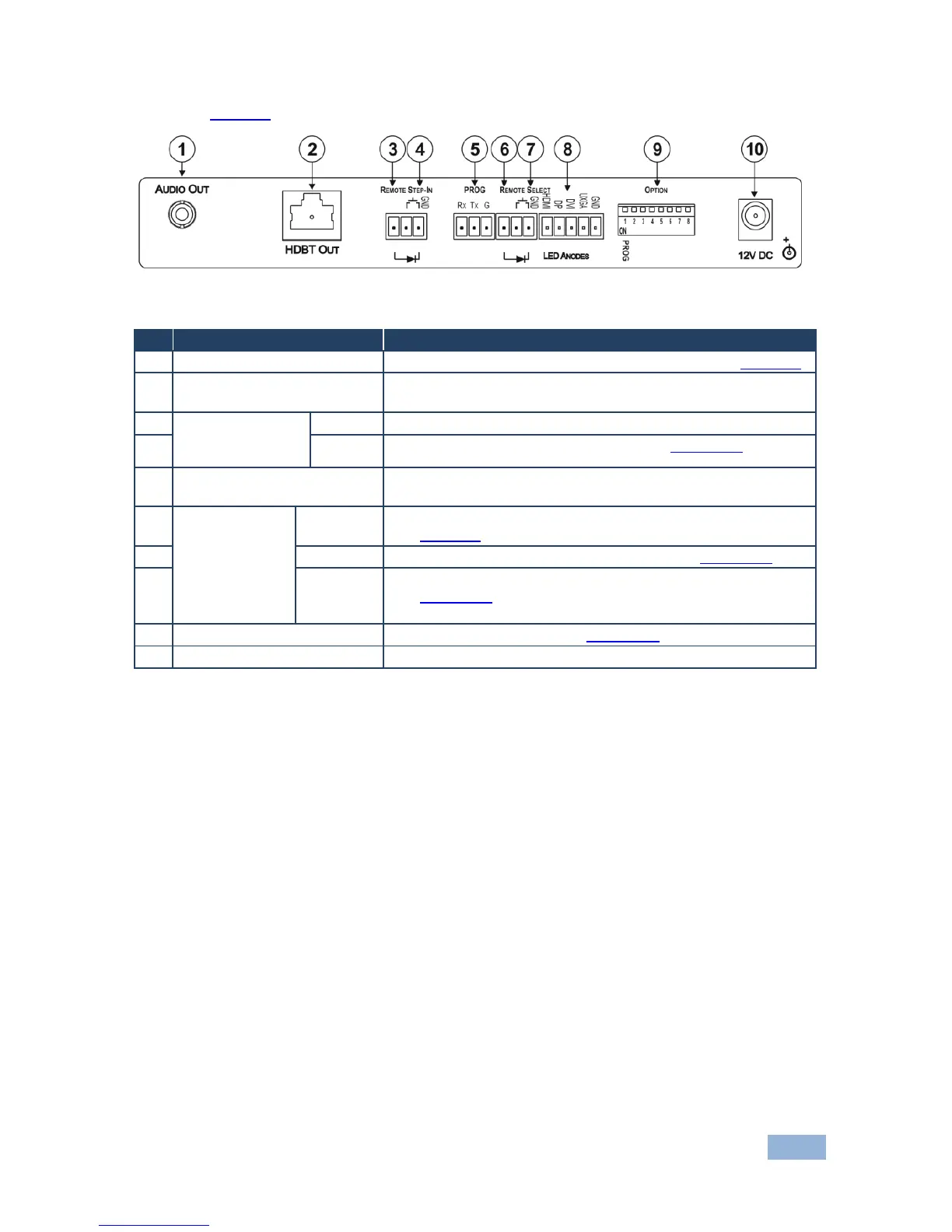

Figure 2 defines the rear panel of the SID-X2N.
Figure 2: SID-X2N Step-in Commander Rear Panel
#
Feature
Function
1
AUDIO OUT 3.5mm Mini Jack
Connect to an unbalanced, stereo audio acceptor (see Section 4)
2
HDBT OUT RJ-45 Connector
Connect to a compatible receiver, for example, the TP-580Rxr
using CAT 6 or higher specification cable
3
REMOTE STEP-IN
3-pin Terminal
Block
LED
Connect to the anode of the remote Step-In LED indicator
4
Switch
Connect to the remote, Step-In switch, (see Section 5.1)
5
PROG RS-232 3-pin Terminal
Block
Connect to the PC via RS-232 to perform a firmware upgrade
6
REMOTE
SELECT 8-pin
Terminal Block
LED
Connect to the anode of the remote Input Select LED indicator,
(see Section 4)
7
Switch
Connect to the remote, Input Select switch, (see Section 5.2)
8
LED HDMI,
DP, DVI
and UXGA
Connect to the anodes of the remote input indicators
(see Section 5.3)
9
OPTION 8-way DIP-switch
Sets the device behavior, (see Section 8.1)
10
12V DC Power Connector
Connect to supplied power adapter, center pin positive
