Kramer VP-724xl User Manual

Configuring the VP-724xl via the OSD MENU Screens
37
P
R
E
L
I
M
I
N
A
R
Y
Table 17 describes the User Define Measure features.
Table 17: User Define Measure Features
User Mode Setting Definitions
H Total Horizontal Total
H Start Horizontal active start point
H Active Horizontal active region
V Start Vertical active start point
V Active Vertical active region
Ch. Pump Charge pump current
Color Color format
H Freq Horizontal Frequency
V Freq Vertical Frequency
Measure Mode Select between Default and User Define
7.6 Verifying Configuration Details via the Information Screen
From the Information screen (see Figure 42), you can verify the main source,
PIP source, whether mute is activated, output mode, as well as the firmware
version number:

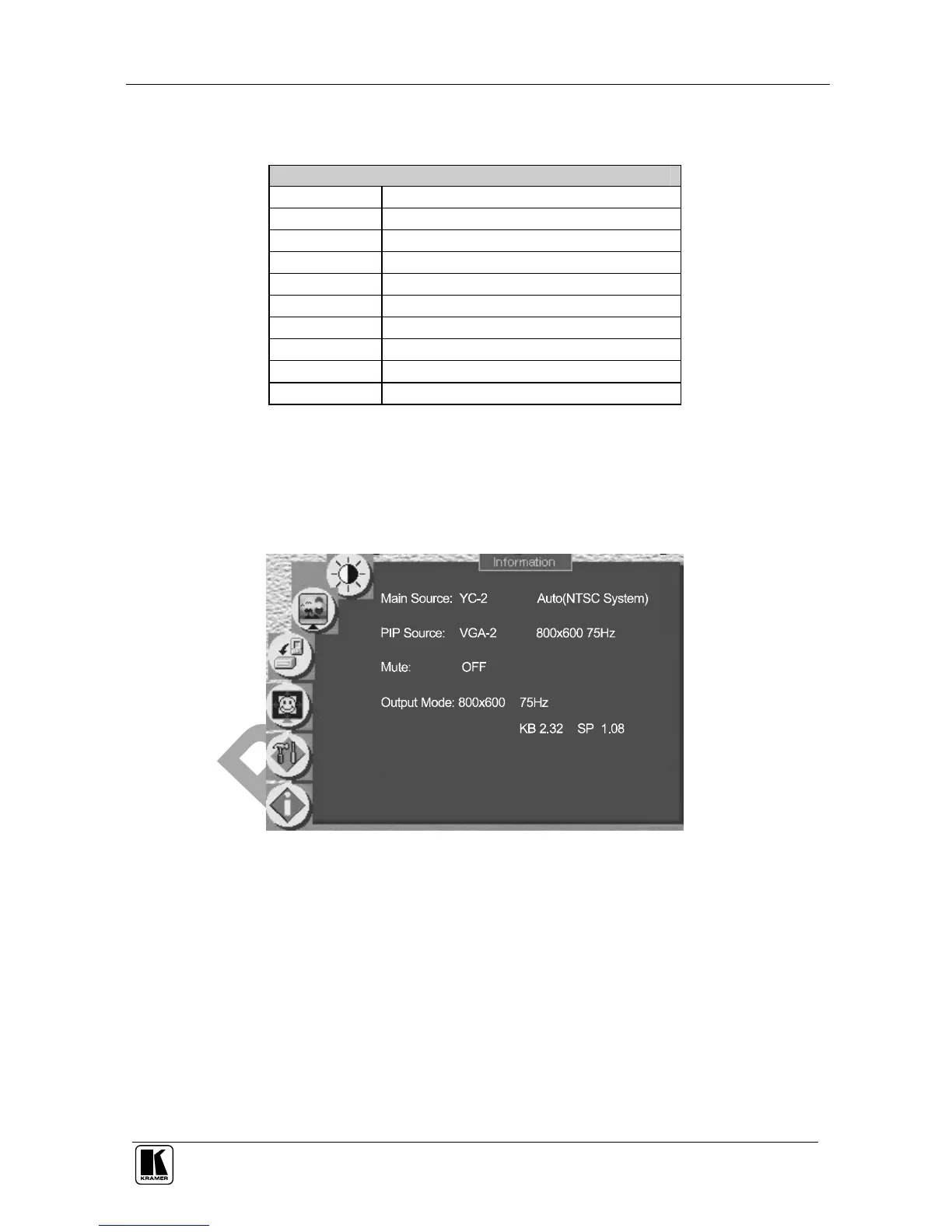

Figure 42: Information Screen
