Operation (continued)
3

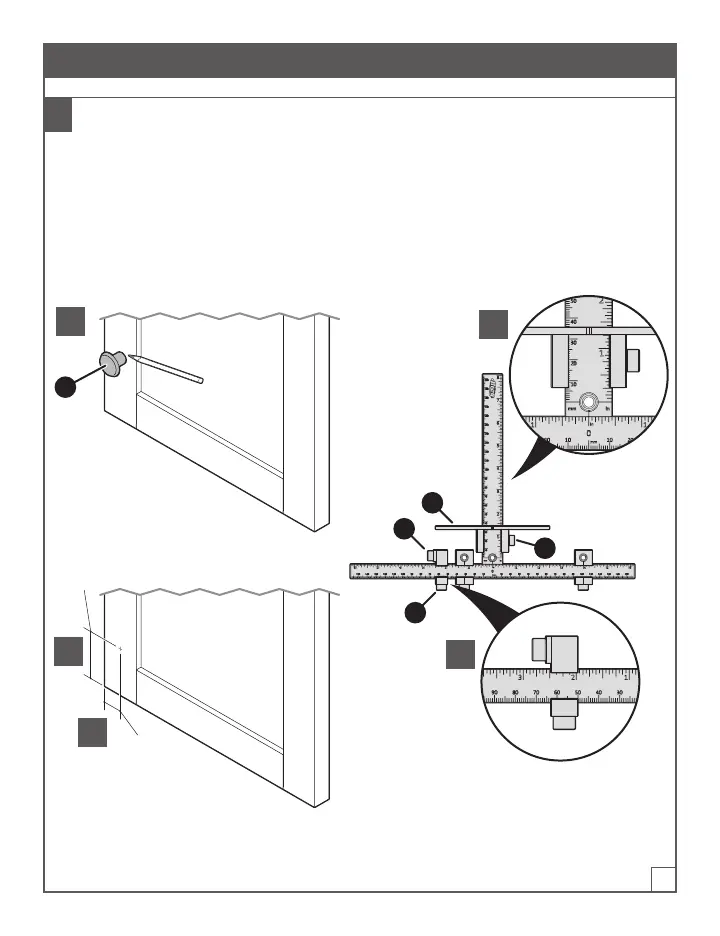

Install a Knob on a Door
a. Place the knob (2) to nd a position you want and mark the location.
b. Measure from the bottom of the door to the marked location. For this example, the
measurement equals 2.5 in. (6.4 cm).
c. Measure from the side of the door to the marked location. For this example, the
measurement equals 1.25 in. (3.2 cm).
d. Set the bottom of the Alignment Stop (C) to 1.25 in. (3.2 cm) and tighten the Thumb Screw (G).
e. Set the edge of the End Stop (D) to 2.5 in. (6.4 cm) and tighten the Thumb Screw (G).
3e
3d
G
C
D
G
3c
3b
1.25 in.
(3.2 cm)
2.5 in.
(6.4 cm)
2
3a
