16. Connecting ERGO to an audio interface using dual 2.1 monitoring systems.

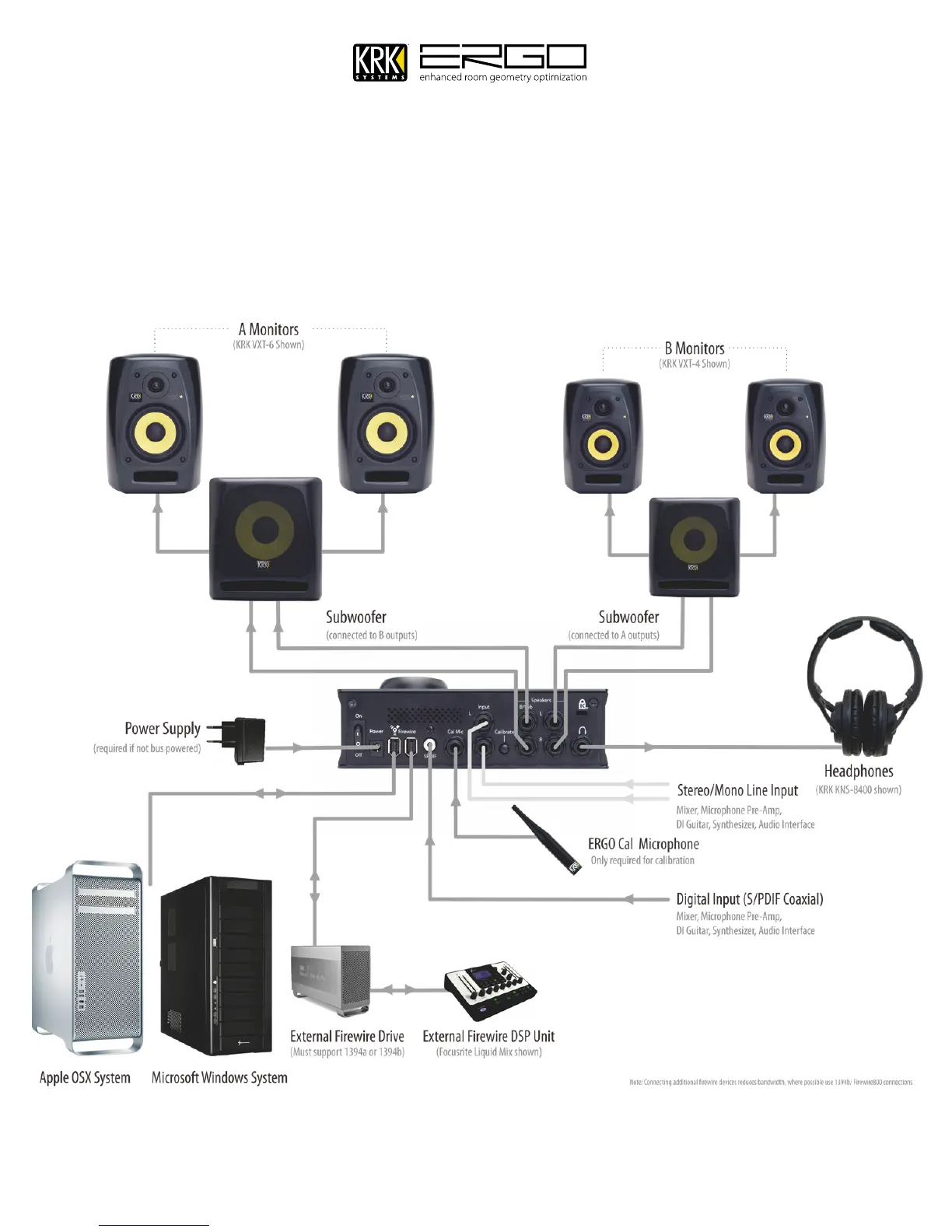

Below is the standard configuration when using ERGO as an audio interface with room correction for two pairs of
stereo studio monitors, both augmented by subwoofers. Here the subwoofer takes the signals from audio and
performs crossover functionality before passing the high pass filtered output to the main monitors, Note: in this
configuration the sub can only be bypassed using a footswitch where possible. Note: ERGO uses a mono summed
signal from the B Left output only, this should be the only connection you make to your subwoofers LEFT input.
