18. Connecting ERGO to an existing audio interface
This configuration is identical to using ERGO as stand-alone device. Here ERGO simply sits in the path between your
existing audio interface and your monitors. In this mode ERGO will perform correction on the signal appearing at
either the digital or analog inputs. Note: The digital inputs are treated as a priority, so if an S/PDIF source is
connected it will be used instead of the analog input. If you wish to use the analog inputs please ensure a digital
source is not connected.
In this mode, the controls all operate according to the mode calibrations were performed (with or without

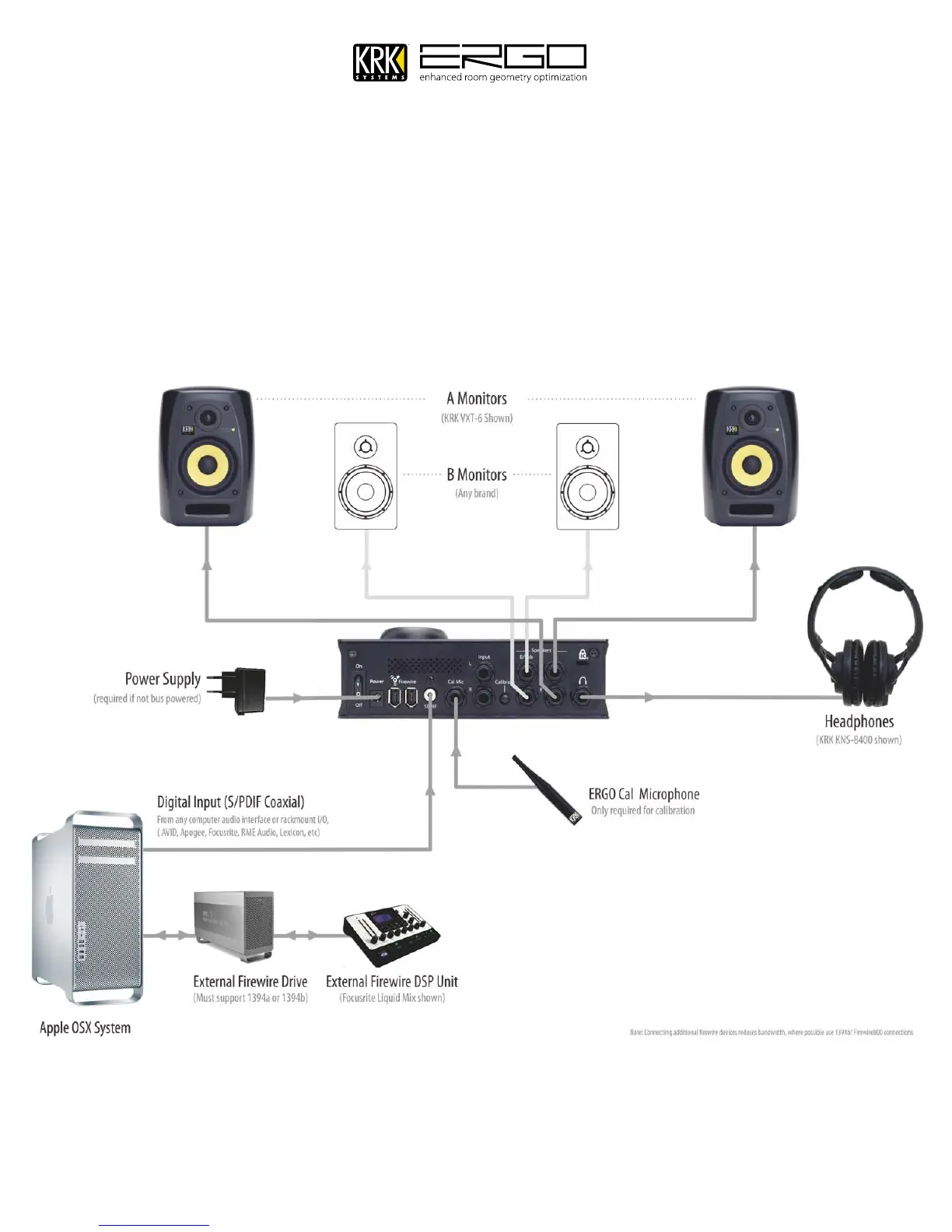

Subwoofer). Below a simple dual monitor system is shown, you can also apply the same principle using a 2.1 system.
