Technical data
6.1 Measuring principle (twin tube)
A Coriolis twin tube mass flowmeter consists of two measuring tubes 1 a drive coil 2 and two
sensors (3 and 4) that are positioned either side of the drive coil.

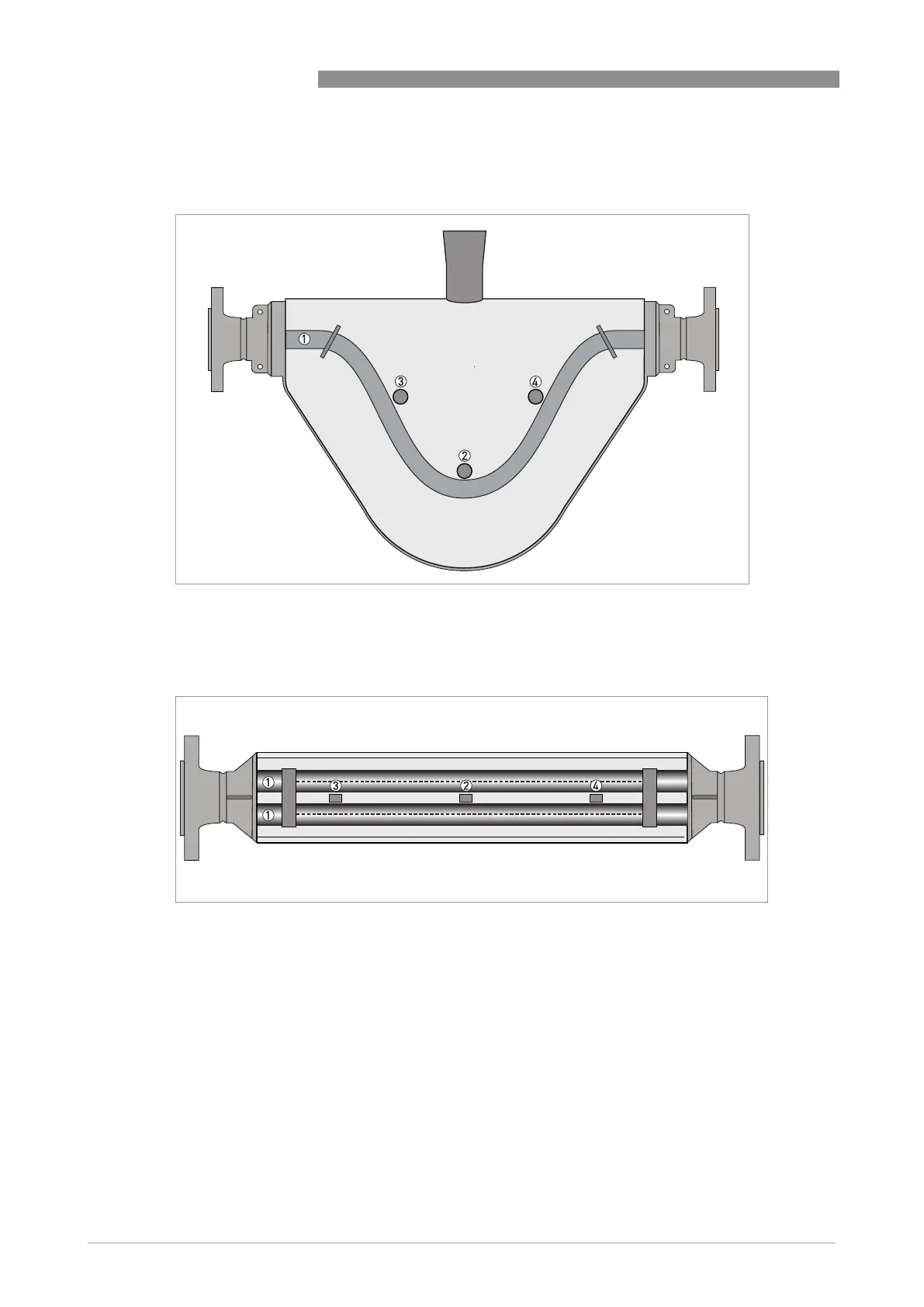

Meter from the side, showing tube layout
1 Measuring tubes
2 Drive coil
3 Sensor 1
4 Sensor 2
Static meter not energised and with no flow
1 Measuring tubes
2 Drive coil
3 Sensor 1
4 Sensor 2
