6.5.4 Heating jacket version

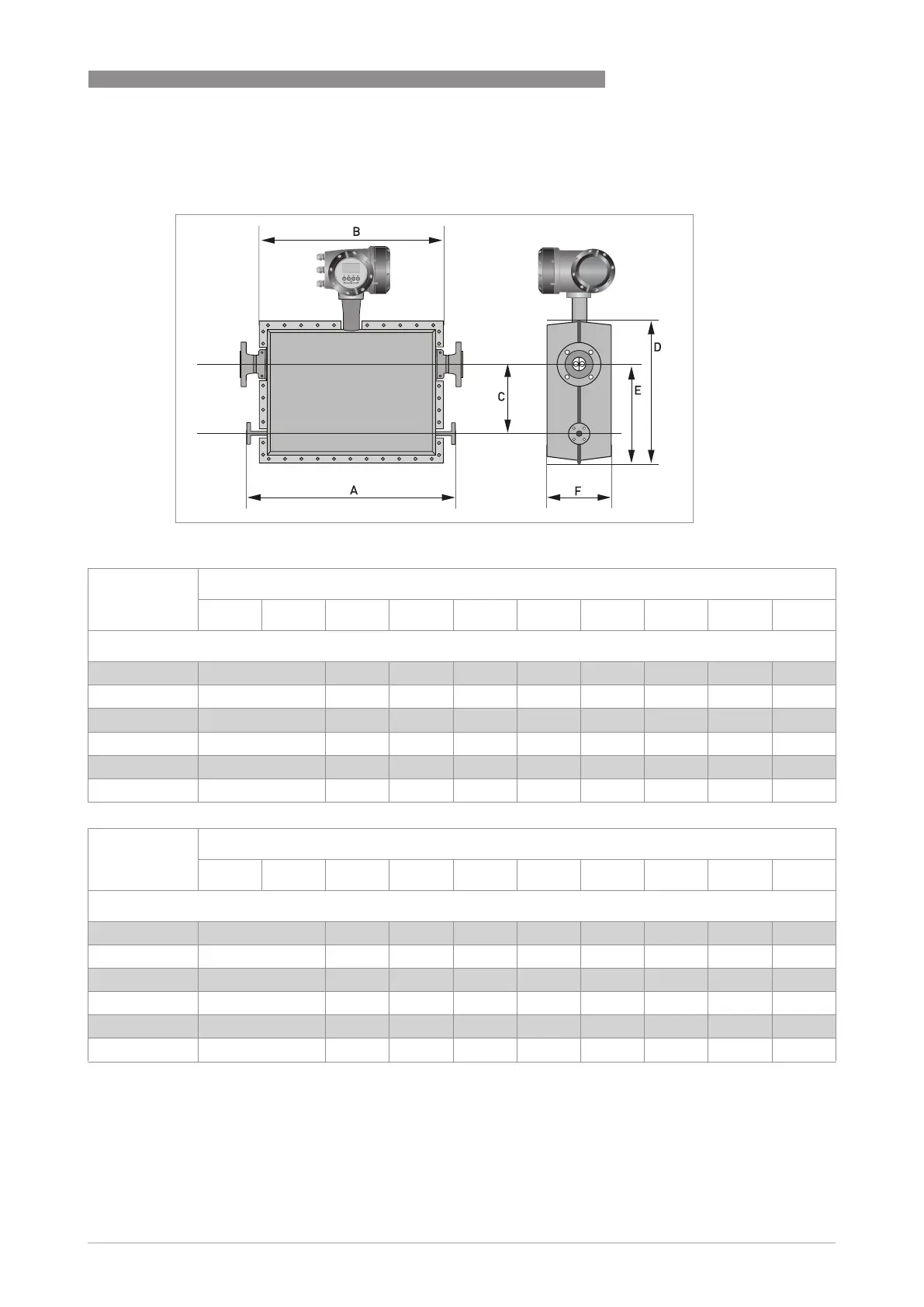

General dimensions
mm
S08 S10 S15 S25 S50 S80 S100 S150 S200 S250
Heating connection size: PN40 DN15 or ASME 150 ½¨
A ±5.0 435 590 692 715 891 956 1139 TBA TBA
B ±3.0 283 440 542 565 741 806 989 TBA TBA
C ±3.0 100 130 210 230 320 340 450 TBA TBA
D ±3.0 315 344 453 499 622 682 844 TBA TBA
E ±3.0 198 221 316 356 451 486 617 TBA TBA
F ±3.0 232 226 254 266 322 372 428 TBA TBA
inches
S08 S10 S15 S25 S50 S80 S100 S150 S200 S250
Heating connection size: PN40 DN15 or ASME 150 ½¨
A ±0.2 17.1 23.2 27.2 28.1 35.1 37.6 44.8 TBA TBA
B ±0.12 11.1 17.3 21.3 22.2 29.2 31.7 38.9 TBA TBA
C ±0.12 3.9 5.1 8.3 9 12.6 13.4 17.7 TBA TBA
D ±0.12 12.4 13.5 17.8 19.6 24.5 26.8 33.2 TBA TBA
E ±0.12 7.8 8.7 12.4 14 17.7 19.1 24.3 TBA TBA
F ±0.12 9.1 8.9 10 10.5 12.7 14.6 16.8 TBA TBA
