TECHNICAL DATA 6
41
OPTIMASS 6000
www.krohne.com02/2016 - 4001894004 - MA OPTIMASS 6000 R04 en
Flanges
• DIN flange ratings are based on EN 1092-1 2007 table G.4.1 material group 14EO
• ASME flange ratings are based on ASME B16.5 2003 table 2 material group 2.2
• JIS flange ratings are based on JIS 2220: 2001 table 1 division 1 material group 022a
• JIS 10K flanges are limited to a maximum temperature of 300°C / 572°F

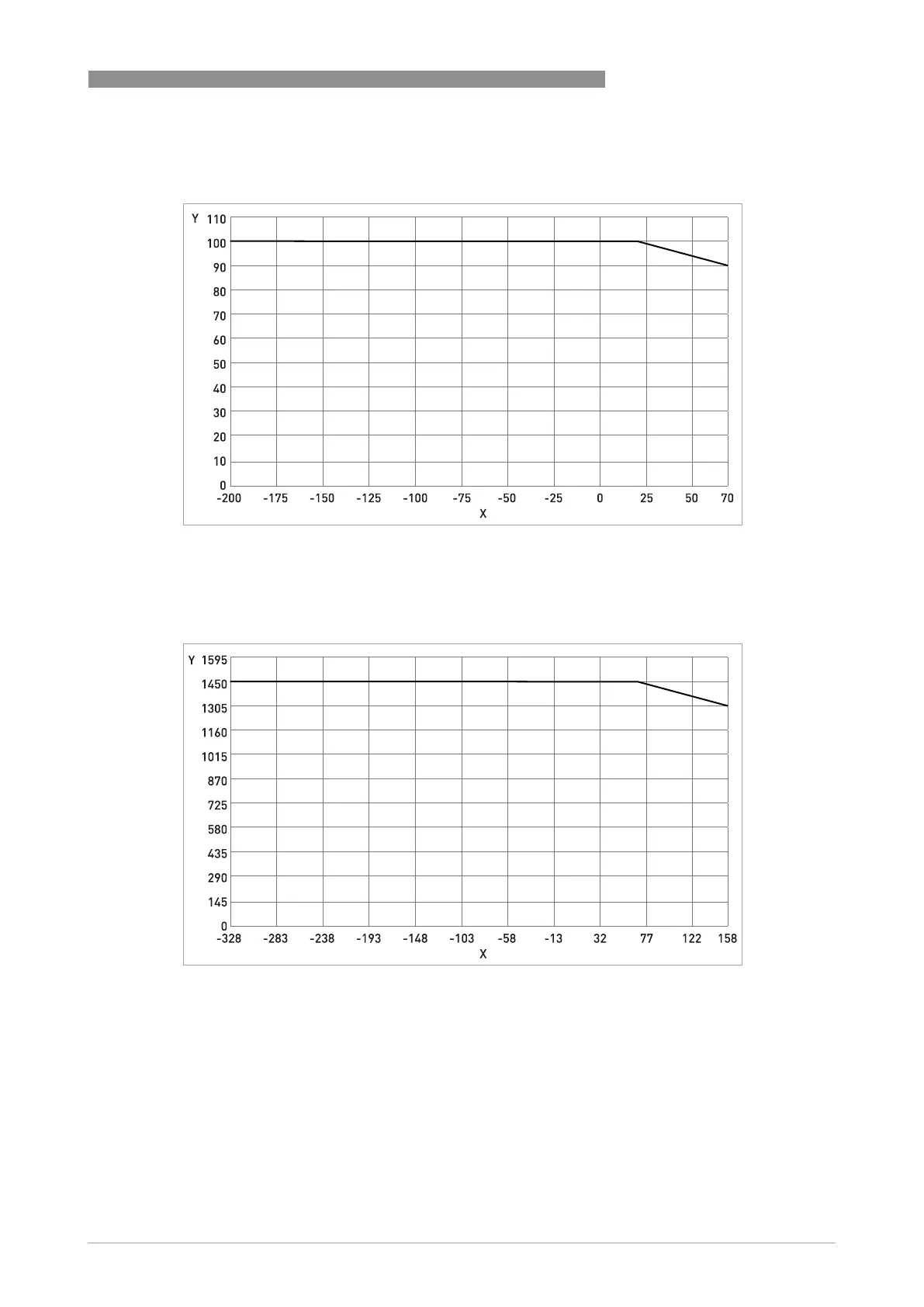

Pressure / temperature de-rating (metric) for meters with SS 316, PED certified
Pressure / temperature de-rating (metric) for meters with SS 316, PED certified Pressure / temperature de-rating (metric) for meters with SS 316, PED certified
Pressure / temperature de-rating (metric) for meters with SS 316, PED certified
measuring tubes. Cryogenic temperature range.
measuring tubes. Cryogenic temperature range.measuring tubes. Cryogenic temperature range.
measuring tubes. Cryogenic temperature range.
X temperature [°C]
Y pressure [barg]
Pressure / temperature de-rating (imperial) for meters with SS 316 measuring tubes
Pressure / temperature de-rating (imperial) for meters with SS 316 measuring tubes Pressure / temperature de-rating (imperial) for meters with SS 316 measuring tubes
Pressure / temperature de-rating (imperial) for meters with SS 316 measuring tubes
PED certified. Cryogenic temperature range.
PED certified. Cryogenic temperature range.PED certified. Cryogenic temperature range.
PED certified. Cryogenic temperature range.
X temperature [°F]
Y pressure [psig]
