6.13 Brake system
6.13.1 Special safety instructions
• Repair work on the brake system must only be carried out by a trained specialist or at
appropriate workshops.
• KRONE accepts no liability under the terms of the guarantee for normal wear, deficiencies due
to overloading or changes to the brake system.
• Carrying out changes to the brake system is not permitted without prior authorisation by
KRONE.
• Irregularities or disruptions in the operation of the brake system must be dealt with
immediately.
• Only feeder wagons with intact brake systems must be used for work in the field or for
travelling on the road.

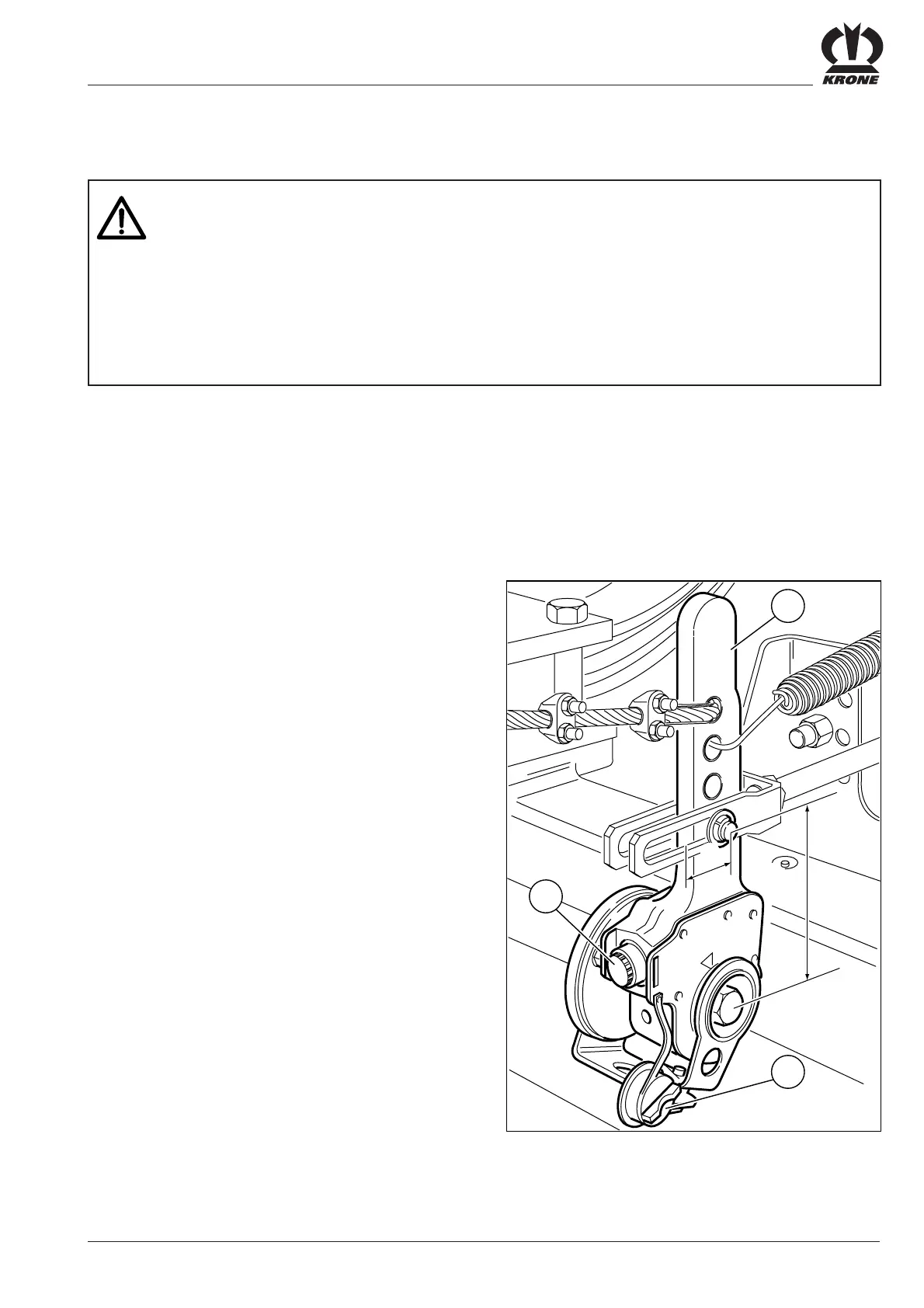

6.13.2 Adjusting the transmission device
After the first few kilometers travelled, the transmission
device and the brake linings of the brake drum will have
bedded in. The resulting play will have to be compensated
for.
Checking the play
• The feeder wagon must be secured and shut down.
• Move the lever (1) by hand. The lever travel „S“ must
only be a maximum of 0.1 times the length of the brake
lever „L“.
Adjusting the play
• Remove the cap (3)
• Adjust the play of the lever (1) using the turning knob
(2).
– Turning clockwise reduces the
play
– Turning anticlockwise increases the
play
• Replace the cap (3) on the turning knob (2).
KLW10250
1
3
2
L
S
