Commissioning
32
Pos: 13.25 /BA/Ers tinbetriebna hme/EasyCut/L ängenanpassung Bild EC7540/9140 @ 11\mod_12233 80384360_78.d oc@ 145751
EC-0-108

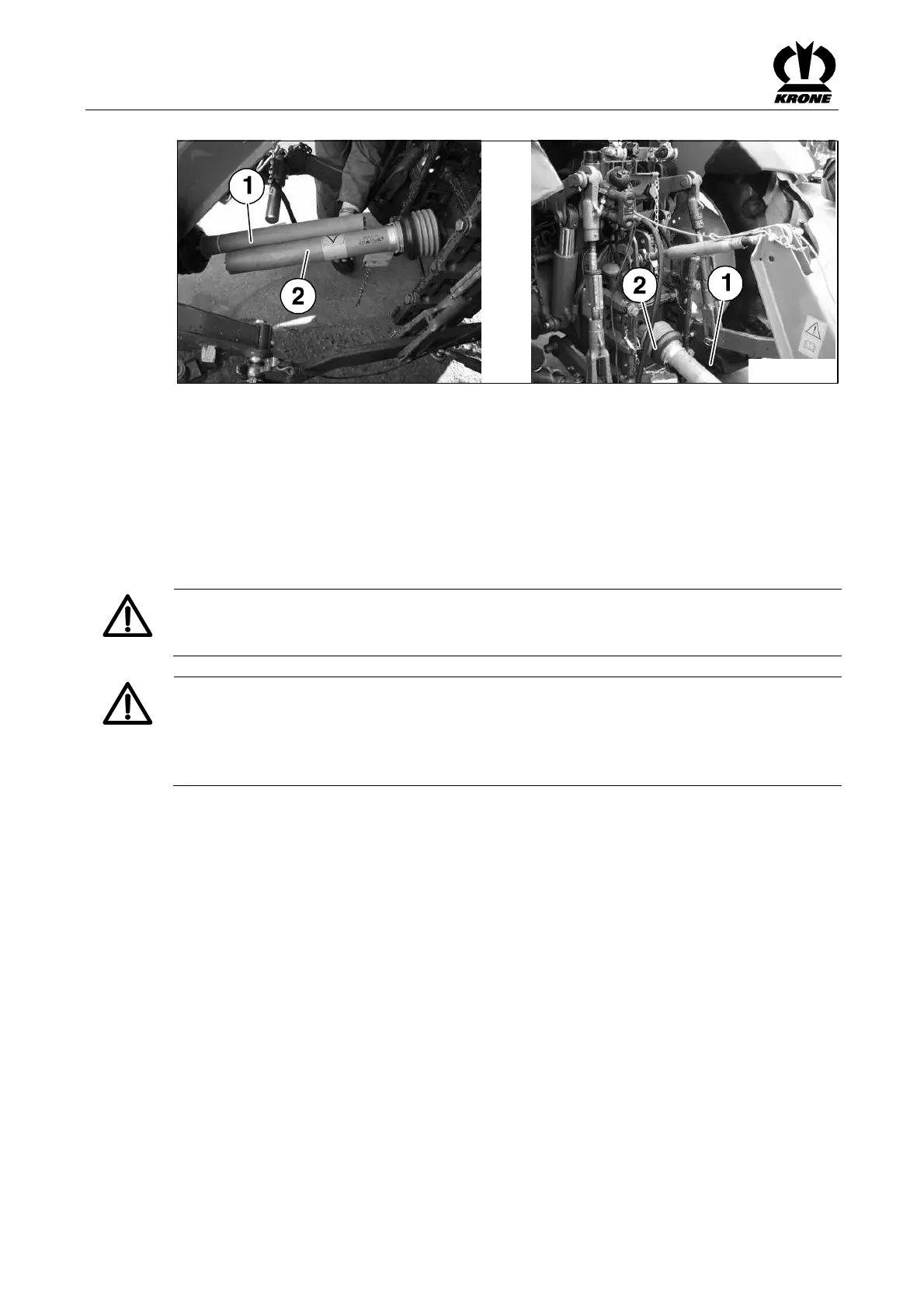

Fig. 9
Pos: 13.26 /BA/Ers tinbetriebna hme/EasyCut/L ängenanpassung_ ohne Pfahlsich erung @ 10\m od_12218138 73039_78.doc @ 138060
The length of the PTO shaft (1) must be adjusted.
• Disassemble the PTO shaft.
• Install each half (1) and (2) on the tractor and machine side respectively.
• Check the special section tubes and guard tubes.
• Shorten special section tubes and guard tubes to an extent that the PTO shaft can move
freely in the shortest operating position.
• For additional operating instructions refer to the operating instructions of the PTO shaft
manufacturer.
Pos: 13.27 /BA/Sic herheit/Gelenkw elle/Achtung S chwenkbereic h/Freiraum überpr üfen @ 9\mod _12205363089 30_78.doc @ 126898
Caution! - Swivel range of the PTO shaft
Effect: Damage to the tractor or the machine
• Check the swivel range and clearance of the PTO shaft!
Pos: 13.28 /BA/Ers tinbetriebna hme/Gelenkw elle/Traktorwechs elG elenkwellenlä nge beachten @ 6\mod_12149 96938591_78.d oc@ 97742
Caution! - Changing the tractor
Effect: Damage to the machine
When using the machine for the first time and whenever changing the tractor Check PTO shaft
for the correct length. If the length of the PTO shaft does not match the tractor, always observe
the chapter entitled "Adjusting the length of the PTO shaft".
