Start-up
33
Pos: 15.1 /Übersc hriften/Übersc hriften 1/F-J/Inbetri ebnahme @ 0 \mod_1196327 075811_78.doc @ 6375
6 Start-up
Pos: 15.2 /Übersc hriften/Übersc hriften 2/A-E/An bau an den Trakt or @ 0\mod_ 1199717845194_ 78.doc @ 340 39
6.1 Mounting onto the Tractor
Pos: 15.3 /BA/Sich erheit/Gefahr enhinweise/M ähwerke/Unbeabsic htigtes Abku ppeln angebaute @ 9\mod_12205 37942289_78.d oc @ 126969
Danger! - Inadvertent uncoupling of the machine during road travel or work.
Effect: Danger to life, serious injuries or serious damage to the machine.
• Use extreme caution when attaching or detaching devices to or from the tractor! The
accident prevention regulations must be complied with absolutely.
• The lower suspension arms on the tractor must be fixed in position
with the retaining chains or bars to prevent the machine from swivelling out during
transport or work. If the lower suspension arms (1) are equipped with catch hooks, the
following items must be taken into consideration:
Especially in the headland position, high forces develop in the lower suspension arm bolts (3)
that act upwards in the left-hand hook.
For this reason, the catch hooks must be in a flawless condition.
Additionally, the catch hooks must be secured in the provided locking hole (4) against
unwanted opening after the machine has been connected to the tractor.
Pos: 15.4 /BA/Sich erheit/Gefahr enhinweise/M ähwerke/Achslast enB eeinträchtigu ng der Lenkfä higkeit @ 9\mod _12208665559 85_78.doc @ 128119
Warning - Impairment of the steerability of the tractor.
Effect: Damage to the tractor or the machine.
The attachment of implements at the front and rear must not cause exceedance of the max.
permissible weight, of the permissible axle loads and of the carrying capacities of the tractor
tyres. Even with a fitted rear-mounted accessory unit, the front axle must always be loaded with
a minimum 20% service weight of the tractor.
Make sure that these prerequisites are met prior to driving.
Pos: 15.5 /BA/Ersti nbetriebnah me/EasyCut/An kuppeln Bild EC 7 540/9140 @ 11\mod_122329343 9581_78.doc @ 145432

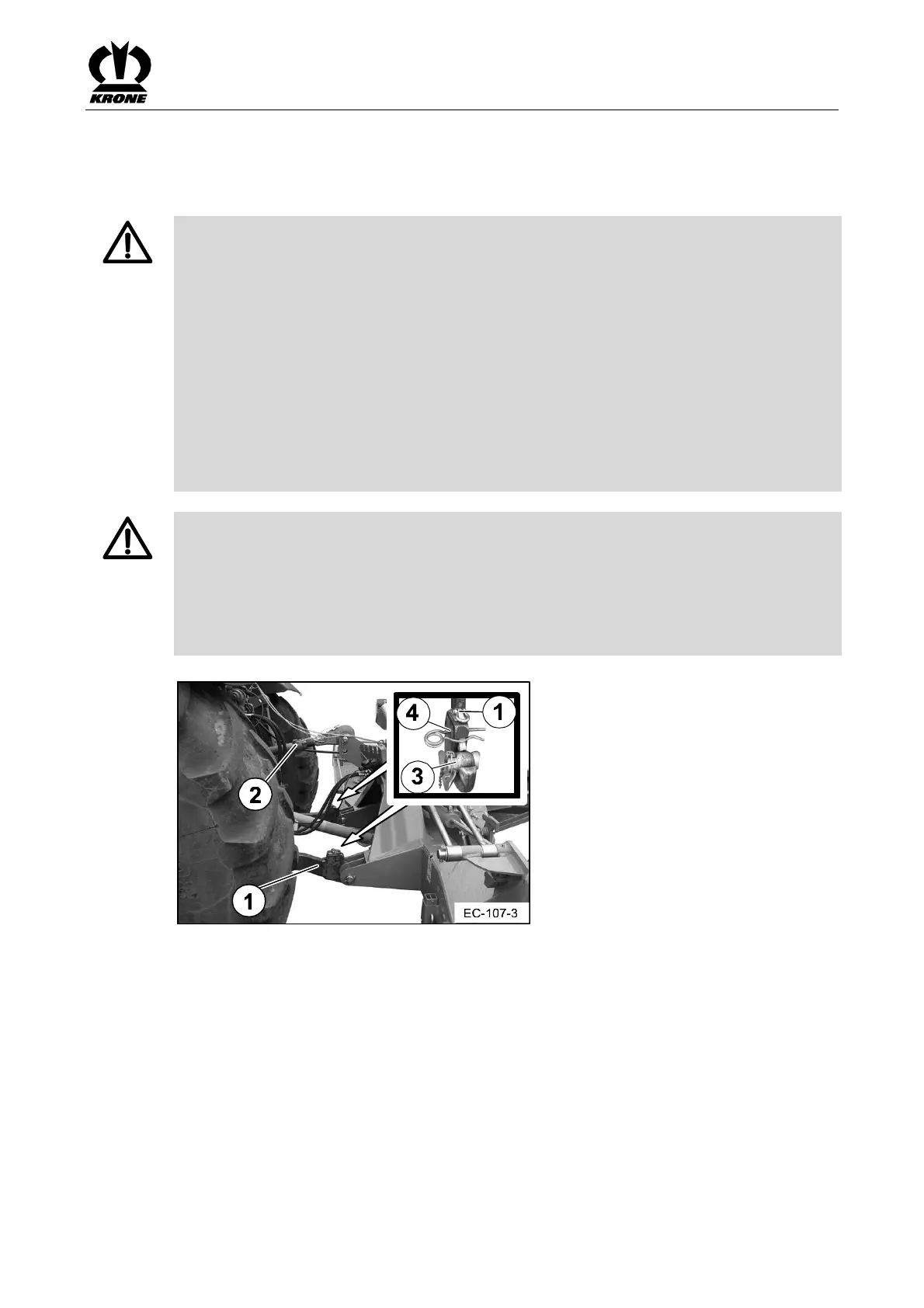

Fig. 10
Pos: 15.6 /BA/Ersti nbetriebnah me/EasyCut/An kuppeln Text EC 2 80/320 (280/ 320CV-Q) @ 9\ mod_1220537 421383_78.doc @ 126948
• Attach the machine onto the lower suspension arm (1) of the tractor.
• Hook the top link (2) into the upper hole of the 3-point support.
Pos: 15.7 /BA/---- -Seitenumbruch--- --- @ 0\mod _1196175311 226_0.doc @ 416 5
