Start-up
54
Pos: 64.13 /Übersc hriften/Überschri ften 2/A-E/Anbau und Einste llung der Entlastun gsfedern ÜS @ 89\mod_13219 58243040_78.docx @ 7 56797 @ 2 @ 1

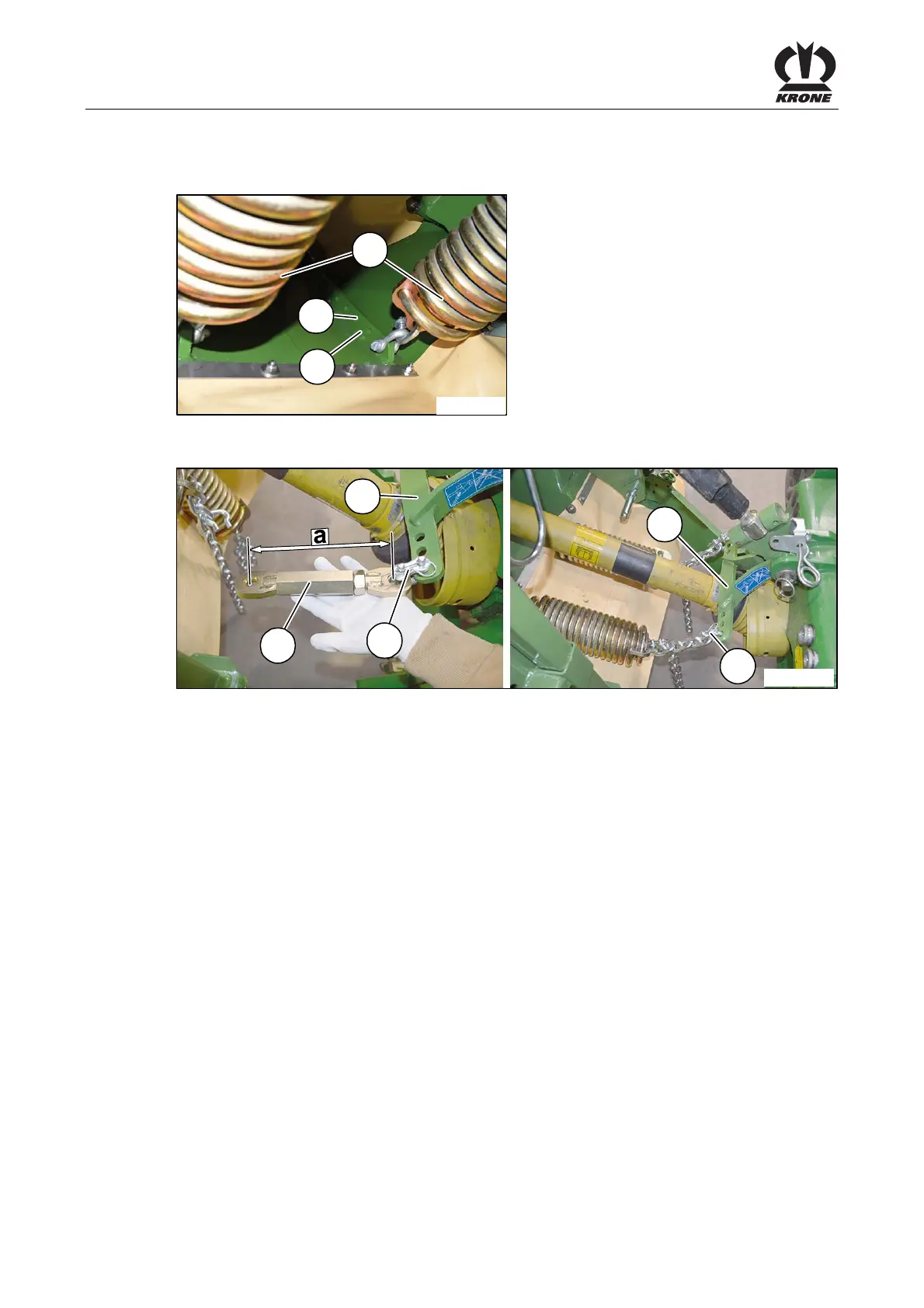

7.3 Mounting and Adjusting the Relief Springs
Pos: 64.14 /Übersc hriften/Überschri ften 3/F-J/Geschobene A usführung @ 245\mod_139591 6281296_78.doc x @ 1914218 @ 3 @ 1
7.3.1 Pushed Design
Pos: 64.15 /BA/Er stinbetriebnahme/Easy Cut/F 360 CV/CR/Einst ellung der Entlastungsf edern EC F 360 geschoben Bi ld @ 245\mod_1395912760848 _78.docx @ 1913825 @ @ 1
EC-516-0
2
1
III
Fig. 22
Pos: 64.16 /BA/Er stinbetriebnahme/Easy Cut/F 360 CV/CR/Die Ent lastungsfedern mähwer kseitig einhängen EC F 360 CV Text @ 248\mod_1396512 479701_78.docx @ 1929305 @ @ 1
• Hinge relief springs (1) on mowing unit side into the third hole (III) of the perforated bar (2).
Pos: 64.17 /BA/Er stinbetriebnahme/Easy Cut/F 360 CV/CR/Anbau und Ei nstellung der Entlast ungsfedern EC F 360 geschob en Bild @ 245\mod_13959098 59855_78.docx @ 191361 8 @ @ 1
EC-487-0
3
1
2
3
2
Fig. 23
with tension jack without tension jack
Pos: 64.18 /BA/Er stinbetriebnahme/Easy Cut/F 360 CV/CR/Einf ührungstext mit/ohne Spann schloss EC F 360 @ 248\mod_1 396514148084_78.doc x @ 1929909 @ @ 1
The relief springs can be hinged with tension jack (1) or without tension jack on the clevis of the
top link (2).
A finer adjustment of the ground pressure is possible if the tension jack is used.
A coarser adjustment of the ground pressure is possible if the tension jack is not used.
