Maintenance - Gearbox
93
Pos: 93.1 /Überschri ften/Überschri ften 2/U-Z/Winkelgetr iebe @ 0\mod_11970059182 99_78.docx @ 15435 @ 2 @ 1
12.4 Angular gearbox
Pos: 93.2 /Abkürzung en /CR-Ausführung @ 194\ mod_1383299073254_78. docx @ 1647987 @ @ 1
CR design
Pos: 93.3 /Überschri ften/Überschri ften 3/U-Z/Untertei l @ 10\mod_1221640227712_ 78.docx @ 135712 @ 3 @ 1
12.4.1 Bottom part
Pos: 93.4 /BA/War tung/Hinweis Ölstandsk ontrolle in Arbeitsste llung und in waagerecht er Stellung der Maschi ne vornehmen @ 194\mod_138355 4973754_78.doc x @ 1649577 @ @ 1
Note
Perform oil level check and oil change while the machine is in a horizontal position!
Pos: 93.5 /BA/War tung/Ölkontrolle_Wec hsel/Mähwerke/Bi ld Winkelgetriebe CRI @ 0\mo d_1197013688111_78.doc x @ 15844 @ @ 1

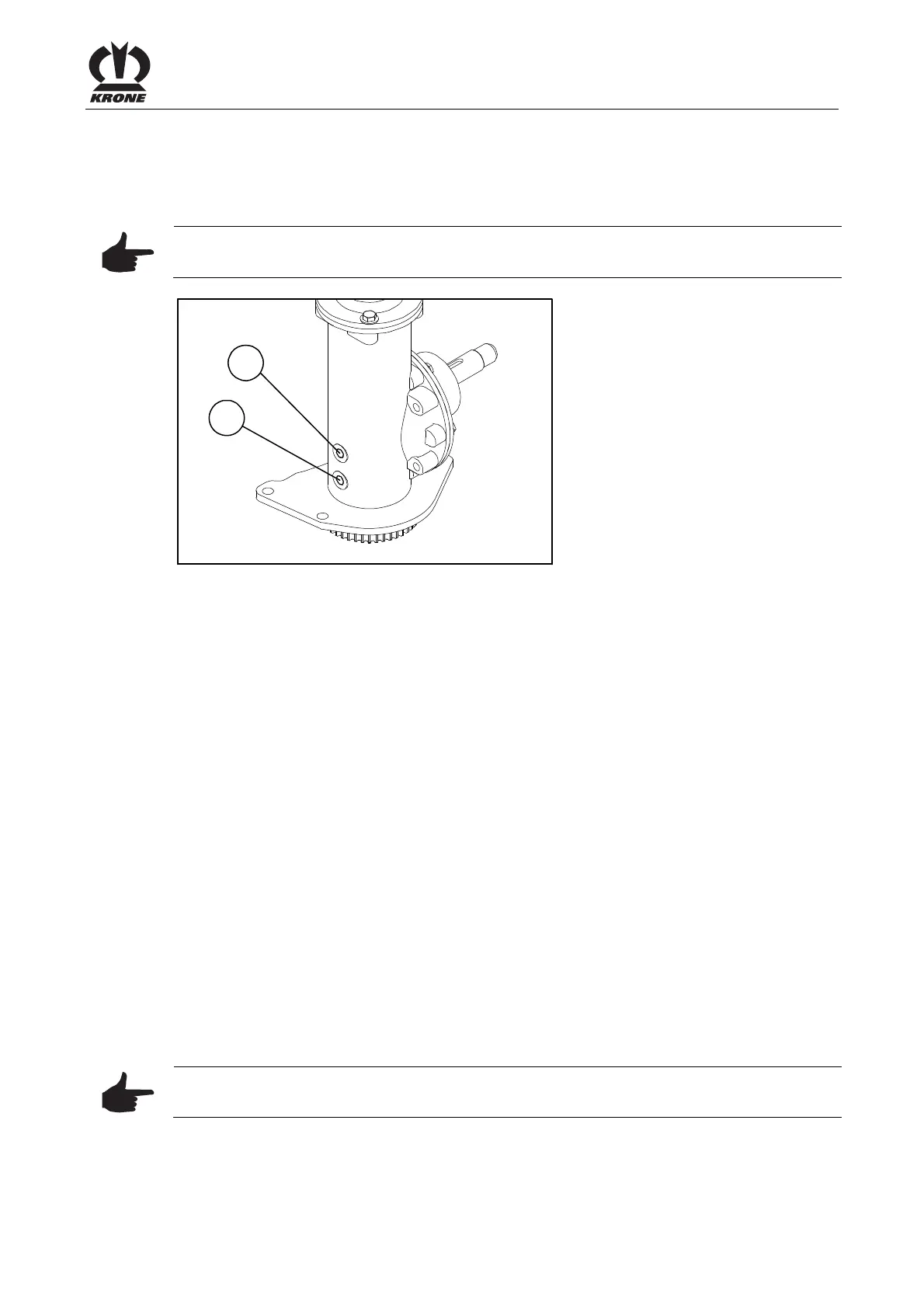

EC-189-0
1
2
Fig. 58:
Pos: 93.6 /BA/War tung/Ölkontrolle_W echsel/Ölwechsel / Ölkon trolle:Legende zu Graf ik Kontrollschraub e / Ablassschraube @ 194\mo d_1383299451132_78. docx @ 1648045 @ @ 1
1) Inspection screw / control hole 2) Drain plug
Pos: 93.7 /BA/War tung/Ölkontrolle_Wec hsel/Ölqualität /Ö lmenge: siehe Kapitel Techni sche Daten @ 134\mod_135 0483480921_78.doc x @ 1188085 @ @ 1
Oil Quality / Amount of Oil: Refer to Chapter Technical Data “Lubricants”
Pos: 93.8 /BA/War tung/Ölkontrolle_W echsel/Ölkontrolle / Ö lwechsel Intervall: si ehe Kapitel War tung „Wartungstabelle“ @ 134\ mod_1350483605921_78. docx @ 1188115 @ @ 1
Interval for oil level check and oil change: refer to chapter Maintenance “Maintenance Table”
Pos: 93.9 /BA/War tung/Ölkontrolle_Wec hselÖlkontrolle NEU über Kontrollschraube oh ne Einfüllschraube @ 158\ mod_1364483633589 _78.docx @ 1391741 @ @ 1
Oil level check:
• Screw out inspection screw.
• Oil level up to control hole.
If the oil reaches the control hole:
• Screw in the inspection screw and tighten it securely.
If the oil does not reach the control hole:
• Top up oil via control hole until the control hole is reached.
• Screw in the inspection screw and tighten it securely.
Pos: 93.10 /BA/W artung/Ölkontrolle_Wec hselÖlwechsel NEU ohne Ei nfüllschraube @ 158\ mod_1364483760090_78. docx @ 1391770 @ @ 1
Oil change:
Collect escaping oil in a suitable container.
• Screw out oil drain plug and drain the oil.
• Screw out inspection screw.
• Screw in oil drain plug and tighten it securely.
• Top up new oil via control hole until the control hole is reached.
• Screw in the inspection screw and tighten it securely.
Pos: 93.11 /BA/W artung/Ölkontrolle_Wec hsel/Hinweis - Altöl ordn ungsgemäß entsorgen @ 0\ mod_1197008117002_78. docx @ 15550 @ @ 1
Note
The used oil must be disposed of correctly
