10.3 Setting Conditioner Speed
Pos: 70.20 /Abkürzun gen /CV-Ausführung @ 95\ mod_1328530180147_78. docx @ 799128 @ @ 1
CV-Design
Pos: 70.21 /BA/Sic herheit/7. Gefahrenhin weise alt/Einstel larbeiten / Einstel lungen/Gefahr - Einste llungen an der Maschine @ 0\ mod_1196668628056_78.doc x @ 10285 @ @ 1
Danger! - Settings on the machine
Effect: Danger to life, injuries or damage to the machine.
• Setting tasks must only be performed when the drive is switched off and the engine is at a
standstill! Remove the ignition key!
Pos: 70.22 /BA/Einste llungen/Mähwerke/ Zetterdrehzahl/Auf bereiterdrehzah l einstellen Riemensc heiben EC F 360 CV/CR Bild/Te xt @ 245\mod_1396003473 212_78.docx @ 1916562 @ @ 1

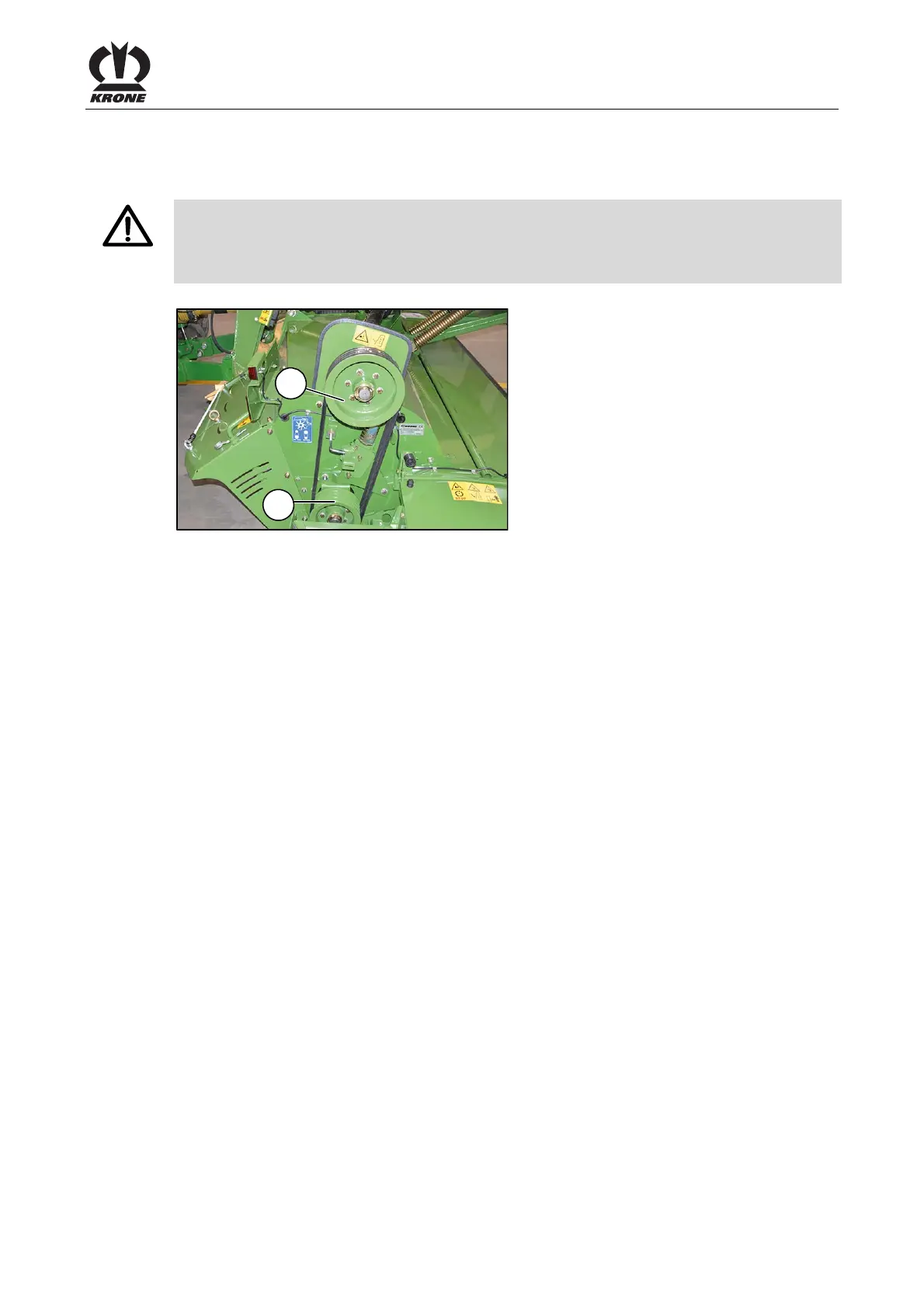

EC-507-0
2
1
Fig. 43
Two conditioner speeds can be set on the belt drive. This affects conditioning effect and power
consumption.
Maximum speed: 900 rpm (large pulley (1) top, small pulley (2) bottom).
Minimum speed: 600 rpm (small pulley (2) top, large pulley (1) bottom).
