12.7 Oil level check and oil change on the cutter bar
Pos: 103.2 /Übersc hriften/Überschri ften 3/K-O/Ölwechsel @ 0\m od_1197021941955_7 8.docx @ 16139 @ 3 @ 1
12.7.1 Oil change
Pos: 103.3 /BA/W artung/Mähwerke/Hinweis Ei n Ölwechsel am Mähholm is t nicht erforderlic h. @ 68\mod_1304577391388_7 8.docx @ 628708 @ @ 1
Note
No oil change is required on the cutter bar.
Pos: 103.4 /Übersc hriften/Überschri ften 3/K-O/Ölkontrol le @ 0\mod_119702190819 0_78.docx @ 16120 @ 3 @ 1
12.7.2 Checking the oil level
Pos: 103.5 /BA/Sic herheit/7. Gefahrenhin weise alt/Mähwerke/ Gefahr - Schnell rotier ende Messerteller/ Messertrommel_2 @ 0\mod_1 197022569252_78.doc x @ 16165 @ @ 1
Danger! - Rapidly rotating cutting discs/blade drums.
Effect: Danger to life or serious injuries.
Lower guards. Nobody should be in the danger zone around the machine.
Pos: 103.6 /BA/Sic herheit/7. Gefahrenhin weise alt/Mähwerke/ Gefahr - Schnell rotier ende Messerteller/ Messertrommeln_1 @ 0\ mod_1197017696736_78.doc x @ 16001 @ @ 1
Danger! - Rapidly rotating cutting discs/blade drums.
Effect: Danger to life or serious injuries.
• Switch off the engine and remove the ignition key.
• The cutting discs/blade drums continue to run!
• Do not leave the driver’s cab until the cutting discs/blade drums have come to a complete
stop.
Pos: 103.7 /Übersc hriften/Überschri ften 3/K-O/Mähholm ausr ichten @ 0\mod_11970179568 15_78.docx @ 16042 @ 3 @ 1
12.7.3 Aligning the Cutter Bar
Pos: 103.8 /BA/W artung/Mähwerke/Mähho lm ausrichten EasyCut @ 3\ mod_1204721803648_78. docx @ 72358 @ @ 1
EC-0-001

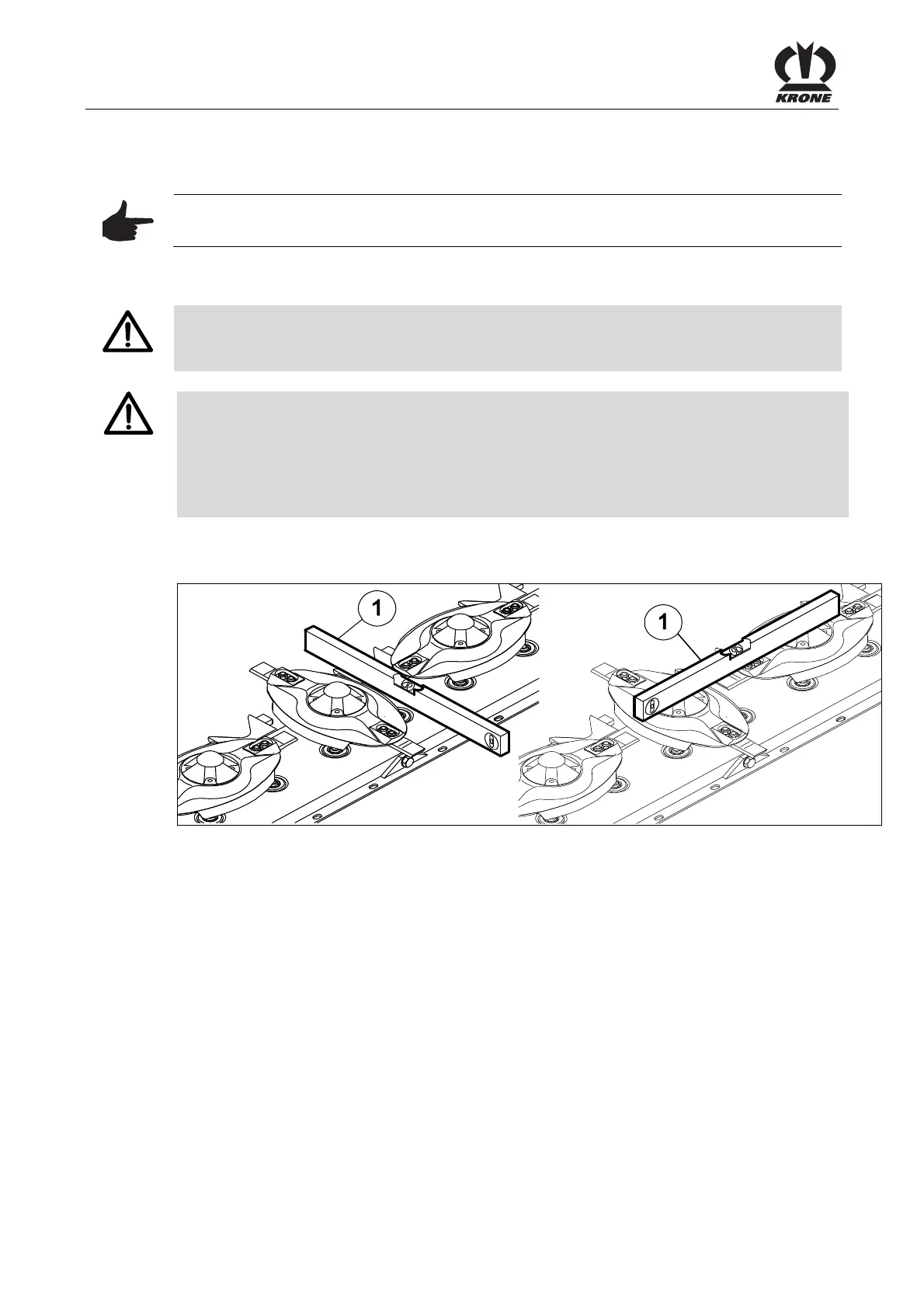

Fig. 61
Oil level check
• Align the cutter bar using a spirit level (1).
Crosswise
• Lay the spirit level on top of the cutting disc hub parallel to the direction of travel.
Lengthwise
• Lay the spirit level (1) on top of two mower discs.
