Maintenance - Gearbox
97
Pos: 103.10 /BA/W artung/Mähwerke/Ölkontr olle Mähholm Easycut @ 3\ mod_1204723206930_78. docx @ 72428 @ @ 1
• Allow the machine to run briefly. Do not leave the driver’s cab until the cutting discs/blade
drums have come to a complete stop
EC-0-003

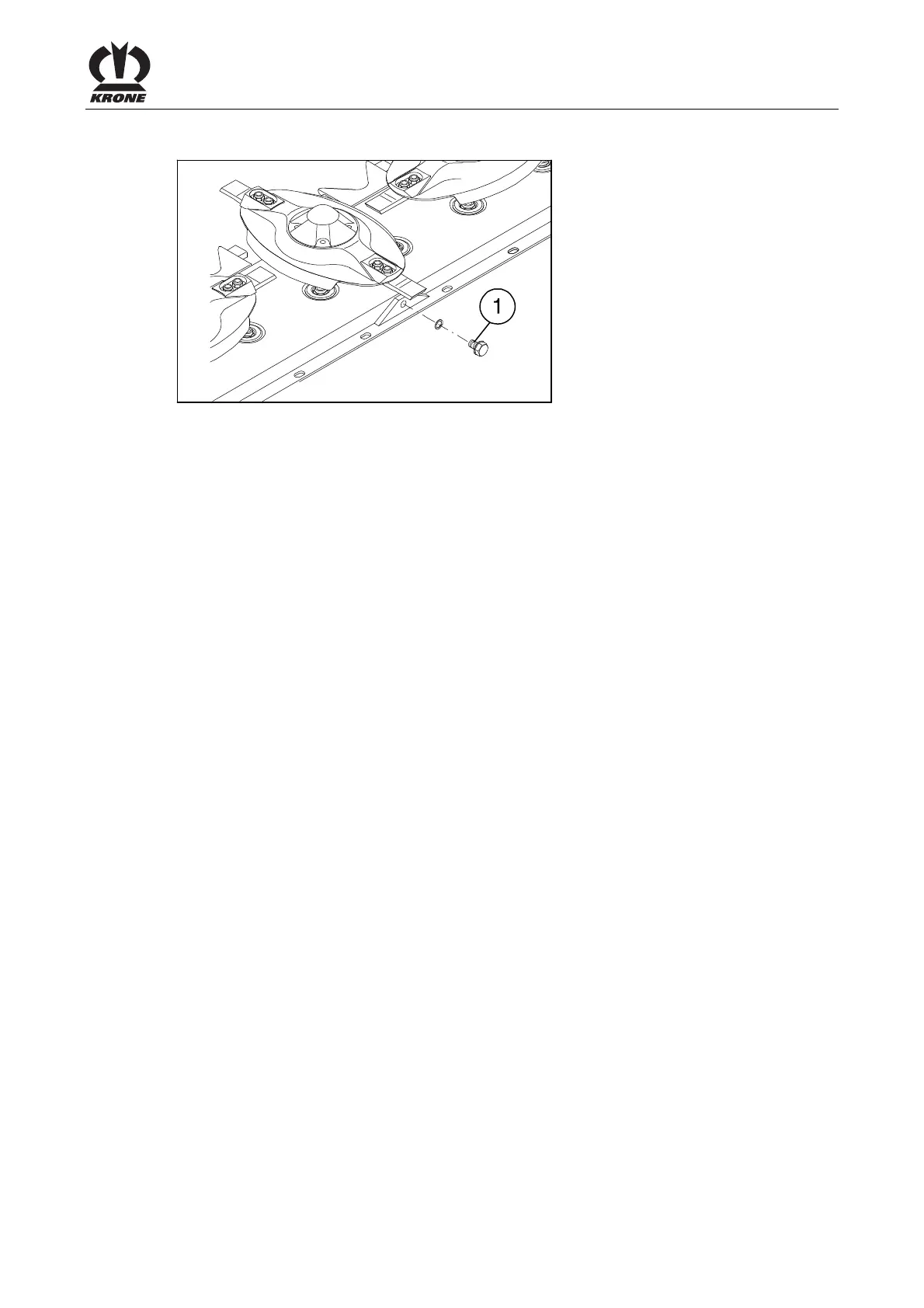

Fig. 62:
Check the oil level before every use
• Remove the oil level inspection screw (1) from the cutting disc hub
• The oil level must be up to the bore hole. If required, top up the oil (SAE 90)
• Screw in the oil level inspection screw (1) again and tighten securely
Pos: 104 /Layout Module /---------------Seitenumbruch--------------- - @ 0\mod_1196175311226_0. docx @ 4165 @ @ 1
