10.3.1 Changing Pulley
Pos: 70.25 /BA/Sic herheit/7. Gefahrenhin weise alt/Mähwerke/ WARNUNG! – Verletzungsgefahr durch unter Federspan nung stehende Bauteil e! @ 252\mod_13971408361 70_78.docx @ 1946524 @ @ 1
WARNING!
When tensioning and releasing, the blade key is under spring tension. If the blade key is
released too early, then it will spring back.
This may result in injuries.
• Do not release the blade key when tensioning and releasing.
Pos: 70.26 /BA/Einste llungen/Mähwerke/ Zetterdrehzahl/ Riemenschibe wechse ln EC F 360 CV/CR Bild @ 245\mod_13960 07294829_78.docx @ 19167 39 @ @ 1
1
2
EC-520-0
4
3
5
6
7
8
8
7

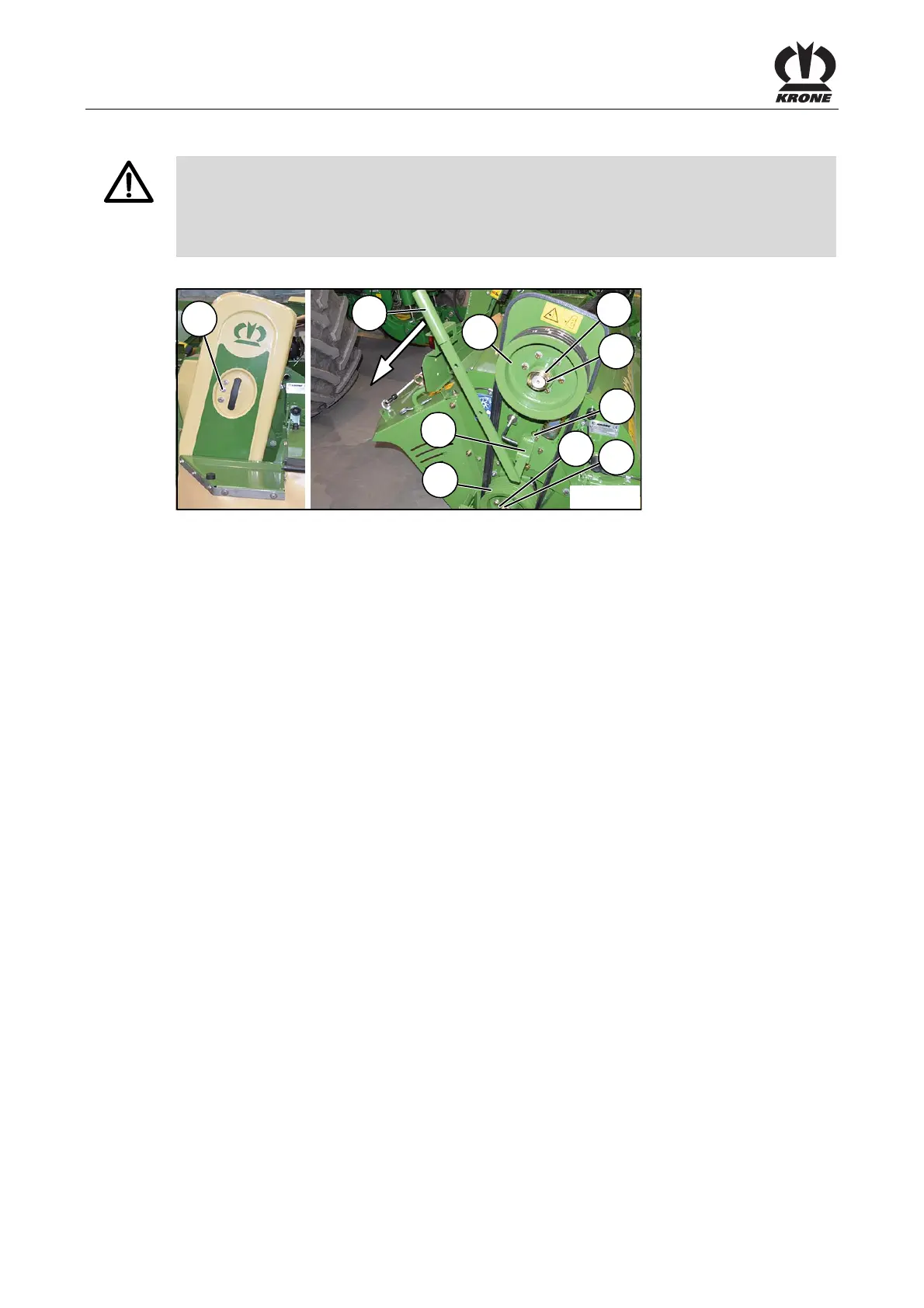

Fig. 44
Pos: 70.27 /BA/Einste llungen/Mähwerke/ Zetterdrehzahl/ Riemenschibe wechse ln EC F 360 CV/CR Text @ 245\mod_13960049 44381_78.docx @ 1916621 @ @ 1
• Unlock the drive guard on the locking screw (1) and remove it.
• Pull out linch pin (2).
• To release the belt drive, insert the blade key (3) in the tensioning device (4) and pull it to
the rear.
• Remove V-belt.
• To pull the pulleys (5) and (6) from the shaft, remove linch pin (7) and discs (8).
