Krone EasyCut F 320 CV - After Shearing off

Maintenance
88
Pos: 75.14 /BA/W artung/Mähwerke/Schersi cherungNach dem Abscher en EasyCut (2015-02-18 10: 50:37) @ 3\mod_120420 5154608_78.docx @ 69944 @ 3 @ 1

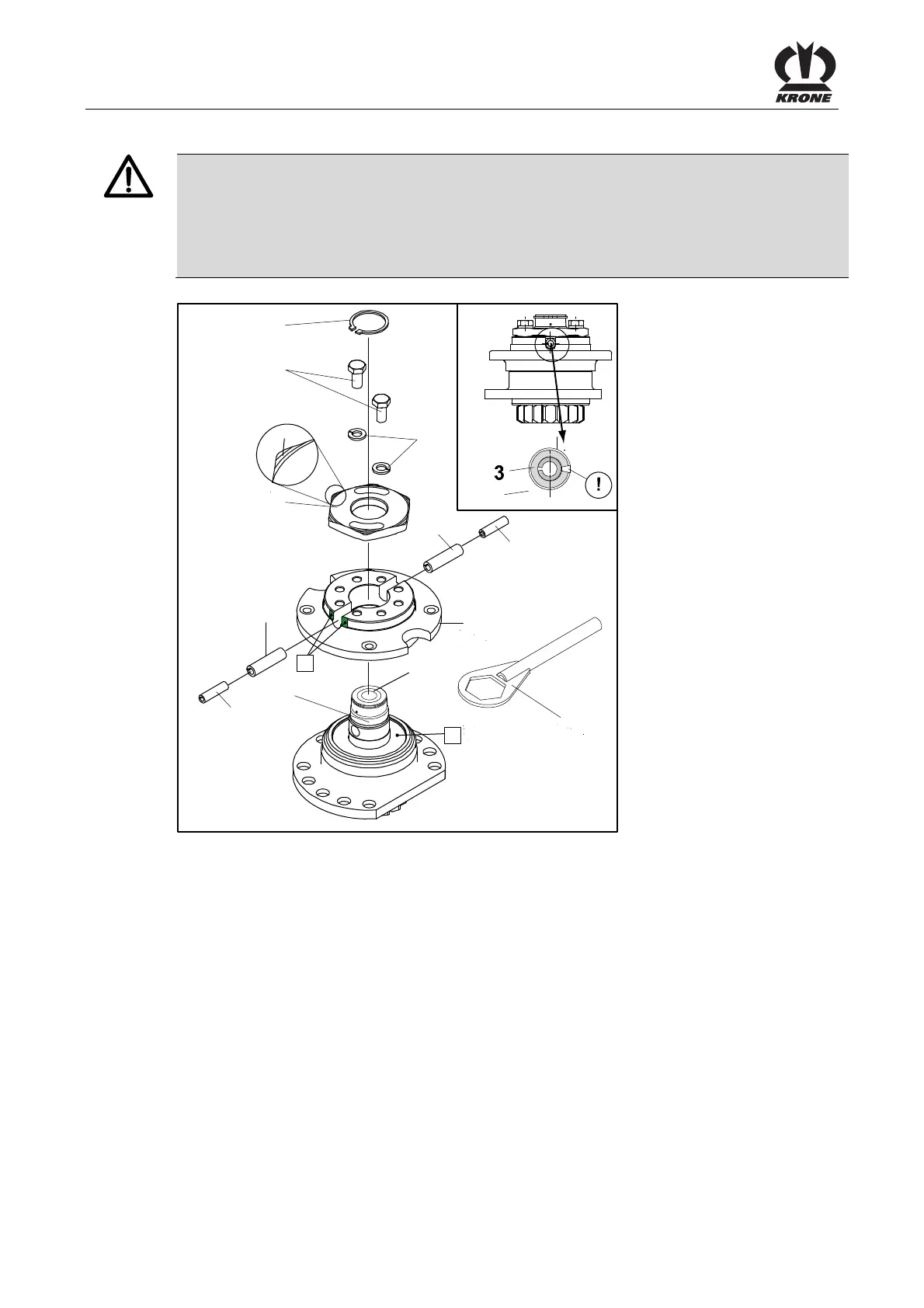

11.6.1 After Shearing Off
Caution! - Correct installation position of the bearing housing not observed.
Effect: Damage to the machine
• Right rotating (RE/RZ) cutting discs and drums always have right-handed pinion shafts and
nuts (no groove mark on the pinion shaft and nut).
• Left rotating (LE/LZ) cutting discs and drums always have left-handed pinion shafts and nuts
(with groove mark on the pinion shaft and nut).
1
3
2
8
7
3
4
c
d
a
9
b
EC-255-0
10
3a
3a
3a
Fig. 54
