Driving and Transport

Pos: 36.12 /BA/Bedienun g /Schwader/Fahren i m Hangbereich_Schwader @ 306\mod_14162293355 69_78.docx @ 2379826 @ 2 @ 1

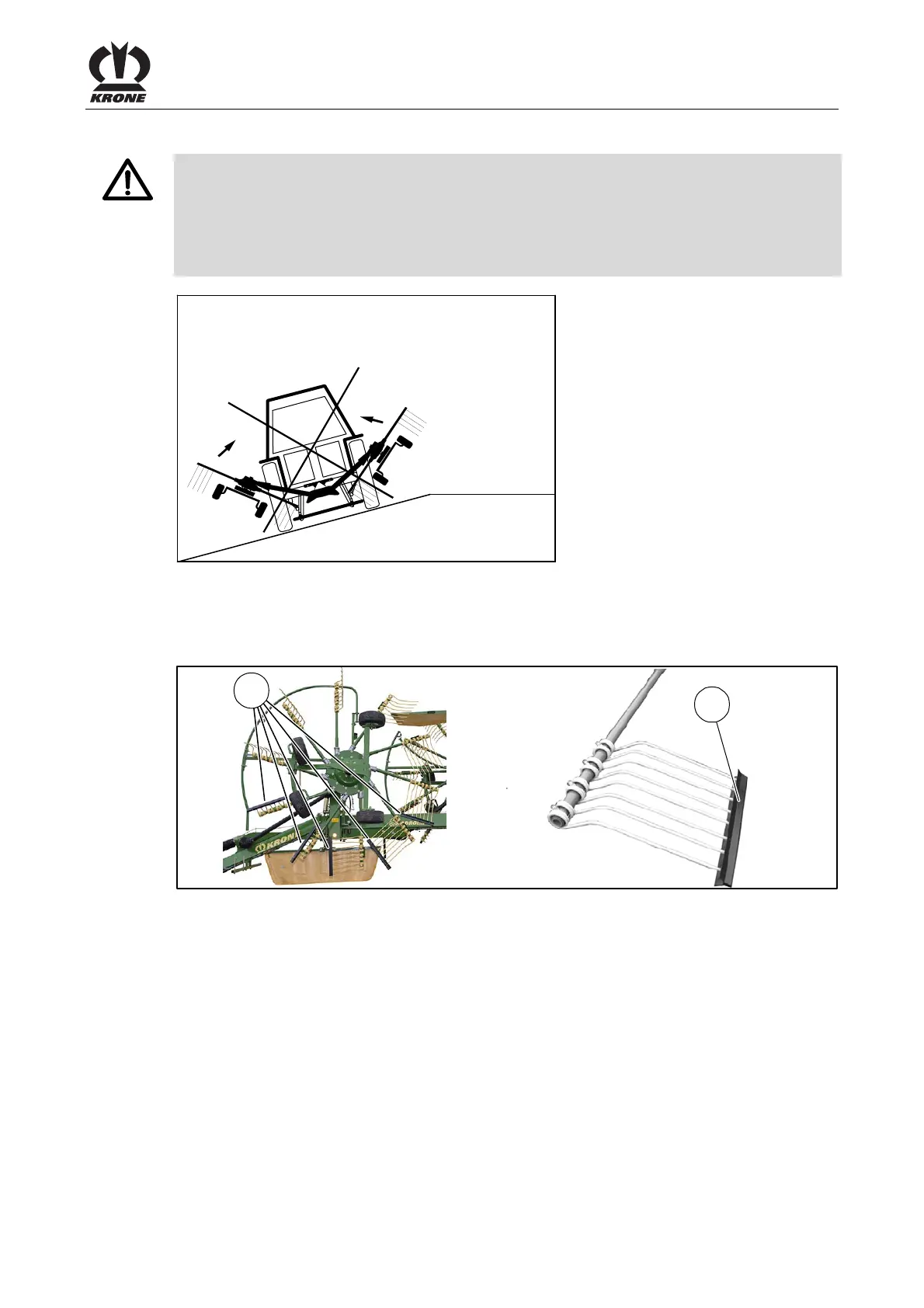

9.2 Driving on Slopes

WARNING!

Travelling on an incline

As long as the machine is used transverse to slope and the outrigger arms are folded in or

folded down, the machine may tilt. Thus there is a risk of serious injuries or death.

• Never move the outrigger arms from working position to transport position or from transport

position to working position as long as the machine is positioned across an incline.

KS102325

Fig. 34

Pos: 36.13 /Layout Module /----------------Leerzeile-------------------- @ 240\mod_1395147357027_0.doc x @ 1890988 @ @ 1

Pos: 36.14 /Übersc hriften/Überschri ften 2/U-Z/ZZinkenschu tze anbringen @ 36\mod_1 263218287043_78.doc x @ 338452 @ 2 @ 1

9.3 Protecting the tine tips (transport position and rotary rake switched off)

Pos: 36.15 /BA/Bedienun g /Schwader/Zinke n / Zinkenarme/Zinkensc hutze anbringen Bild S W 807-1 bis 810-1, 850 @ 149\ mod_1361447911704_78.doc x @ 1330163 @ @ 1

SW9070061

Fig. 35

Pos: 36.16 /BA/Bedienun g /Schwader/Zinke n / Zinkenarme/Zinken un ter 2 m mit Zinkenschutze sicher n Text_807-1 bis 810-1, 850, 907-1 @ 149\mod_1361 449591007_78.doc x @ 1330282 @ @ 1

The tines must be fitted with tine guard that is lower than 2 m in transport position or when

parking the machine. The tine guards are located on the front support (left-hand side of the

machine).

• Raise the rotor arms into transport position.

• Turn off the tractor and secure it against the possibility of rolling back.

• Insert the tine guards (1) onto the tines.

• Repeat this process for the other machine side.
