Operation
90
Pos: 38.48 /Übersc hriften/Überschri ften 2/A-E/AAuslegear me in Transportstell ung anheben @ 303\mod_141412 9961702_78.doc x @ 2356737 @ 2 @ 1
10.14 Raising Outrigger Arms into Transport Position
Pos: 38.49 /BA/Sic herheit/7. Gefahrenhin weise alt/Schwader /Gefahr beim Hochschwenke n der Kreisel @ 152\mod_ 1362740137336_78.doc x @ 1357912 @ @ 1
DANGER! - Unexpected movement of the machine
Effect: Danger to life or serious injuries.
Before swivelling the rotors up, ensure that nobody is near the machine.
Pos: 38.50 /BA/Sic herheit/7. Gefahrenhin weise alt/Schwader Achtung - Ausheben der Kr eisel Zapfwelle abscha lten @ 379\mod_1443716746754 _78.docx @ 2746404 @ @ 1
CAUTION!
Before swivelling into transport position, turn off the PTO shaft.
Before lifting the rotors from the headland position, turn off PTO shaft and wait for rotors to
come to a standstill.
Ensure that nobody is in the swivel range of the rotors.
Ensure that nobody is in the swivel range of the chassis.
Pos: 38.51 /BA/Bedienun g /Schwader/Krei selarme senken/heben/ Kreiselarme heben SW 807-1 bis 810-1_Bild @ 148\mod _1361429740444_78.d ocx @ 1327974 @ @ 1
SW9070060
2
1
1
1

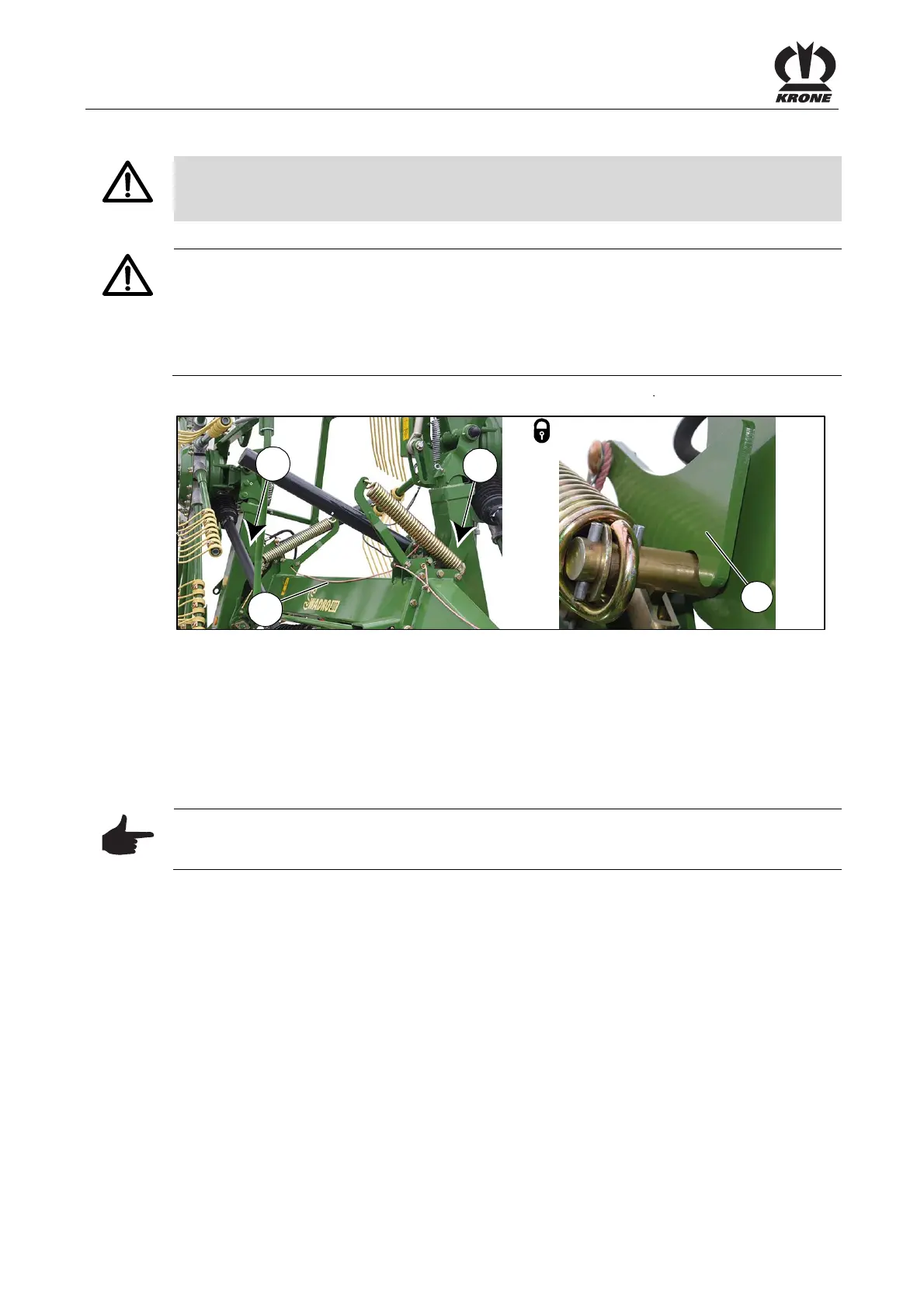

Fig. 52
Pos: 38.52 /BA/Bedienun g /Schwader/Krei selarme senken/heben/ Kreiselarme heben Swadr o TS 620 (Twin)_TS 680 (Twin) _TS 740 (Twin) @ 246\mod_139633 3016895_78.doc x @ 1921165 @ @ 1
Turn on the tractor.
Pull the operating cable (2) and keep it under tension to raise the lockings (1).
Activate the single-action control unit until the rotors are located in transport position.
Release the operating cable.
Switch control unit to float position to engage the lockings in the retaining bolts.
Move all hydraulic control units to neutral position.
Pos: 38.53 /BA/Bedienun g /Schwader/Krei selarme senken/heben/ Hinweis Achten Sie auf die Tra nsportverriege lung @ 77\mod_13101107 10995_78.docx @ 667836 @ @ 1
Note
Make certain the transport locks engage correctly and the actuating rope is not tight. Perform a
visual inspection to ensure the locks (1) have engaged correctly.
