Krone Swadro TS 620 Twin User Manual

Operation
77
Pos: 38.11.5 /Überschr iften/Überschr iften 3/A-E/B/Bei Ausführung Zinkenarm klappb ar @ 77\mod_13100506766 69_78.docx @ 667550 @ 3 @ 1
10.3.1 For design with collapsible tine arm
Pos: 38.11.6 /BA/Bedi enung /Schwader/ Zinken / Zinkenarme/Zinkenar me in die Arbeitsste llung schwenken SW 807- 1 bis 810-1, 850 @ 152\mod_1362727 593960_78.doc x @ 1357185 @ @ 1
3
2
SW9070081
1
2
1

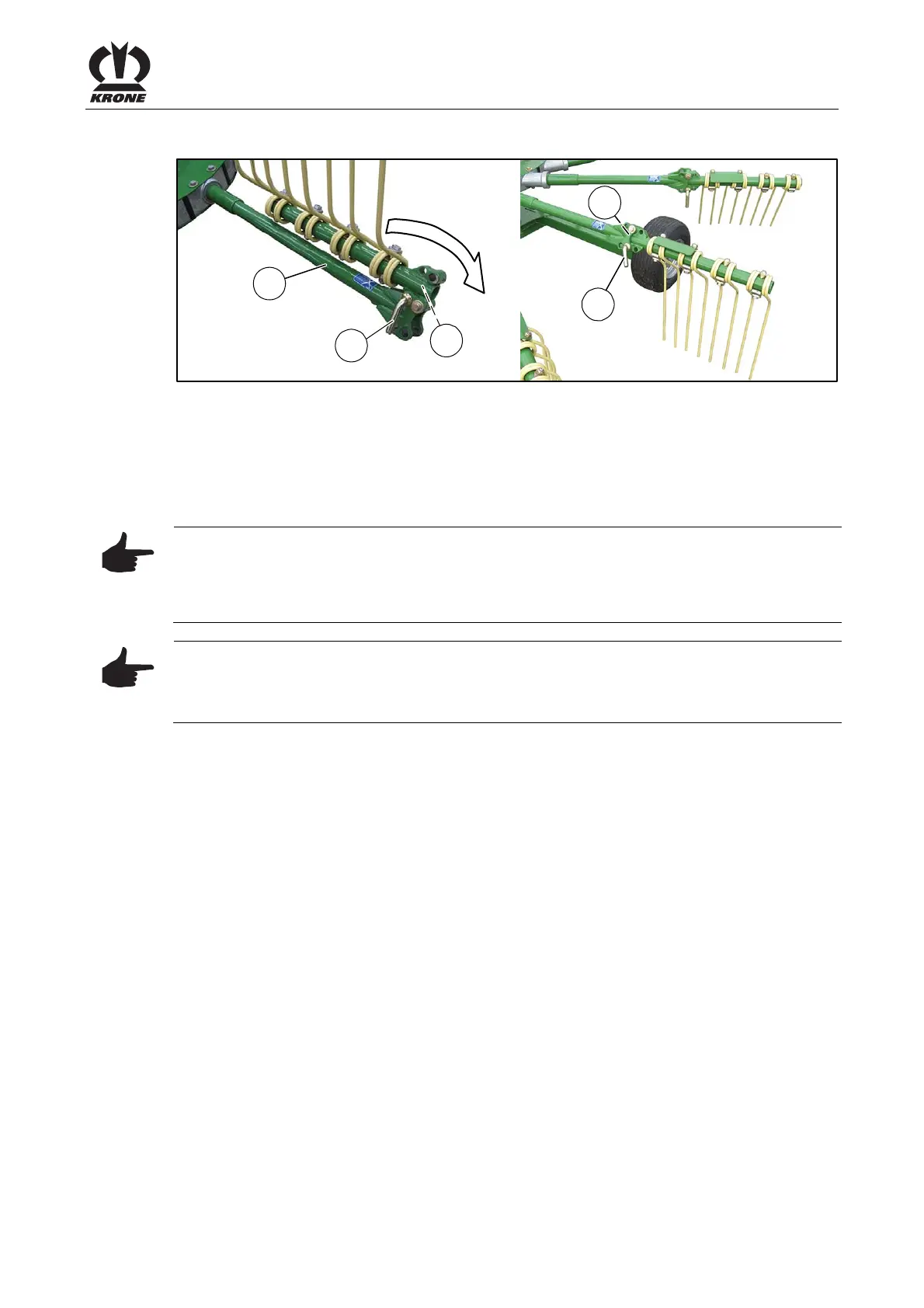

Figure 40
• Pull out the linch pin (1).
• Remove the bolts (2).
• Swivel tine arms (3) to working position: the rotor must be turned so that the tine arms do
not collide with the protection when swivelling.
• Insert the bolts (2) and secure with the linch pin (1).
Note
Always insert bolts (2) from above when the tine arms are in front of the rotors (tines touch the
ground).
Take care that the linch pin (1) is always properly engaged (the ring of the linch pin must be
inserted in the groove of the shaft).
Note
Swivel the right collapsible tine arm on the machine side in sequence from behind forwards and
the left collapsible tine arm on the machine side in sequence from the front backwards to the
working position.
