Operation
89
Pos: 38.44 /Übersc hriften/Überschri ften 2/A-E/A/Abstel lstütze in Transportst ellung hochschwenken @ 10\ mod_1221637347634_78. docx @ 135539 @ 2 @ 1
10.13 Swivelling parking support into transport position
Pos: 38.45 /BA/Inbetr iebnahme/Schwader /Abstellstütze hoc hschwenken_Bild_S wadro TS 620 (Twin), TS 680 (Twin) , TS 740 (Twin) @ 234\mod_139 4101818836_78.doc x @ 1866207 @ @ 1
1
SW9070058_1
1
2

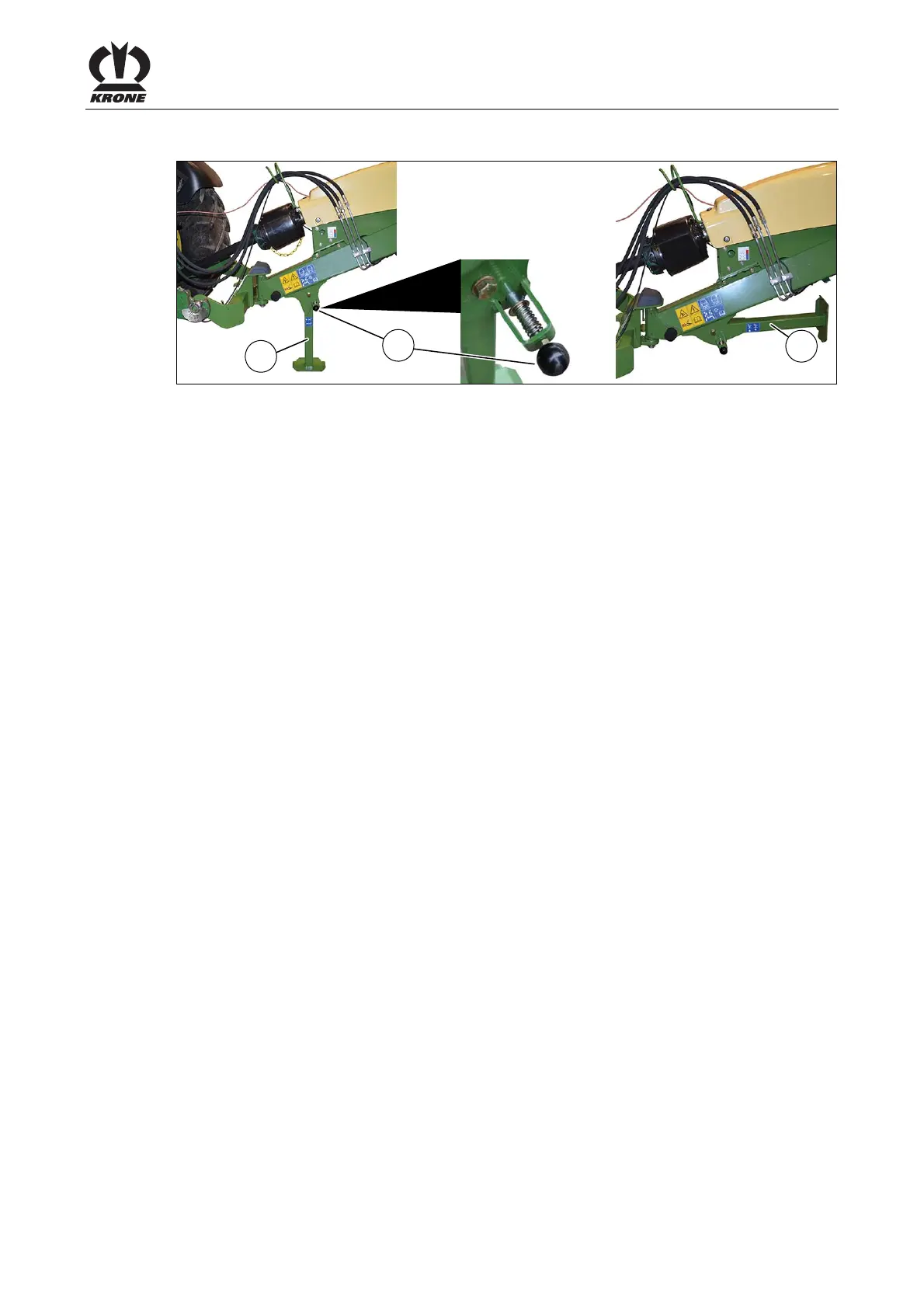

Fig. 51
Pos: 38.46 /BA/Inbetr iebnahme/Schwader /Abstellstütze hoc hschwenken @ 156\mod_13639 33455290_78.doc x @ 1379305 @ @ 1
• Raise the machine until the parking support (1) can be swivelled to the rear.
• Turn off the tractor and secure it against the possibility of rolling back.
• Pull the tension bar (2), swivel the parking support (1) to the rear by 90° and fix it in place in
this position by using the tension bar.
Pos: 38.47 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0. docx @ 4165 @ @ 1
