Krups EF 472 User Manual

ServiceManualEF472
17
R E P A I R S
1. Removethewatertank(21),driptray(29)withcuptray(28)andcapsulecontainer
(26).
2. Opentheclosinghandle(56)
3. Removethecoffeeoutlet(25).Thecoffeeoutletisattachedwithtwolatchinglevers
onbothsides(a).
Pressdownonbothsidesofthecoffeeoutletwithyourthumbandindexfingerand
removeit(seethedetails).
Alternative disas-
sembly of the cof-
fee outlet.
Shouldanyproblemsoccur,thenthecoffeeoutletcanbedisassembledasfollows(see
previousillustration):
• Pressthecoffeeoutletdownwardsuntilontheleftsideofthegapinthefrontpanel
(30)thegroove(b)becomesvisible.
• Placethescrewdrivertipinthegroove,carefullyprythecoffeeoutlet(25)looseand
removeit.

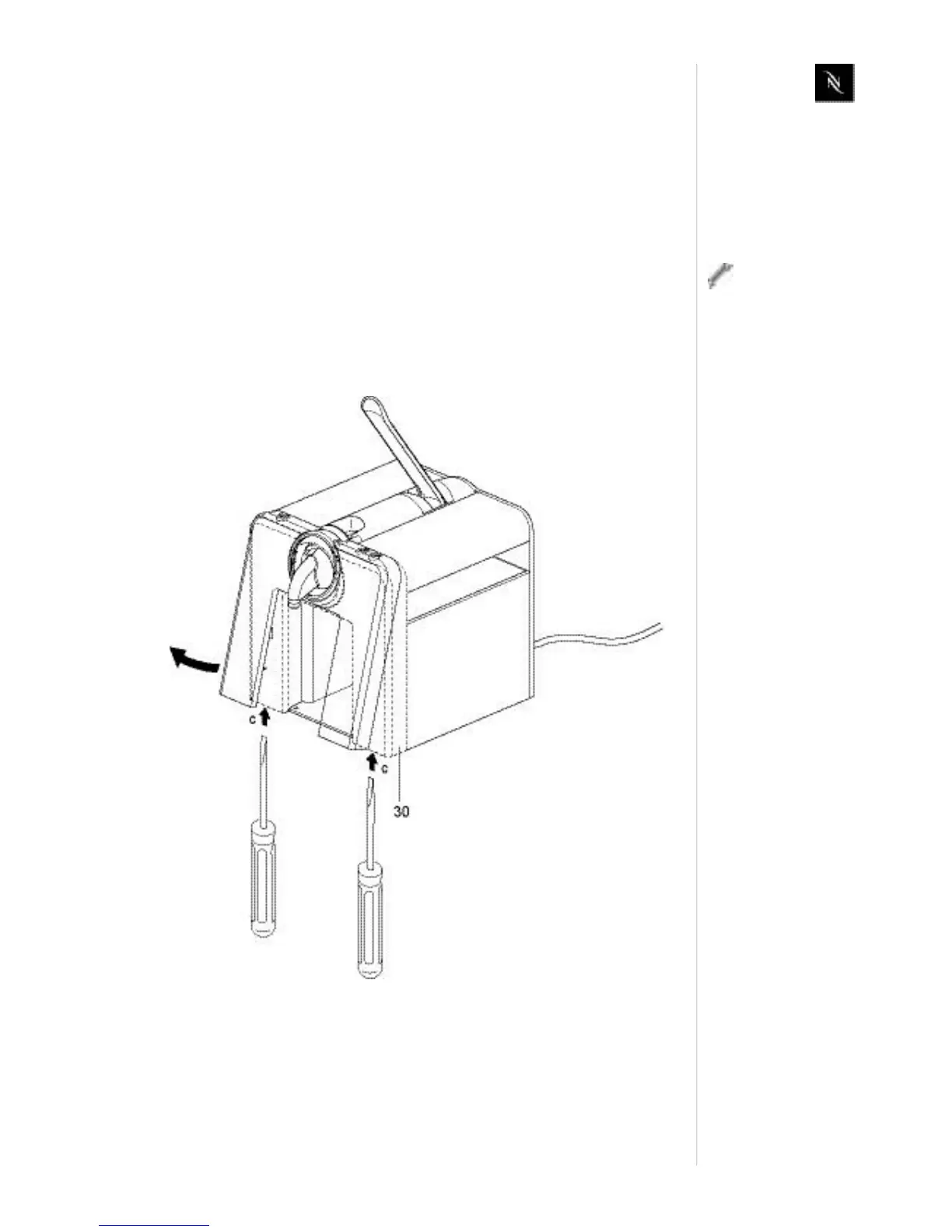

4. Removethefrontcover(30):
Firstloosenthetwolatchinglocksonthebottom.
Placeascrewdrivertipalternatelyinbothslots(c)onthehousingbaseandpress
hardtoloosenthelockinglatches.Simultaneouslypullouttheundersideofthe
frontcoverofthesameside.
