Krups EF 472 User Manual

ServiceManualEF472
6
S T R U C T U R E

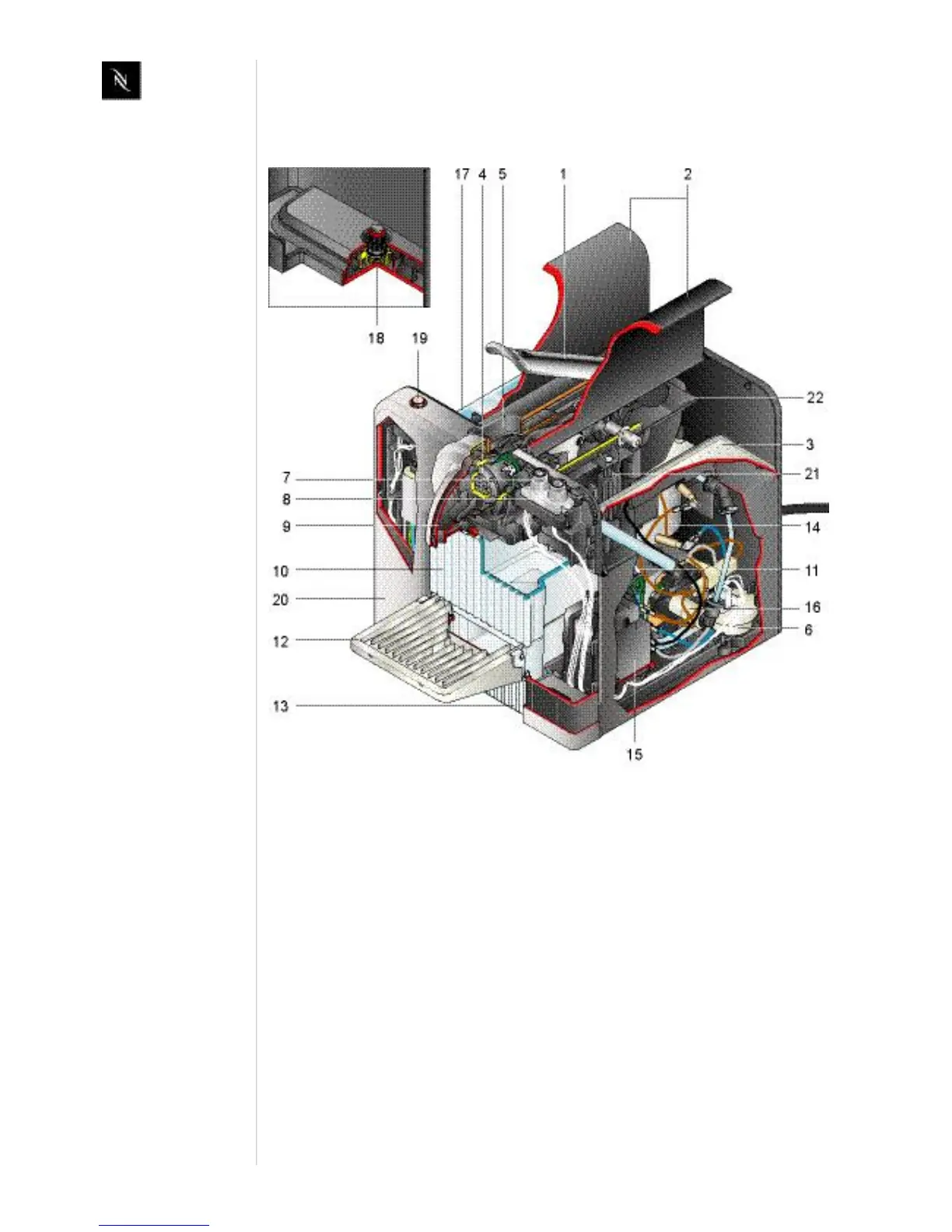

2.2 Overview
1) Closinghandle
2) Cupcover,foldable
3) Warmingplateortray
(dependsonmodel)
4) CompactBrewingUnit(CBU)
5) Capsuleinlet
6) Flowmeter
7) "Smallcup"button,backlighted
8) "Largecup"button,backlighted
9) Coffeeoutlet
10) Capsulecontainer
11) Lightguidetothecapsulecontainer
12)Cuptray,foldable
13)Driptray
14)ThermoblockTB2003
15)Mainboardwithhousing
16)PumpCP.04.098.0/ST/S/P
17)Watertankwithvalve,foldable
18) Connector(belowthewatertank)
19) ConnectorOn/Offswitch
20)Frontcover
21)Supportforcompactbrewingunit
22)Driptray
