Krups EF 472 - Water Circuit Diagram

ServiceManualEF472
7
S T R U C T U R E

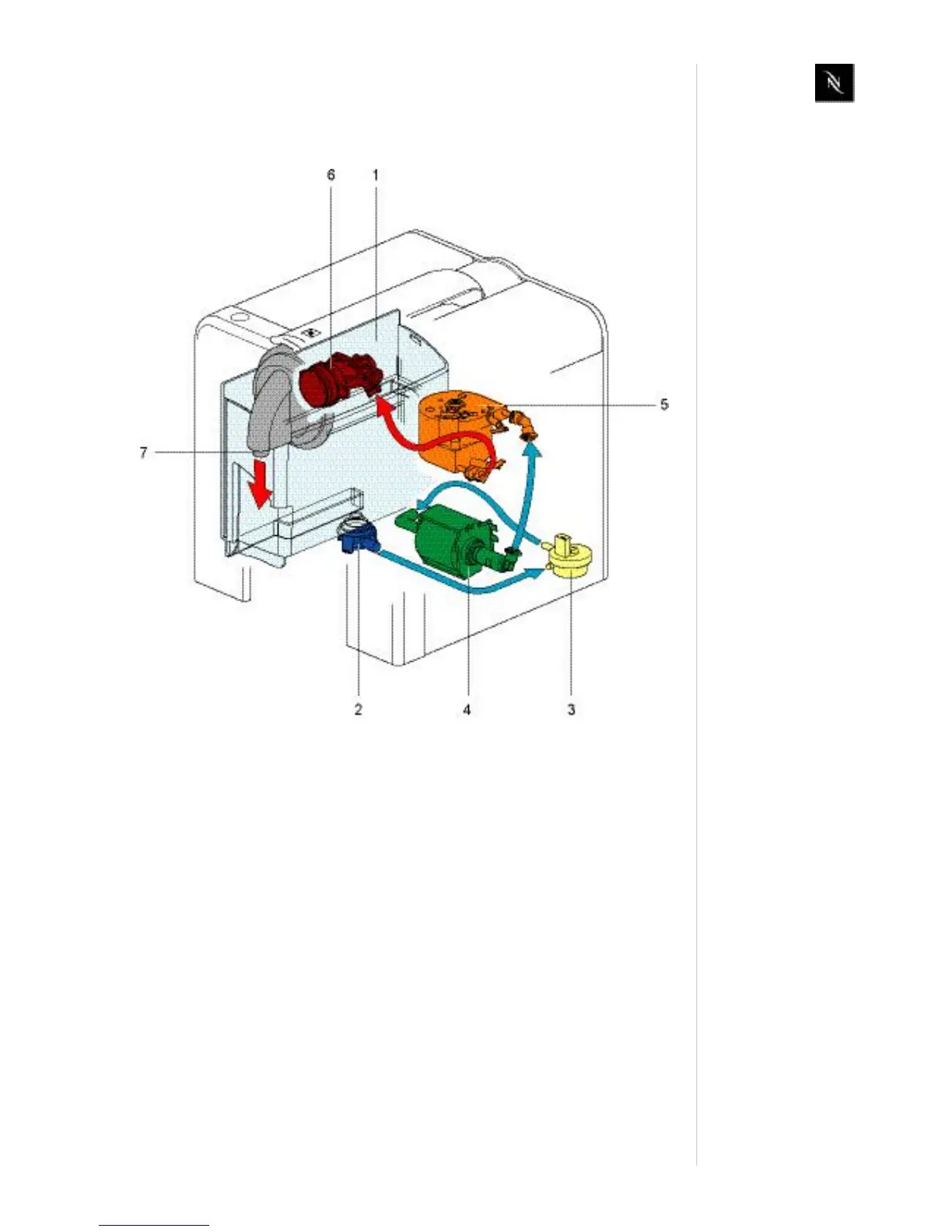

2.3 Watercircu it
1) Watertank
2) Watertankvalveandconnector
3) Flowmeter
4) Pump
5) Thermoblock
6) CompactBrewingUnit(CBU)
7) Coffeeoutlet
