ServiceManualEF472
24
R E P A I R S
5.5 Replacingthepumpwiththefin ewirefuse

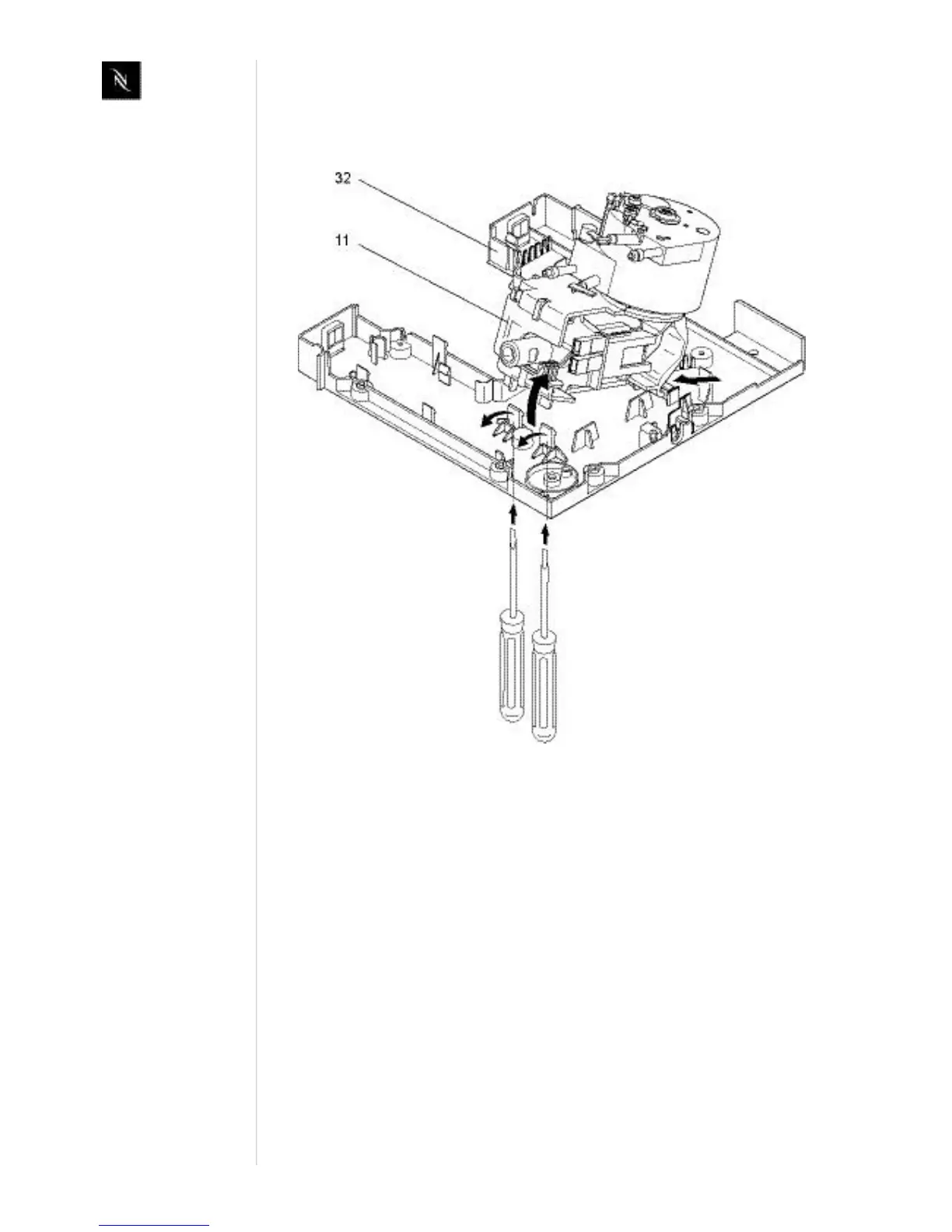

Repairtipforthe fluidsystemsupport
• Removethefluidsystemssupport(11)fromthefloor(32):
insertthetipofthescrewdriverintotheslitsinthehousingbaseandpressand
lockinglatchestooneside.Simultaneouslyliftthesupport(11).Afterlooseningboth
lockinglatches,tiltupthesupport(11)andpullitoutoftheanchoringontheother
side.
