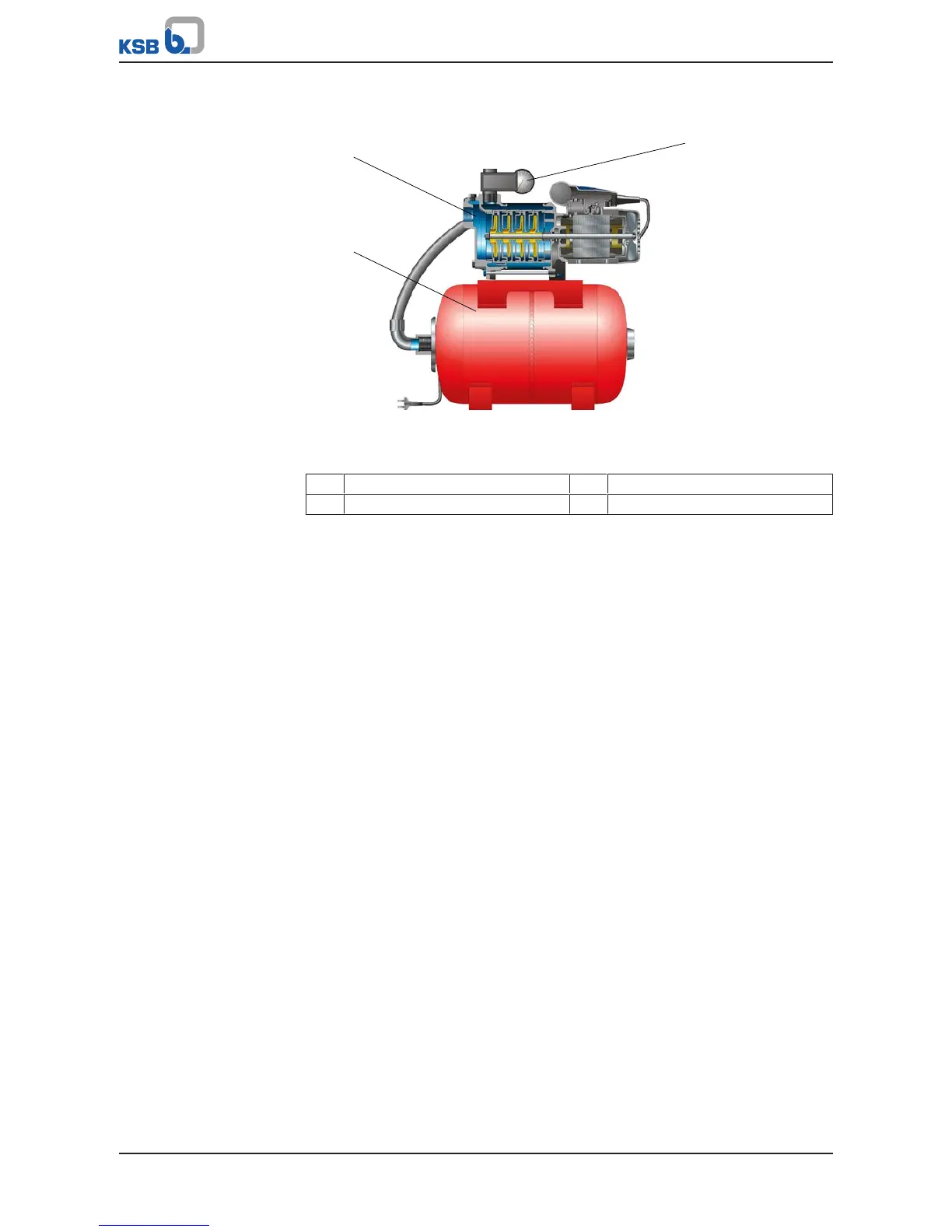

Fig.4: Sectional drawing of Multi Eco-Top
1 Pump 2 Membrane-type accumulator
3 Pressure gauge
Function of
Multi Eco-Top
When the system pressure drops, the pump (1) is automatically started via the
pressure switch (3). When the required pressure has been reached, the pump is
stopped automatically.
The membrane-type accumulator (2) serves to limit the frequency of pump starts by
providing smaller amounts of water from the volume stored.
4.6 Scope of supply
Depending on the model, the following items are included in the scope of supply:
▪ Pump
▪ Drive
Multi Eco E and D:
▪ Multi Eco pump
▪ Without power cable (connected via motor's terminal strip)
Multi Eco P:
▪ Multi Eco pump
▪ Power cable (length: 1.5 m) and CEE plug (2 phases + earth conductor)
▪ Handle
Multi Eco-Pro:
▪ Multi Eco pump
▪ Power cable (length: 1.5 m) and CEE plug (2 phases + earth conductor)
▪ Controlmatic E.2 automatic control unit with glass-fibre reinforced polyamide
housing and integrated pressure gauge, with cables for pump and mains
connection
Multi Eco-Top:
▪ Multi Eco pump
▪ With single-phase AC motor (sizes 36 and 65 also available with three-phase
motor)
▪ Membrane-type accumulator, pressurised at the factory
▪ Pressure switch for automatic operation, factory-set
