KSB Multi Eco - Installation Example; Multi Eco-Pro

9 Related Documents
52 of 60
Multi Eco
Part No. Description Part No. Description
554 Washer 932 Circlip
571 Bracket
9.2 Installation example
9.2.1 Multi Eco-Pro

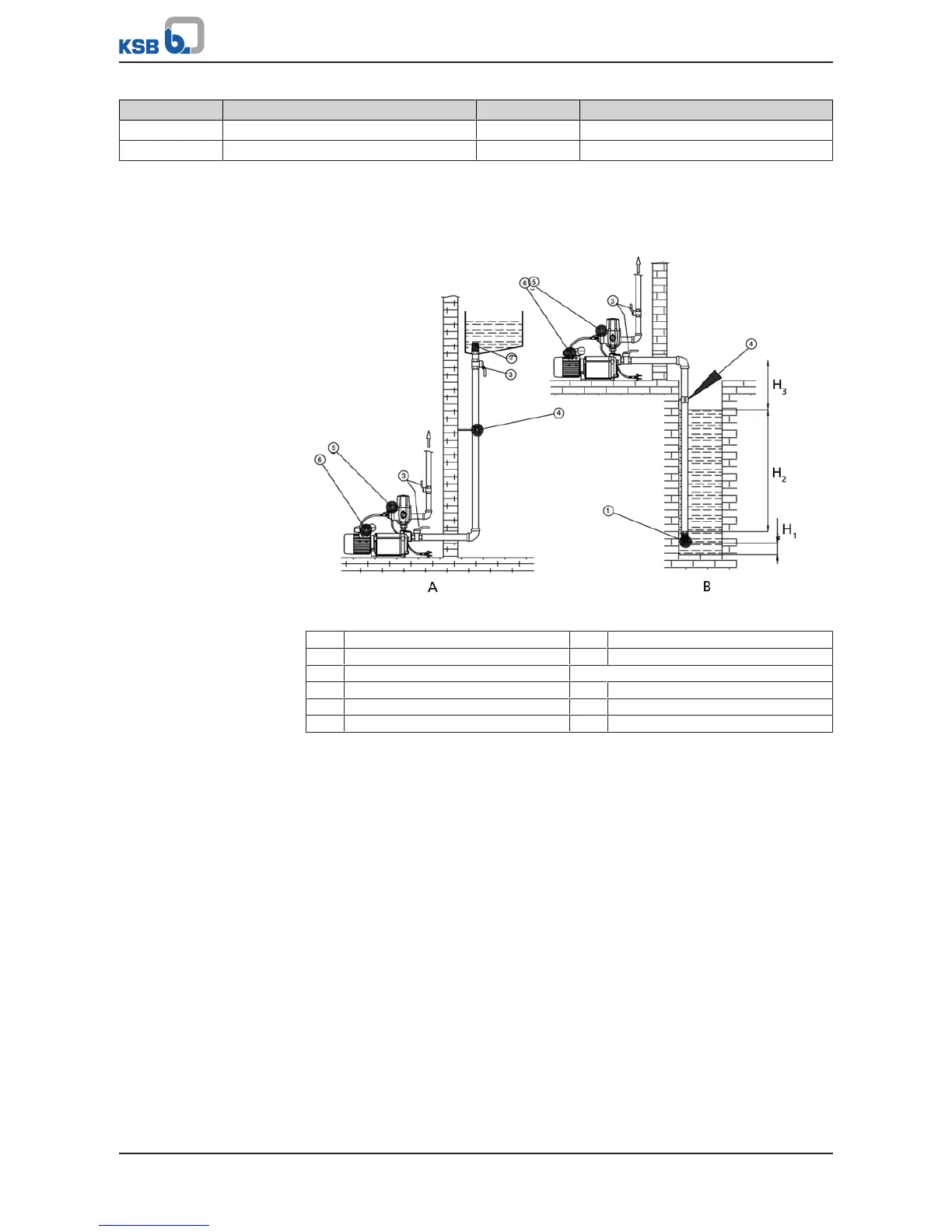

Fig.8: Installation drawing of Multi Eco-Pro
A Suction head operation B Suction lift operation
H
1
Minimum 0.3 m H
2
Minimum 0.1 m
H
3
Maximum 8 m
1 Suction strainer with foot valve 2 Suction strainer
3 Gate valve 4 Pipe clamp
5 Automatic control unit 6 Pump set
