7 Servicing/Maintenance
45 of 60
Multi Eco

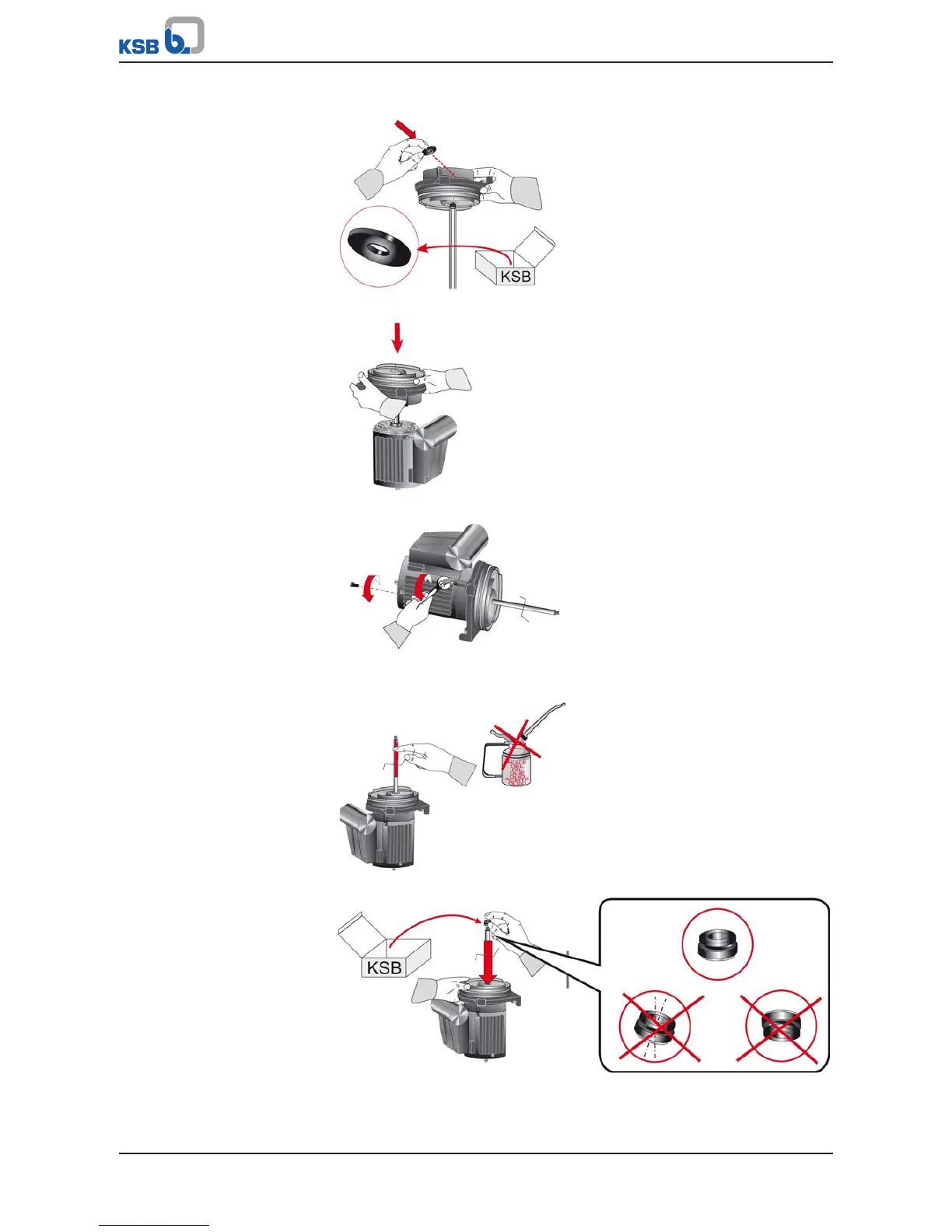

7. Fit new thrower 270 on the shaft.
8. Mount the discharge cover on the motor.
9. Tighten the screws fastening the discharge cover to the motor housing.
10. Wet the shaft with soapy water for easier re-assembly of the rotating part of
mechanical seal 433.
11. Slide on the rotating part of mechanical seal 433.
