KSB RPH - Page 63

D01042/3
931.02
260
550.87
906
411.31
503.01
502.01
102
904.07
904.04
940.01
904.38
916.16
902.01
920.01
161
904.41
330
914.01
400.01
360.01
913.03
411.32
642
169-10
638
931.01
920.21
901.37
831.02
904.42
412.22
904.37
210
485.02
940.02
901.20
920.20
710.21
904.03
724.01
723.21
411.41
744.07
550.20
230
904.06
723.23
902.42
550.42
920.42
411.01
503.02
502.02
542.02
411.10
916.18
916.19
412.01
901.30
412.31
902.15
920.02
901.31
920.15
902.02
320.02
322.01
916.46
525.09
507.01
832
550.74
904.43
901.80
360.02
507.02
901.84
a)
b)

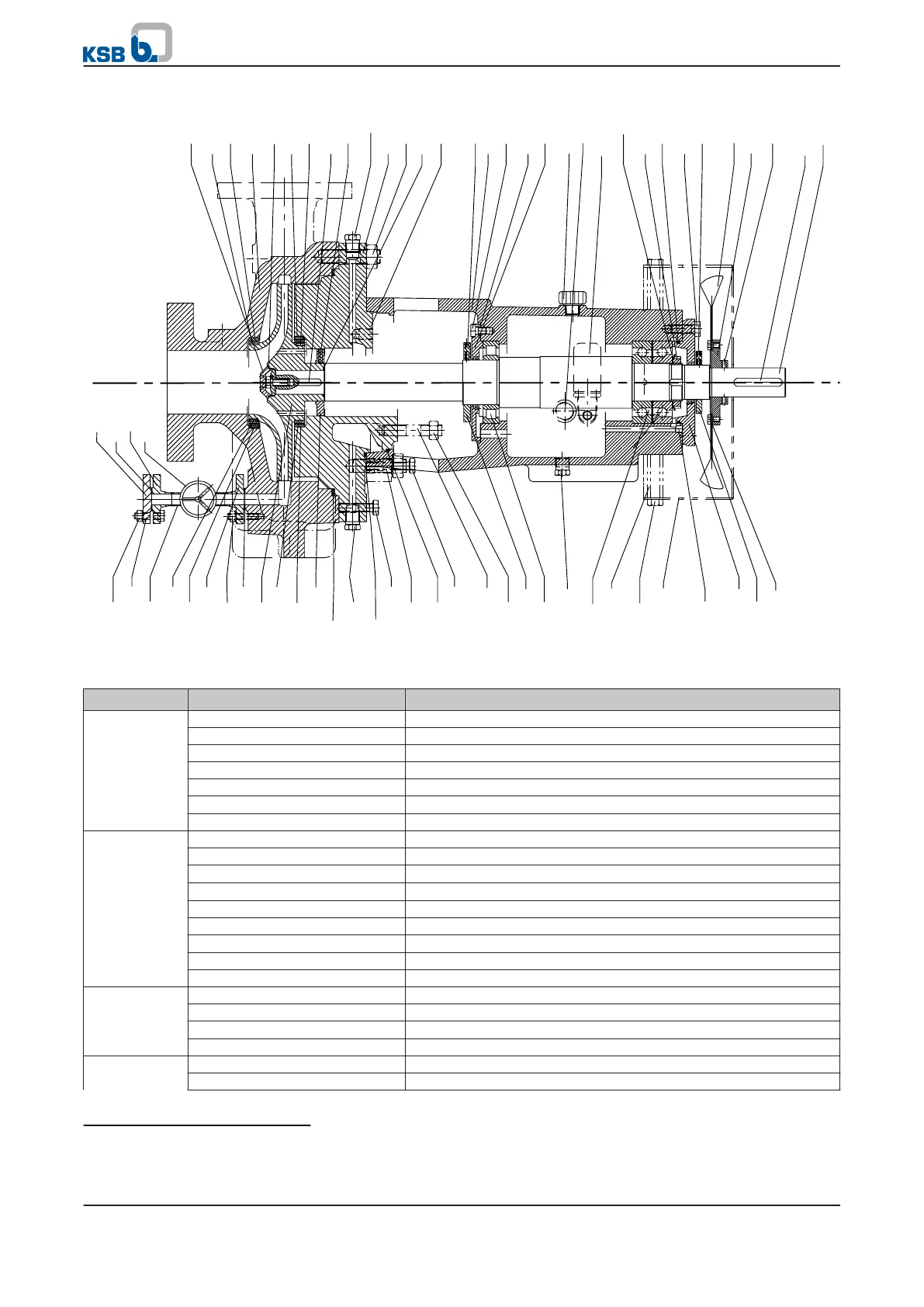

Fig. 15: Bearing brackets B06 and B07, a) uncooled and b) cooled
Table 24: List of components
Part No. Comprising Description
102 102 Volute casing
411.10 Joint ring
502.01 Casing wear ring
902.01 Stud
904.03 Grub screw
916.01
25)
Plug
920.01 Hexagon nut
161 161 Casing cover
411.10 Joint ring
412.01/.31
26)
O-ring
502.02
33)
Casing wear ring
901.30 Hexagon head bolt
902.15 Stud
904.04
33)
Grub screw
916.16 Plug
920.15 Hexagon nut
210 210 Shaft
920.21 Slotted round nut
931.01 Lock washer
940.01/.02 Key
230 230 Impeller
931.02 Lock washer
25)
Not shown in drawing
26)
For cooled design only
