CAUTION:
Risk of injury through lifting or dropping the system. The inverter and battery are
heavy. There is risk of injury if the inverter or battery is lifted incorrectly or dropped
during transport or when attaching to or removing from the wall.
Lifting and transporting the inverter and battery must be carried out by more
than 2 people.
WARNING
Do not install the system in any environment of temperature below -10°C or over
50°C and in which humidity is over 90%.
Do not touch the system with wet hands.
Do not put any heavy objects on top of the system.
Do not damage the system with sharp objects.
Do not install or operate the system in potentially explosive atmospheres or
areas of high humidity.
Do not mount the inverter and the battery pack in areas containing highly
flammable materials or gases.
If moisture has penetrated the system (e.g. due to a damaged enclosure), do not
install or operate the system.
Do not move the system when it is already connected with battery modules.
Secure the system to prevent tipping with restraining straps in your vehicle.
A certified ABC fire extinguisher with minimum capacity of 2kg must be carried
along when transporting.
It is totally prohibited to smoke in the vehicle as well as close to the vehicle when
loading and unloading.
For the exchange of a battery module, please request for new hazardous goods
packaging if needed, pack it and let it be picked up by the suppliers.
In case of contact with electrolyte, rinse the affected areas immediately with
water and consult a doctor without delay.
4xM5*12
2xMC4
1xUser Manual
1xCollector
1xCT Connector
BluE-S 5000D/BluE-S 3680D
Risk of chemical burns from electrolyte or toxic gases. During standard operation, no
electrolyte shall leak from the battery pack and no toxic gases shall form. Despite
careful construction, if the Battery Pack is damaged or a fault occurs, it is possible that
electrolyte may be leaked or toxic gases formed.
Check the following parts list to ensure it is complete.
Kstar delivers a total system separately on site to client, this consists of:
07
www.kstar.com
08
www.kstar.com
The transportation of Kstar BluE-H5/H3 must be made by the manufacturer or
an instructed personal. These instructions shall be recorded and repeated.
1xCT and
com cable
DANGER
Do not touch uninsulated cable ends.
Do not touch the DC conductors.
Do not open the inverter and battery.
Do not wipe the system with damp cloth.
Have the system installed and commissioned by qualified people with the
appropriate skills only.
Prior to performing any work on the inverter or the battery pack, disconnect the
inverter from all voltage sources as described in this document.
Danger to life due to high voltages of the PV array, battery and electric shock. When
exposed to sunlight, the PV array generates dangerous DC voltage which will be
present in the DC conductors and the live components of the inverter. Touching the DC
conductors or the live components can lead to lethal electric shocks. If you disconnect
the DC connectors from the system under load, an electric arc may occur leading to
electric shock and burns.
1.5 General Precautions

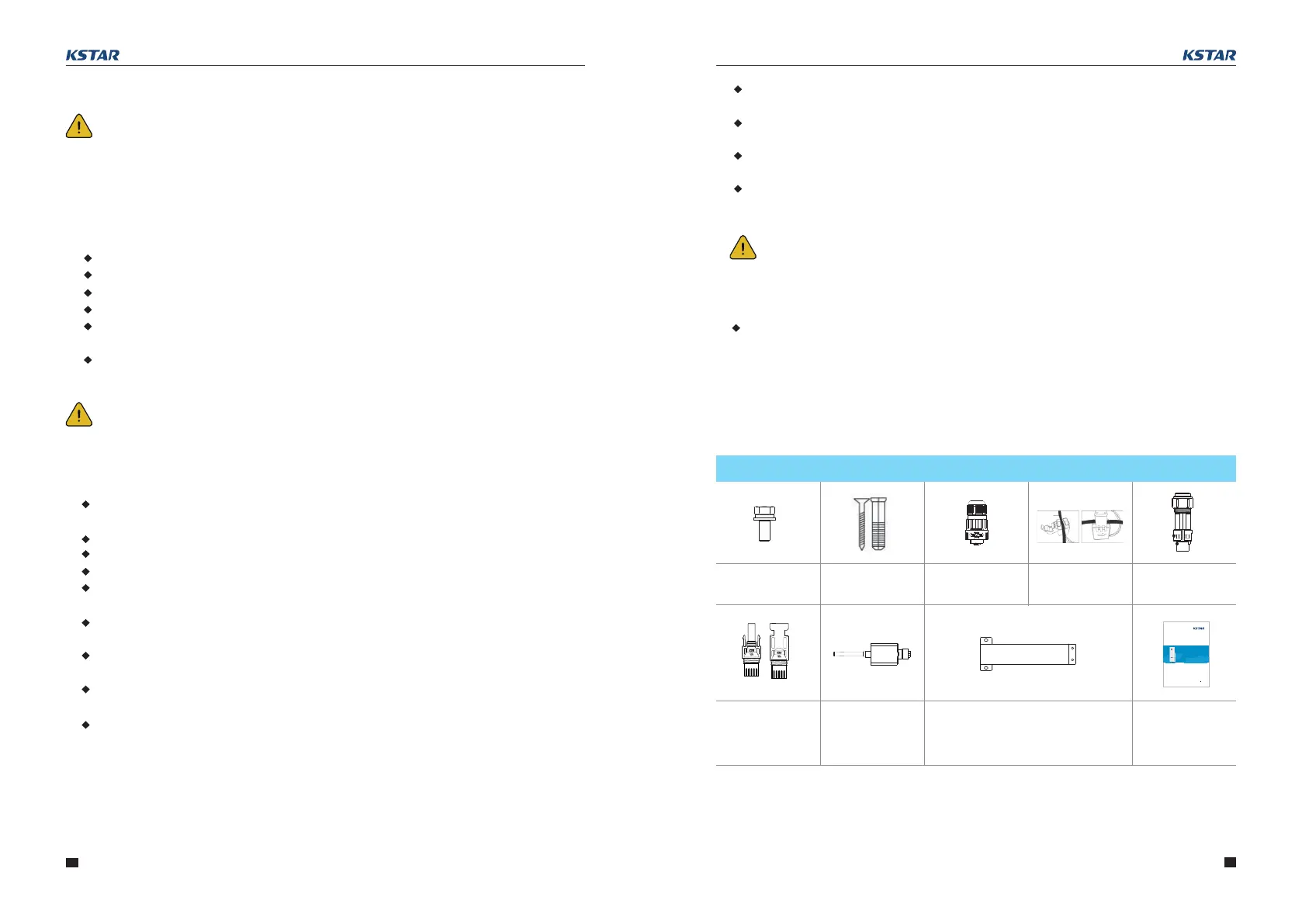

1.6 Parts List
User Manual User Manual
2xAC Collector
1x Mounting Panel
2xφ8*60
202011 Ver:1 .0
INSTALLATION, OPERATION &
MAINTENANCE MANUAL
KSTAR B luE-H 5/H3
ENERGY STORAGE SYSTEM
