Connect the BAT communication cable of the cable box from Step 13 to the
topmost battery at the right side. Then use the communication cable supplied with the
batteries to connect the batteries to each other via the respective connectors on the left side.
After you have connected all the modules together, close all covers (if you want to connect
further battery modules, you must mount them before closing).
Step 9
27
28

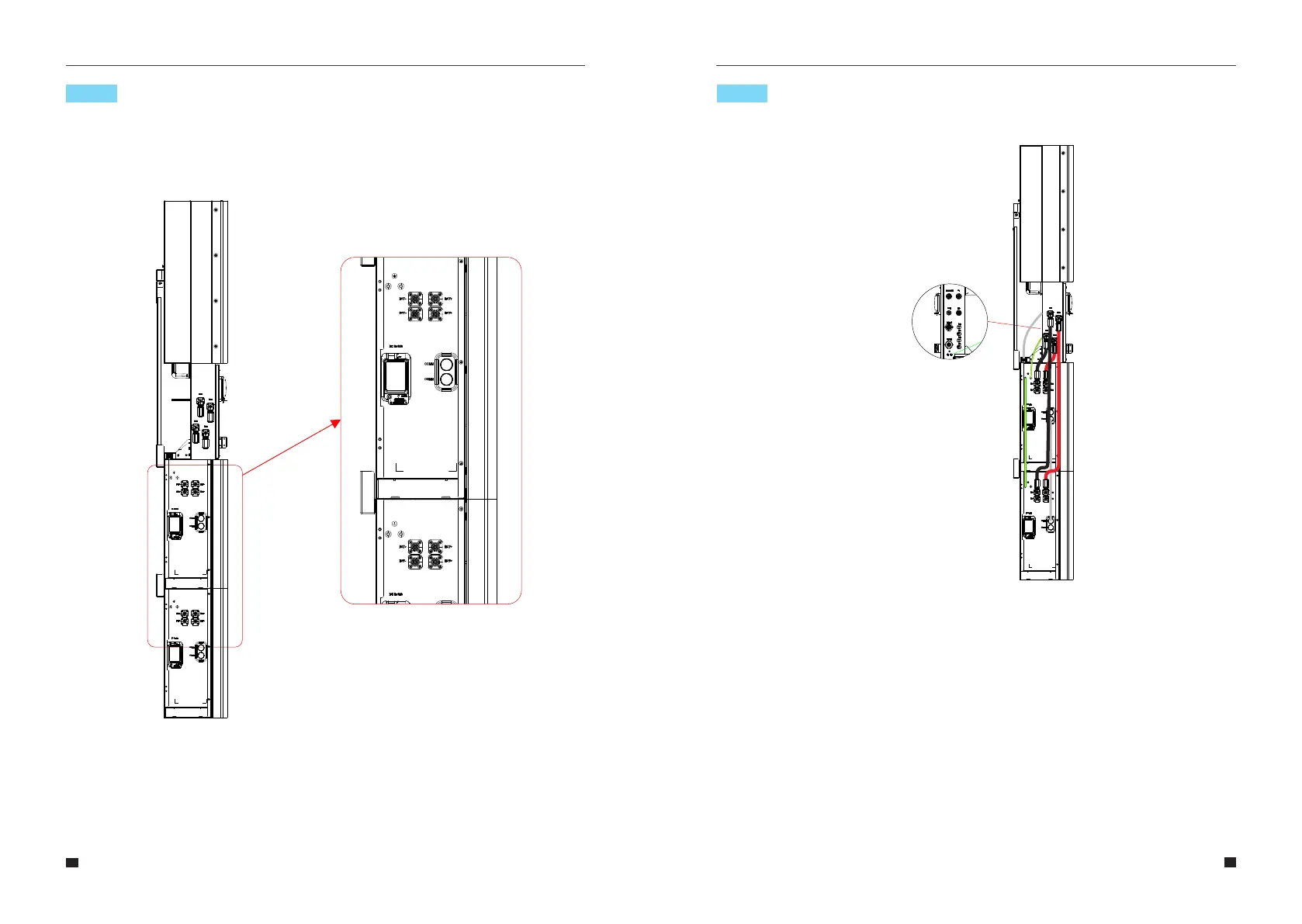

Figure 19 Wiring the Communication Cable
Connect the power cables of the bottom battery from Step 4 to the sideterminals of
the top battery. Make sure that red connects to red and black connects toblack.
Step10
Figure 20 Wiring the Battery Power Cable
