KStar HPM3340 200k User Manual

29

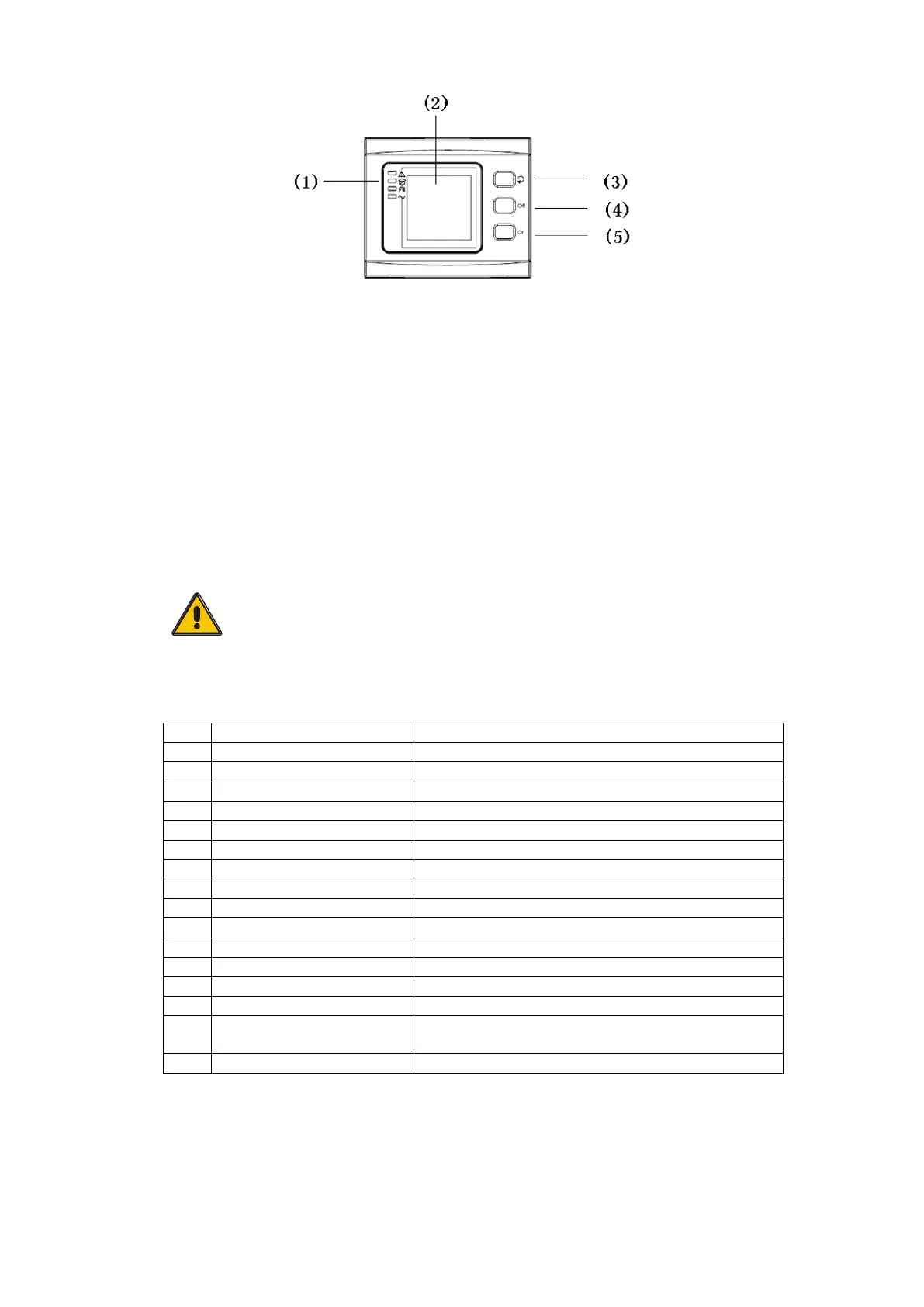

Overview of the operating panel of the UPS
1） LED indicator
2） LCD Display
3） scroll button： enter to next item
4） OFF button：
5） ON button:
Introduction
CAUTION!
The display provides more functions than those described in this
manual.
There are 16 interfaces available in the LCD display:
Item
Interface Description
Content Displayed
01
CODE
Operational status and mode
02
Input A(Input L1)
Voltage & Frequency
03
Input B(Input L2)
Voltage & Frequency
04
Input C(Input L3)
Voltage & Frequency
05
Bat. +
Voltage & Current
06
Bat. -
Voltage & Current
07
Output A(Output L1)
Voltage & Frequency
08
Output B(Output L2)
Voltage & Frequency
09
Output C(Output L3)
Voltage & Frequency
10
Load A
Load
11
Load B
Load
12
Load C
Load
13
Total Load
Load
14
Temperature
Internal temperature and ambient temperature
15
Software version & model
Version of rectifier software, version of inverter
software, model
16
CODE
Alarm Code(Warming Message)
1) When the UPS is connecting with the Utility or Battery at cold start mode, it shows as drawing
below:
