52

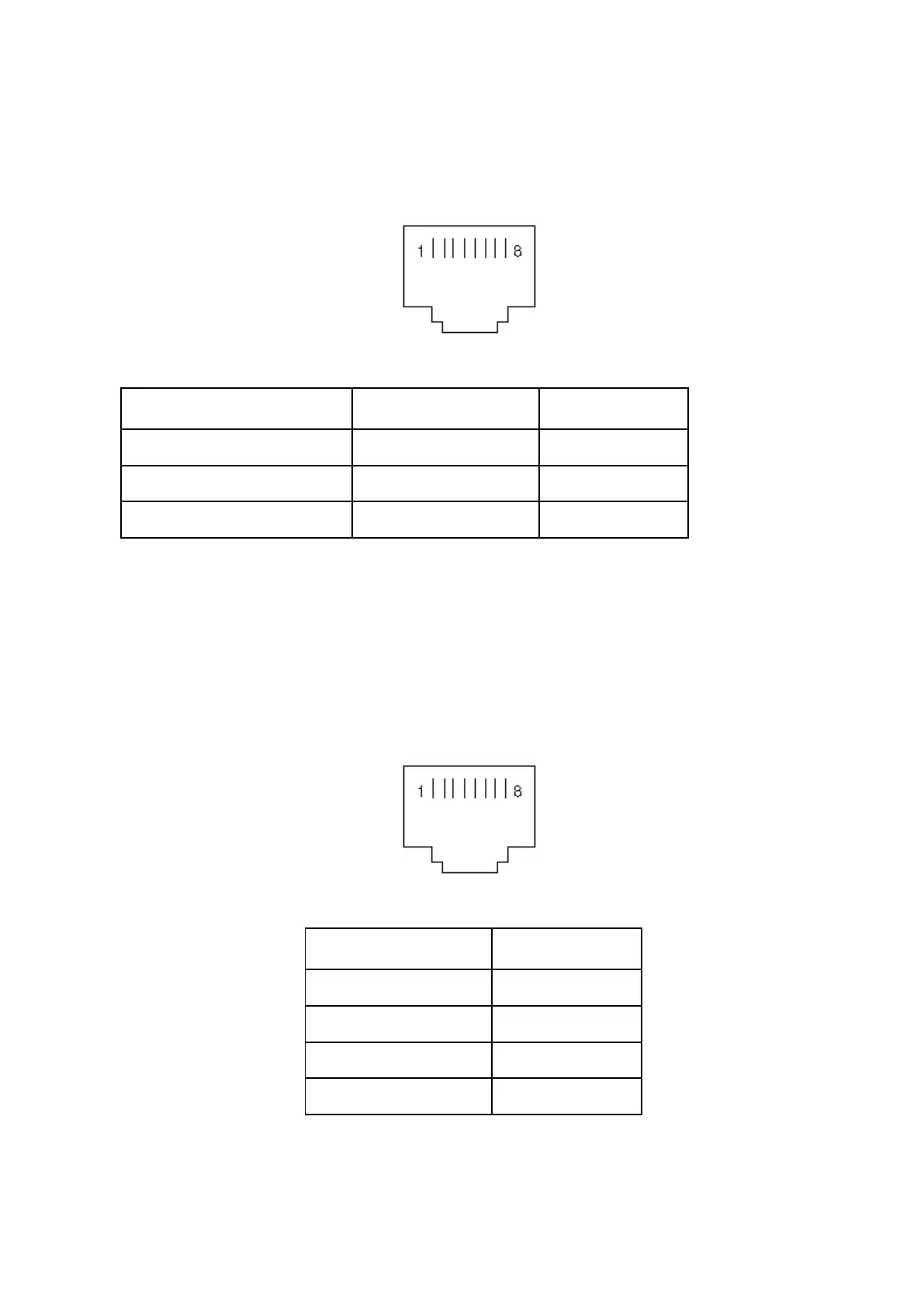

Appendix 6 BAT_T communication port definition
Definition of port：
Connection between the BAT_T box port and UPS2’s BAT_T port.
Temperature sentor（teminal) UPS2 BAT_T（RJ45）
Description
Pin 2 Pin 1/5 BAT_T
Pin 1 Pin 7 12V
Pin 3/4 Pin 8 GND
Available function of BAT_T
◆Battery environment temperature monitoring.
◆Charging voltage modulation depending on batteries’ temperature
Appendix 7 Drycontact port definition
Definition of port：
Drycontact（RJ45）
Description
Pin 1/5 12V
Pin 2/4
DRY_RADER
Pin 7
DRY_GENER
Pin 8
DRY_Fire
