4 DESCRIPTION OF THE MACHINE AND OPERATING PRINCIPLE

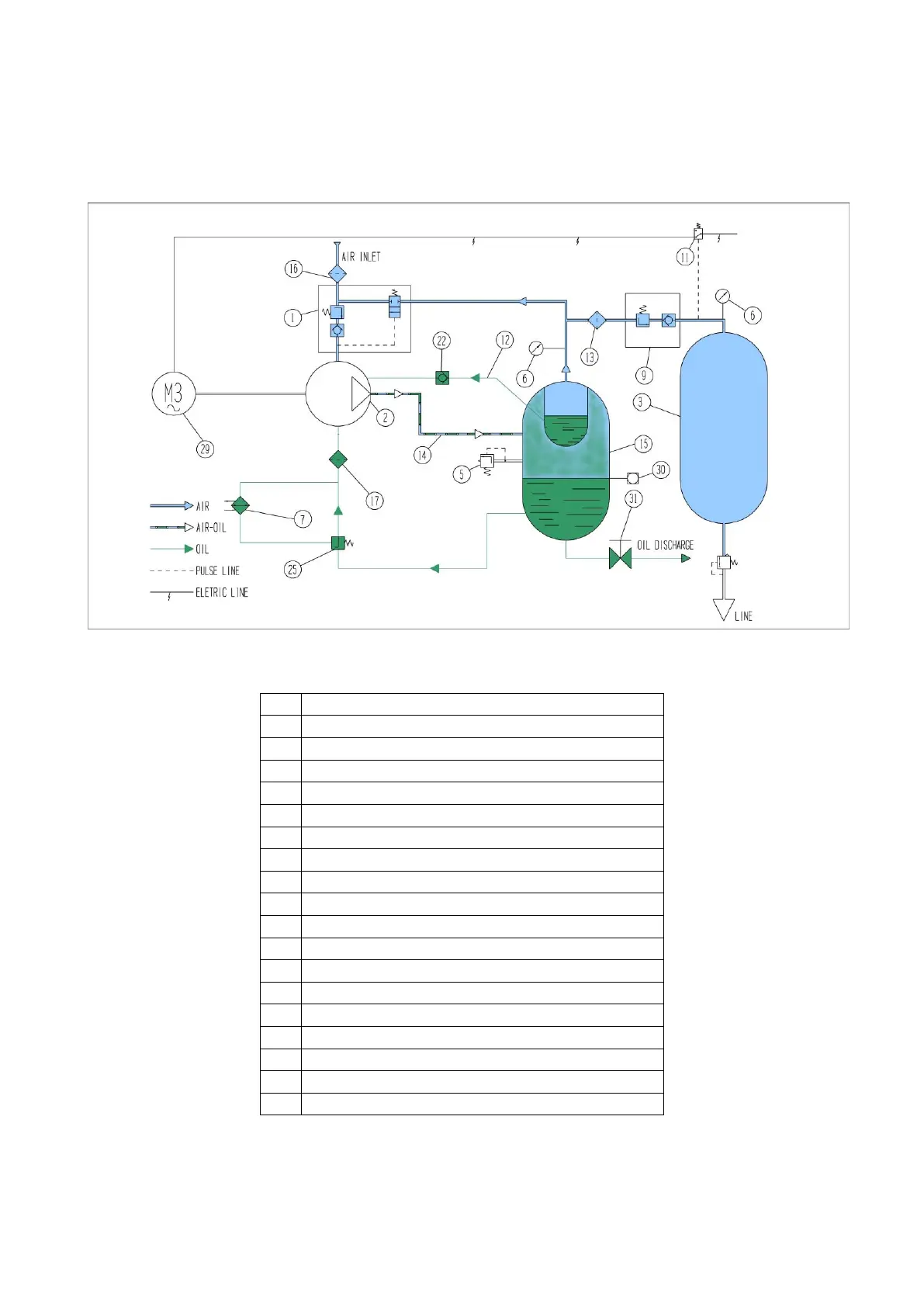

4.1 MACHINE DESCRIPTION
1
Suction valve
2
Screw compressor
3
Air tank (if present)
5
Pressure relief safety valve
6
Manometer
7
Oil radiator
9
Minimum pressure valve
11
Pressure switch / Pressure transmitter
12
Oil return from separator
13
Oil separator filter
14
Air/oil delivery hose from screw assembly
15
Air/oil separator tank
16
Suction filter
17
Oil filter
22
Oil recovery window
25
Thermostatic valve
29
Electric motor
30
Oil level
31
Oil discharge
