OPERATION AND INSTALLATION MANUAL
COD. 091114 ā COMPACK 2 ECO / SPECIAL - REV. 08 - DATE 10/2020 page 46 of 63
9.4 REMOTE CONTROL

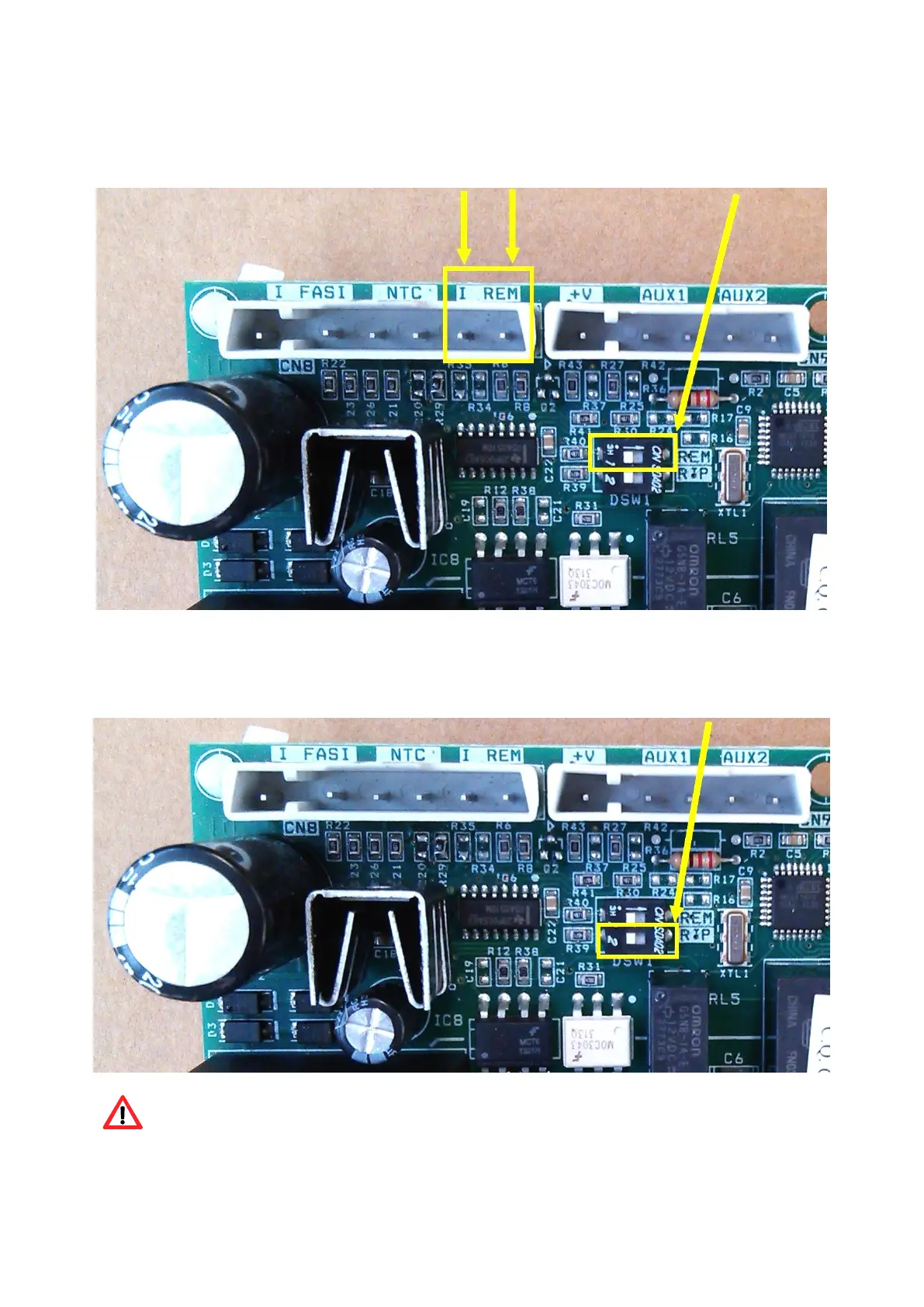

For the remote control of the compressor, activate SWITCH 1 ON and connect your controller to
Pin shown in the picture below:
9.5 AUTOMATIC RESTART
To activate the AUTOMATIC RESTART of compressor, place the SWITCH 2 in the ON position
as shown in the picture below:
ATTENTION
The rules stipulate the need for manual reset of the system in case of arrest for the
absence of voltage. The above-mentioned change is at the discretion of the user,
therefore KTC Srl doesn't accept any responsibility for damage to persons and
property with this type of use.
