KTM 1190 ADVENTURE R User Manual

12 SUSPENSION SETTING 103
S00267-10
–

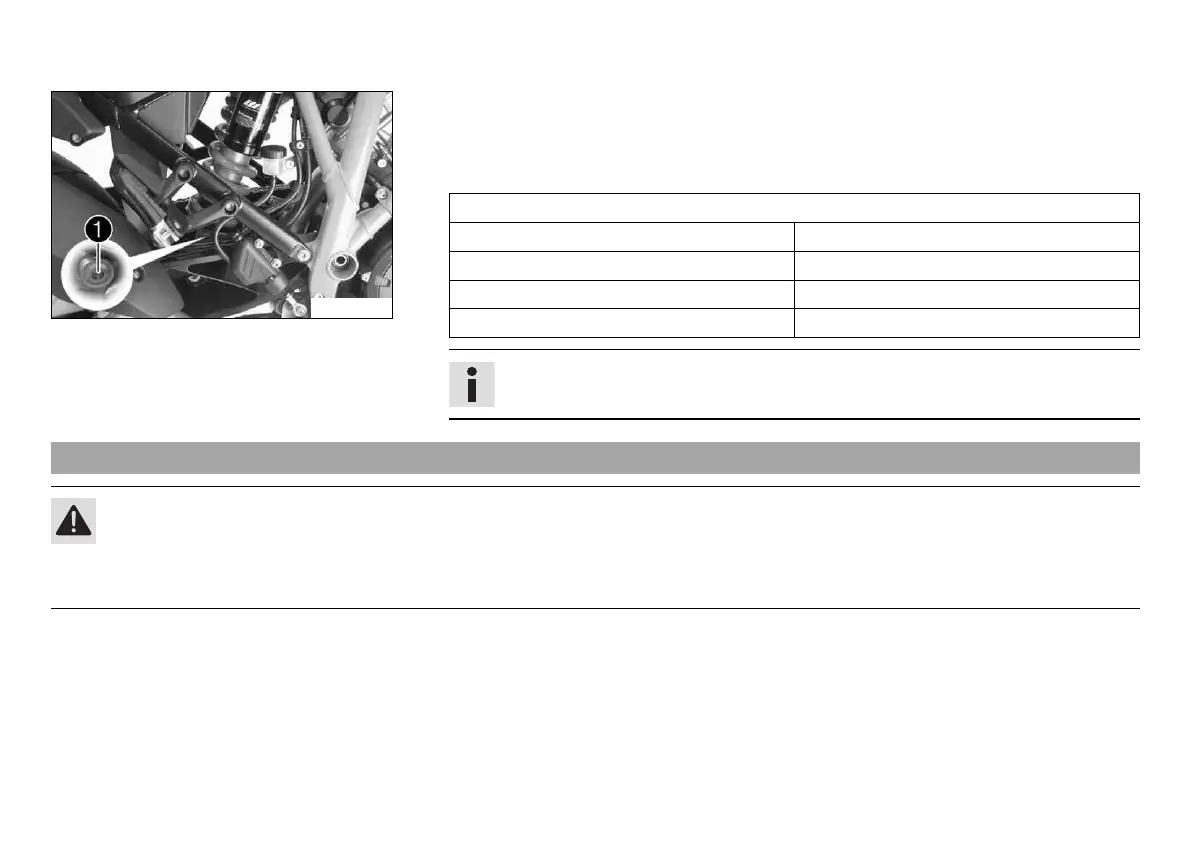

Turn adjusting screw
1
clockwise up to the last perceptible click.
– Turn counterclockwise by the number of clicks corresponding to the shock absorber
type.
Guideline
Rebound damping
Comfort 15 clicks
Standard 10 clicks
Sport 8 clicks
Full payload 8 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damping.
12.9 Adjusting the spring preload of the shock absorber
Caution
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized KTM workshop will
be glad to help.)

KTM 1190 ADVENTURE R Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1195 cc
Bore x Stroke	105 mm x 69 mm
Transmission	6-speed
Fuel Capacity	23 liters
Dry Weight	217 kg
Front Suspension	WP USD Ø 48 mm
Wheelbase	1560 mm
Compression Ratio	12.5:1
Starter	Electric starter
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 3 oil pumps
Primary Drive	40:76
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Suspension Travel Front	220 mm
Suspension Travel Rear	220 mm
Ground Clearance	250 mm
Power	110 kW (150 hp)
Torque	125 Nm
Front Brake	2 x Brembo four-piston, radially mounted caliper, brake disc Ø 320 mm
Rear Brake	Brembo 2-piston caliper, 267 mm disc
ABS	Bosch 9ME Combined-ABS
Seat Height	890 mm (35 in)
Final Drive	Chain
Clutch	PASC (Power Assisted Slipper Clutch), hydraulically operated
