16 ELECTRICAL SYSTEM 166
16.7 Removing the headlight mask with the headlight
Preparatory work
Switch off all power consumers and switch off the engine.
Remove the seat. ( p. 106)
Remove the front side cover. ( p. 118)
Remove the tank cover. ( p. 126)
Remove the mask spoiler. x ( p. 120)
Remove the wind shield. ( p. 129)
S00293-10
Main work

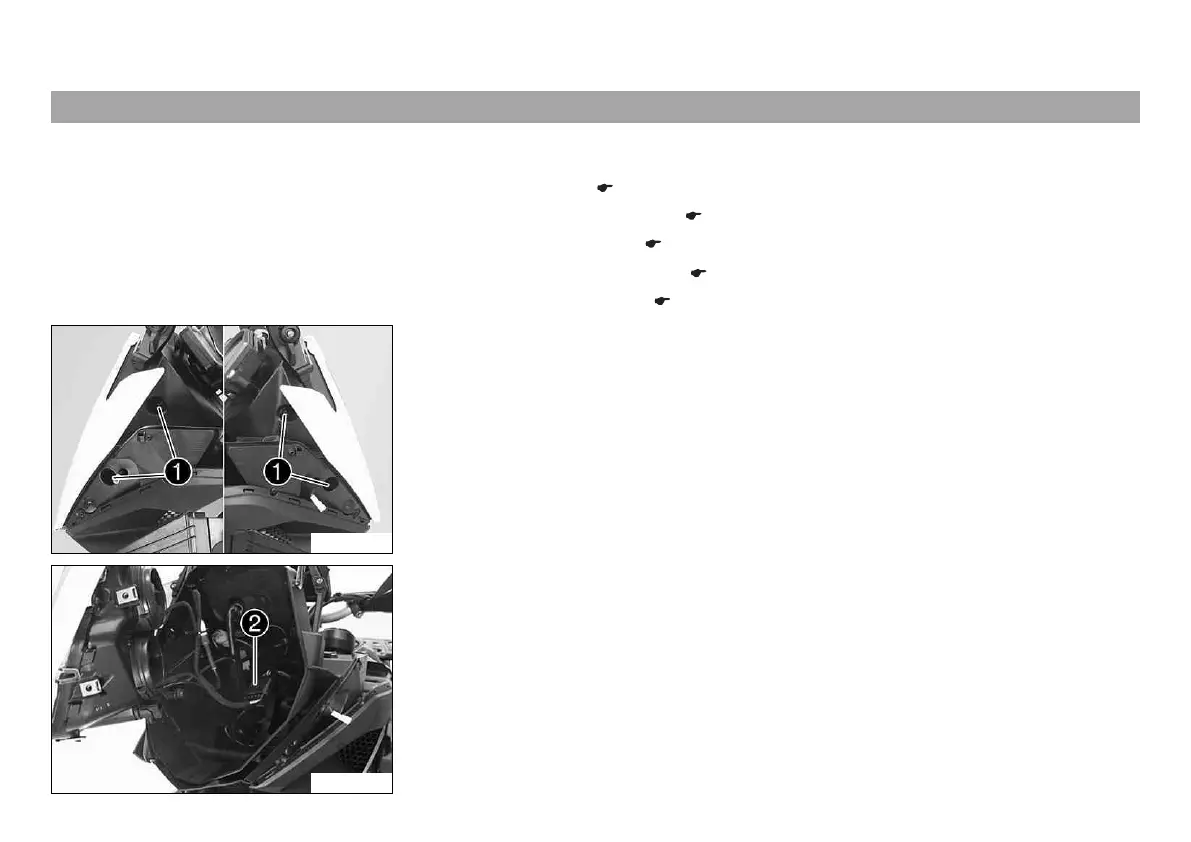

Remove screws
1
.
Remove the headlight mask forward.
S00294-10
Disconnect plug
2
.
Place the headlight mask onto a soft cloth so that the headlight is not damaged.
