KTM 1190 ADVENTURE R User Manual

7 COMBINATION INSTRUMENT 58

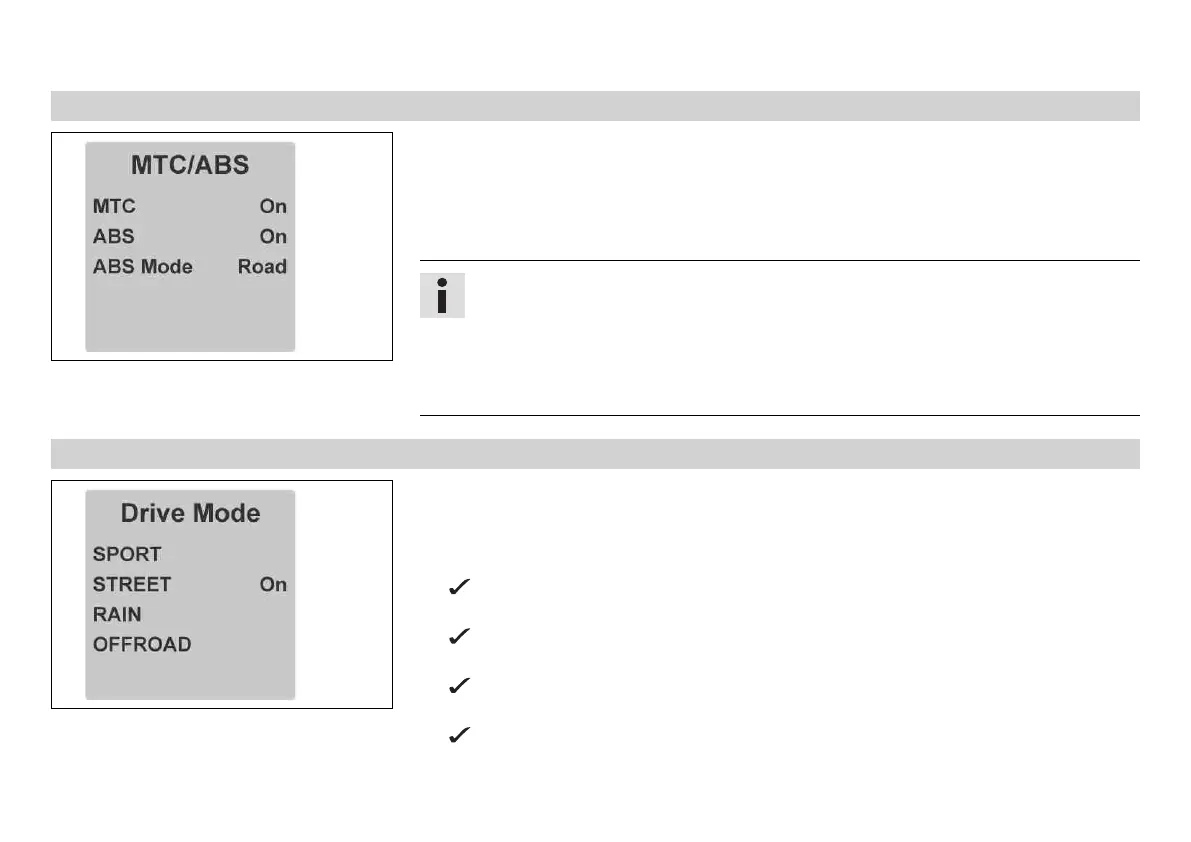

7.9.10 "MTC/ABS"
401837-01
Condition
• The vehicle is stationary.
– Press the UP or DOWN button until the "MTC/ABS" menu appears on the matrix display.
In the "MTC/ABS" menu, "MTC" and "ABS" can be switched off.
In "ABS mode", a choice can be made between "Road" and "Offroad".
Info
After the ignition is switched on, traction control and ABS are enabled again.
When the "Offroad" ABS mode is enabled, ABS only controls the front wheel. The
rear wheel is not controlled by ABS and may block during braking maneuvers.
When the "Road" ABS mode is enabled, the brakes are also applied to the rear wheel
when the front brake is activated. ABS can intervene on both wheels.
7.9.11 "Drive Mode"
401829-01
– Press the UP or DOWN button until the "Drive Mode" menu appears on the matrix display.
Pressing the SET button opens the menu.
– Use the UP or DOWN button to navigate through the menu. The SET button can be used
to select engine and traction control settings that are coordinated with each other.
SPORT – homologated performance with very direct response; the traction control
allows greater slip on the rear wheel
STREET – homologated performance with very direct response; the traction control
allows normal slip on the rear wheel
RAIN – reduced homologated performance for better ridability; the traction control
allows normal slip on the rear wheel
OFFROAD – reduced homologated performance for better ridability; the traction
control allows high slip on the rear wheel

KTM 1190 ADVENTURE R Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1195 cc
Bore x Stroke	105 mm x 69 mm
Transmission	6-speed
Fuel Capacity	23 liters
Dry Weight	217 kg
Front Suspension	WP USD Ø 48 mm
Wheelbase	1560 mm
Compression Ratio	12.5:1
Starter	Electric starter
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 3 oil pumps
Primary Drive	40:76
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Suspension Travel Front	220 mm
Suspension Travel Rear	220 mm
Ground Clearance	250 mm
Power	110 kW (150 hp)
Torque	125 Nm
Front Brake	2 x Brembo four-piston, radially mounted caliper, brake disc Ø 320 mm
Rear Brake	Brembo 2-piston caliper, 267 mm disc
ABS	Bosch 9ME Combined-ABS
Seat Height	890 mm (35 in)
Final Drive	Chain
Clutch	PASC (Power Assisted Slipper Clutch), hydraulically operated
