KTM 1190 ADVENTURE R User Manual

15 WHEELS, TIRES 149

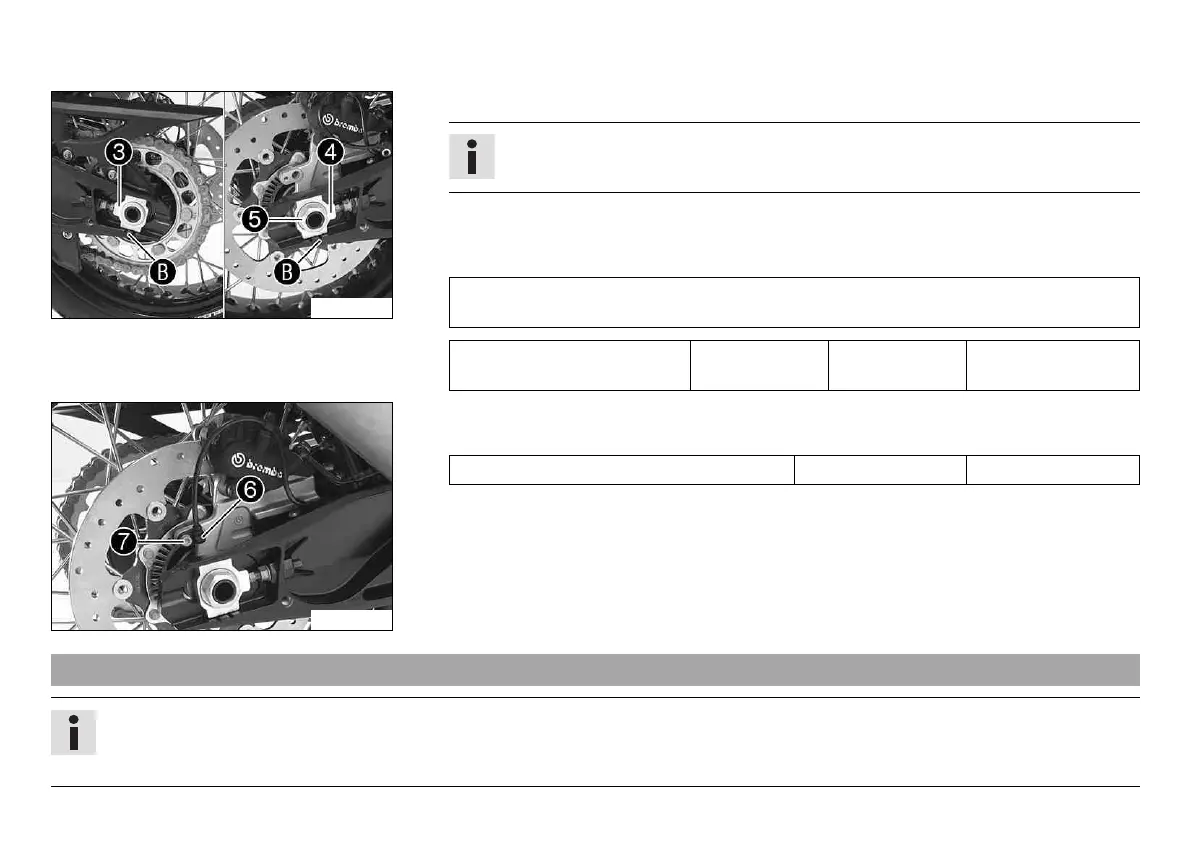

S00288-10
–
Push the wheel spindle in all the way and mount chain adjuster
4
and nut
5
.
Info
Mount chain adjusters
3
and
4
in the same position.
– Push the rear wheel forward so that the chain adjusters are in contact with the tension-
ing screws, and tighten nut
5
.
Guideline
In order for the rear wheel to be correctly aligned, the markings on the left and right
chain adjusters must be in the same position relative to the reference marks
B
.
Nut, rear wheel spindle M25x1.5 90 Nm
(66.4 lbf ft)
Thread greased
S00289-10
–
Insert wheel speed sensor
6
into the hole. Mount and tighten screw
7
.
Guideline
Remaining chassis screws M6 10 Nm (7.4 lbf ft)
– Operate the foot brake lever repeatedly until the brake linings are in contact with the
brake disc and there is a pressure point.
15.5 Checking the rear hub rubber dampers x
Info
The engine power is transmitted from the rear sprocket to the rear wheel via 6 rubber dampers. The rubber dampers wear out dur-
ing operation. If the rubber dampers are not changed in time, the rear sprocket carrier and the rear hub will be damaged.

KTM 1190 ADVENTURE R Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1195 cc
Bore x Stroke	105 mm x 69 mm
Transmission	6-speed
Fuel Capacity	23 liters
Dry Weight	217 kg
Front Suspension	WP USD Ø 48 mm
Wheelbase	1560 mm
Compression Ratio	12.5:1
Starter	Electric starter
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 3 oil pumps
Primary Drive	40:76
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Suspension Travel Front	220 mm
Suspension Travel Rear	220 mm
Ground Clearance	250 mm
Power	110 kW (150 hp)
Torque	125 Nm
Front Brake	2 x Brembo four-piston, radially mounted caliper, brake disc Ø 320 mm
Rear Brake	Brembo 2-piston caliper, 267 mm disc
ABS	Bosch 9ME Combined-ABS
Seat Height	890 mm (35 in)
Final Drive	Chain
Clutch	PASC (Power Assisted Slipper Clutch), hydraulically operated
