KTM 1190 ADVENTURE R User Manual

15 WHEELS, TIRES 150
Preparatory work
– Raise the vehicle with the center stand. ( p. 105)
–
Remove the rear wheel. x ( p. 145)
S00290-10
Main work
–

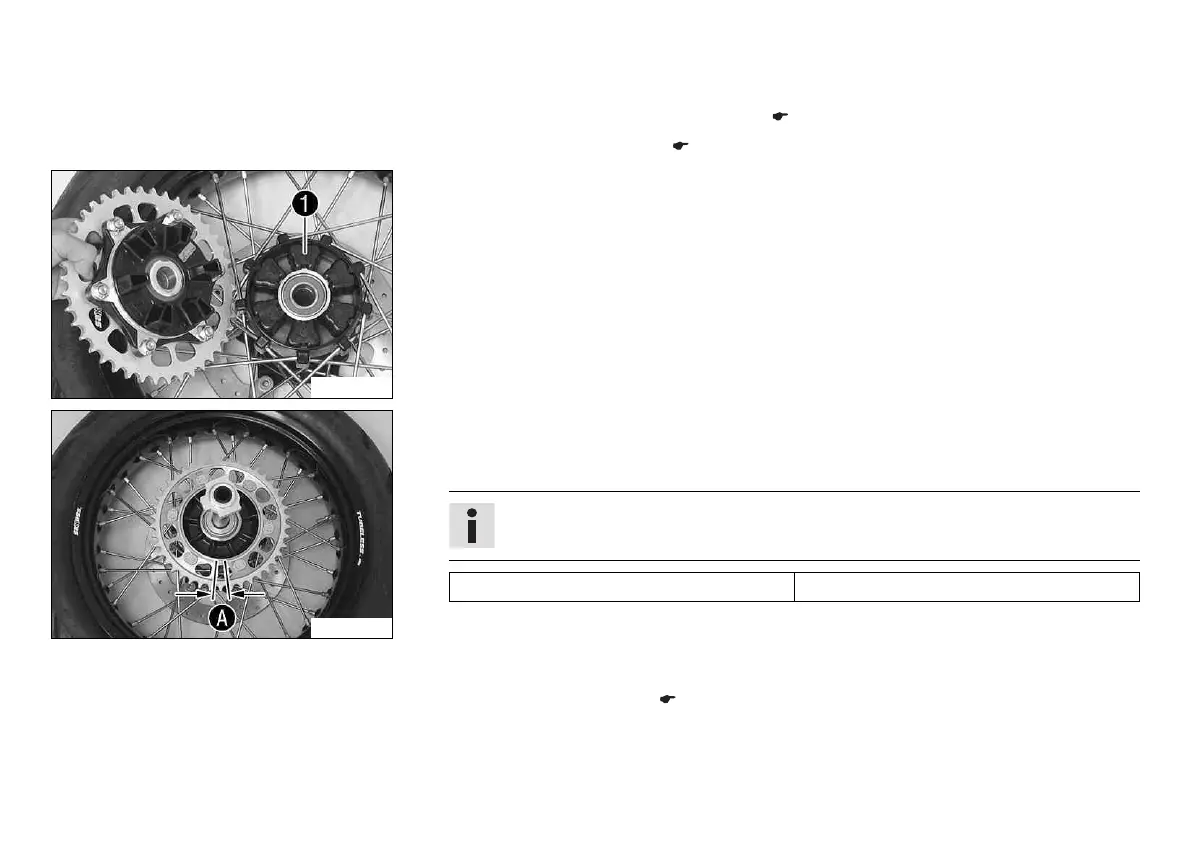

Check the rubber dampers
1
of the rear hub for damage and wear.
» If the rubber dampers of the rear hub are damaged or worn:
– Change all rubber dampers in the rear hub.
S00291-10
– Lay the rear wheel on a workbench with the rear sprocket facing upwards and insert the
wheel spindle in the hub.
–
Check the rear sprocket play
A
.
Info
Measure the play on the outside of the rear sprocket.
Play in rubber dampers, rear wheel ≤ 5 mm (≤ 0.2 in)
»
If clearance
A
larger than the specified value:
– Change all rubber dampers in the rear hub.
Finishing work
–
Install the rear wheel. x ( p. 147)

KTM 1190 ADVENTURE R Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1195 cc
Bore x Stroke	105 mm x 69 mm
Transmission	6-speed
Fuel Capacity	23 liters
Dry Weight	217 kg
Front Suspension	WP USD Ø 48 mm
Wheelbase	1560 mm
Compression Ratio	12.5:1
Starter	Electric starter
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 3 oil pumps
Primary Drive	40:76
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Suspension Travel Front	220 mm
Suspension Travel Rear	220 mm
Ground Clearance	250 mm
Power	110 kW (150 hp)
Torque	125 Nm
Front Brake	2 x Brembo four-piston, radially mounted caliper, brake disc Ø 320 mm
Rear Brake	Brembo 2-piston caliper, 267 mm disc
ABS	Bosch 9ME Combined-ABS
Seat Height	890 mm (35 in)
Final Drive	Chain
Clutch	PASC (Power Assisted Slipper Clutch), hydraulically operated
