KTM 1190 ADVENTURE R

To Next Page

To Previous Page

13 SERVICE WORK ON THE CHASSIS 121

307823-10

Main work

–

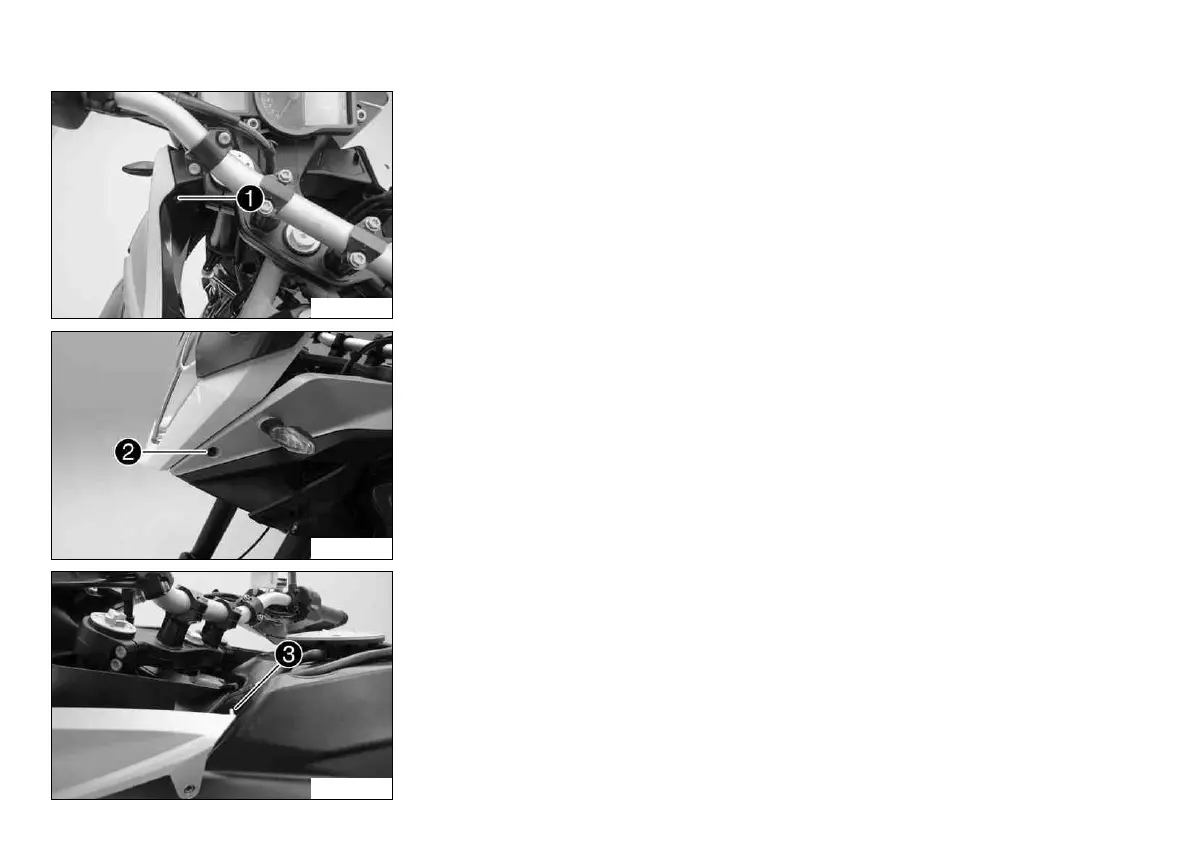

Remove screw

307824-10

–

Remove screw

307825-10

–

Loosen holding lug

from the inside cover.
