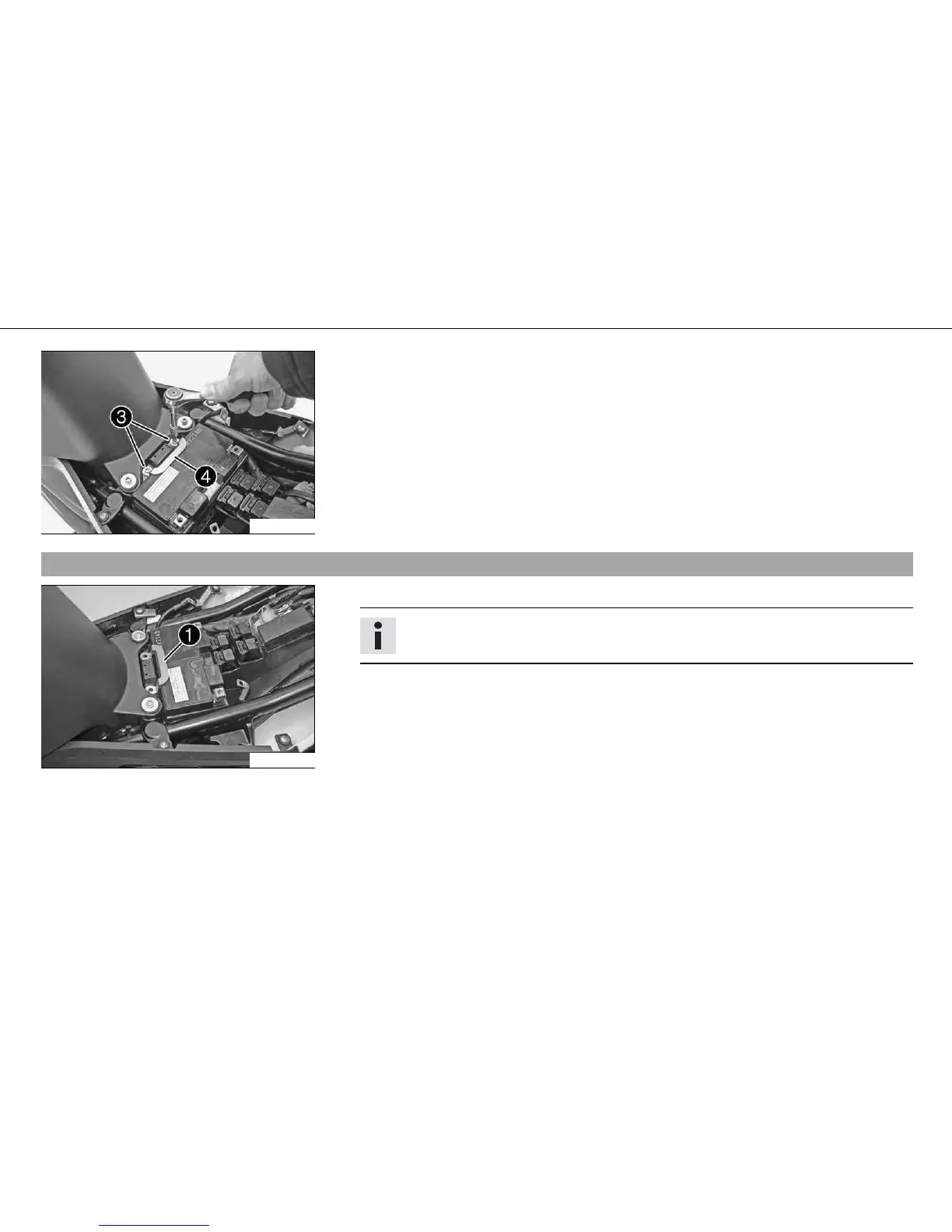

MAINTENANCE WORK ON FRAME AND ENGINE 152

100736-10

– Remove screws .

– Removing the securing bracket .

– Pull battery up and out of the battery rack.

9.56Installing the battery x

100737-10

– Position the battery in the battery rack.

Info

The poles of the battery must face the rear of the vehicle.

– Position the bracket .
