12 SUSPENSION SETTING 117
12.6 Adjusting the high-speed compression damping of the shock absorber
Caution
Risk of injury Parts of the shock absorber will fly off if the shock absorber is disassembled incorrectly.
The shock absorber is filled with highly compressed nitrogen.
– Please follow the description provided. (Your authorized KTM workshop will be glad to help.)
Info
The effect of the high-speed setting can be seen in fast compression of the shock absorber.
E00700-10
–

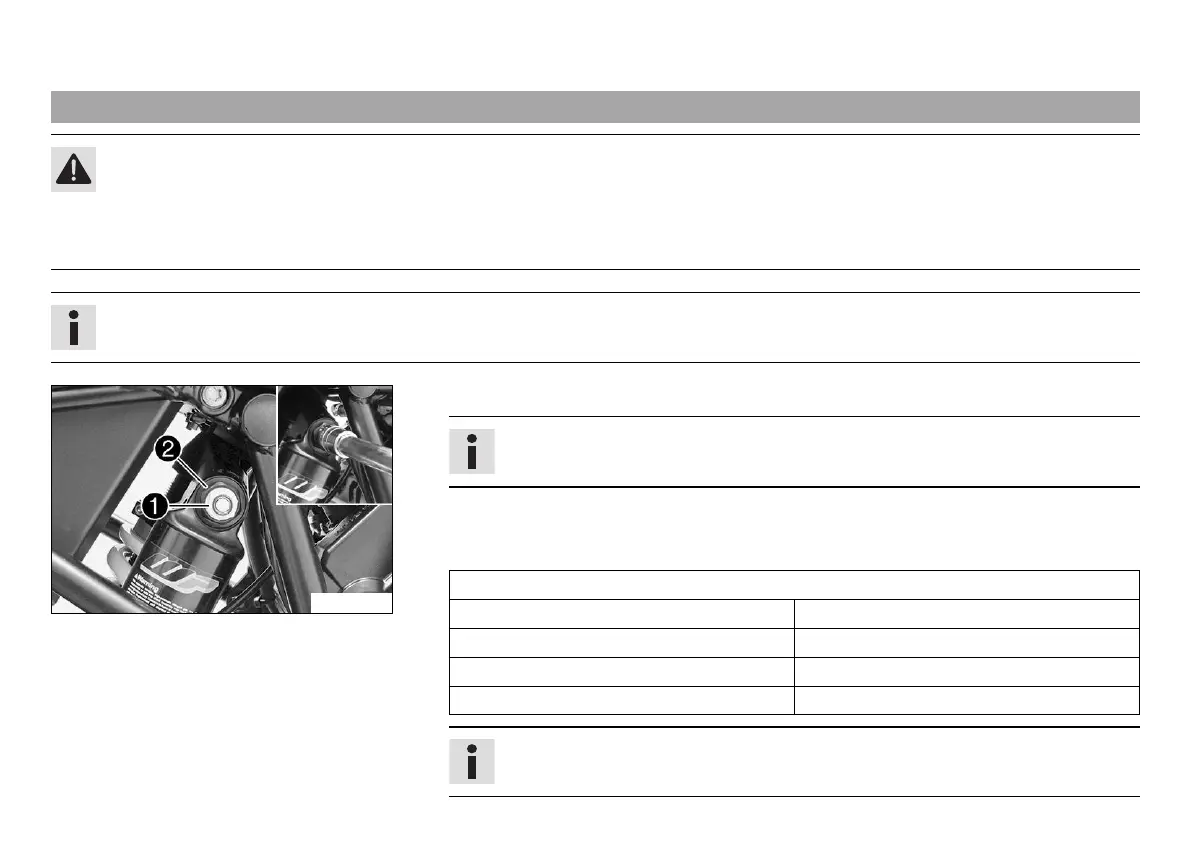

Turn adjusting screw
1
all the way clockwise with a socket wrench.
Info
Do not loosen fitting
2
!
– Turn counterclockwise by the number of turns corresponding to the shock absorber
type.
Guideline
Compression damping, high-speed
Comfort 1.5 turns
Standard 1.5 turns
Sport 1.5 turns
Full payload 1 turn
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damping.
