8 ERGONOMICS 66

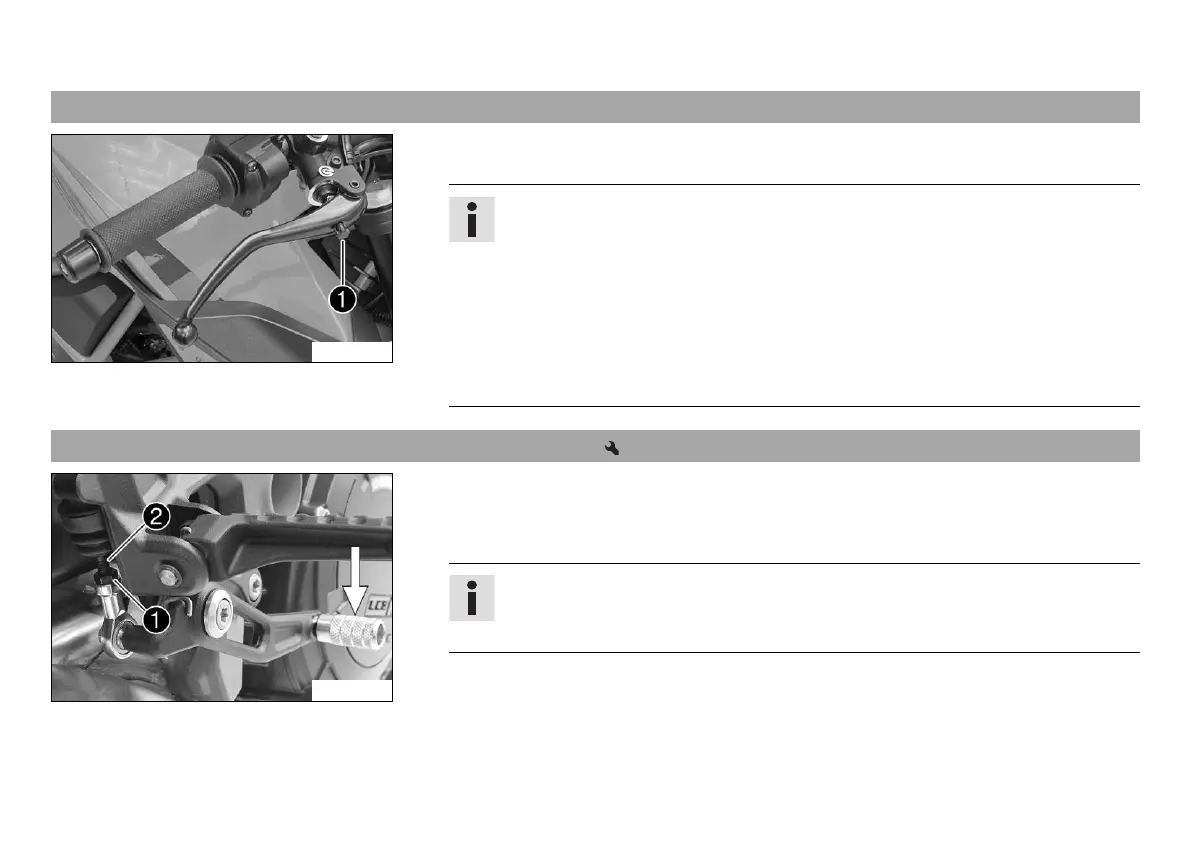

8.4 Adjusting the basic position of the hand brake lever
L01415-10
– Adjust the basic position of the hand brake lever to your hand size by turning adjusting
wheel
.
Info
Turn the adjusting screw clockwise to increase the distance between the hand
brake lever and the handlebar.
Turn the adjusting screw counterclockwise to decrease the distance between the
hand brake lever and the handlebar.
The range of adjustment is limited.
Turn the adjusting screw by hand only, and do not apply any force.
Push the hand brake lever forward and turn the adjusting wheel.
Do not make any adjustments while riding.
8.5 Adjusting the basic position of the foot brake lever
L01443-10
–
Loosen nut
.
–
Press the foot brake lever down to be able to turn push rod
more easily.
– Turn the push rod until the foot brake lever is in the desired position.
Info
The range of adjustment is limited.
The screw must be screwed into the ball joint by at least five turns.
–
Lock nut
.
