12 SUSPENSION SETTING 89
12.1 Fork/shock absorber

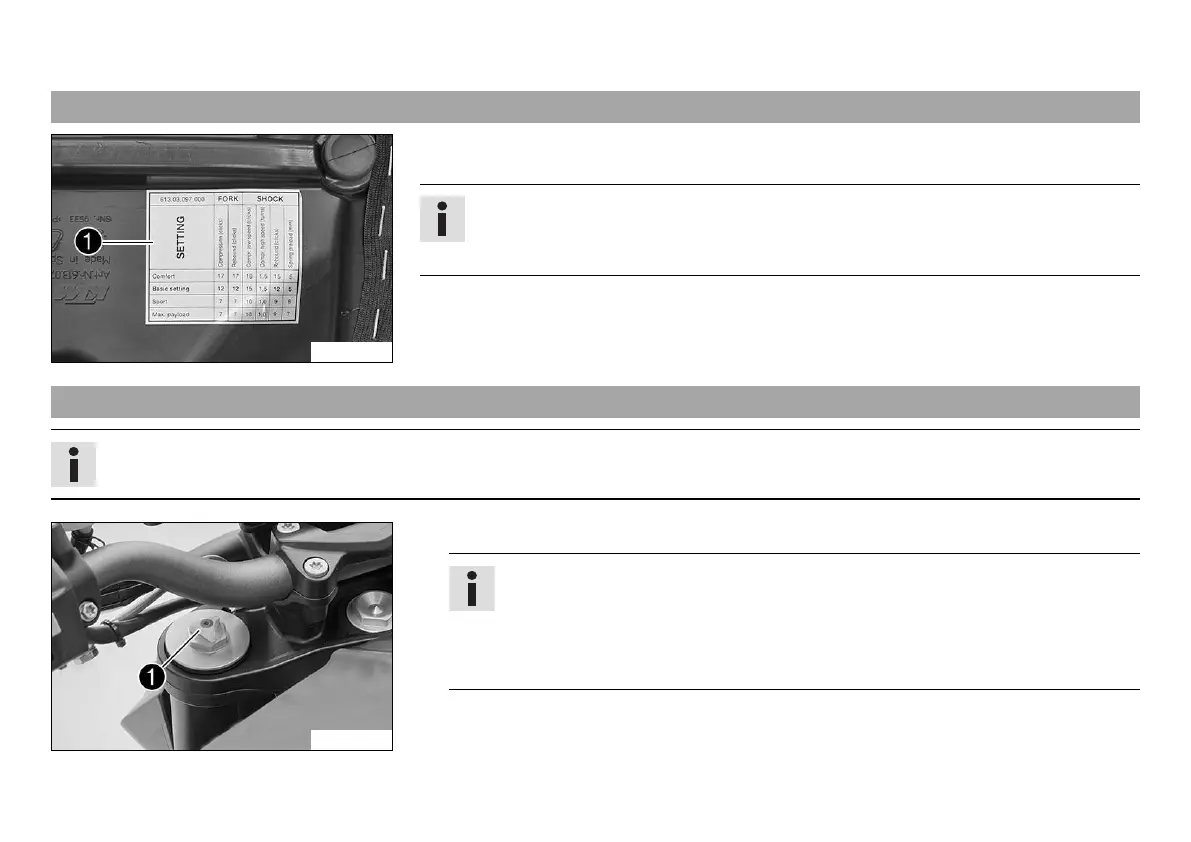

500347-10
The fork and the shock absorber offer many options of adapting the suspension to the riding
style and the payload.
Info
The recommendations for the suspension setting are shown in Table
. The table
is located on the underside of the front rider's seat.
These adjustments are guidelines and should always be the basis for a suspension setting.
If the guidelines are not adhered to, the riding characteristics could deteriorate, particularly
at high speeds.
12.2 Adjusting the compression damping of the fork
Info
The hydraulic compression damping determines the fork suspension behavior.
500310-10
–
Turn the white adjusting screw
all the way clockwise.
Info
Adjusting screw
is located at the upper end of the left fork leg.
The compression damping is located in the left fork leg COMP (white adjusting
screw). The rebound damping is located in the right fork leg REB (red adjusting
screw).
– Turn counterclockwise by the number of clicks corresponding to the fork type.
